Transmission Reassembly: Notes

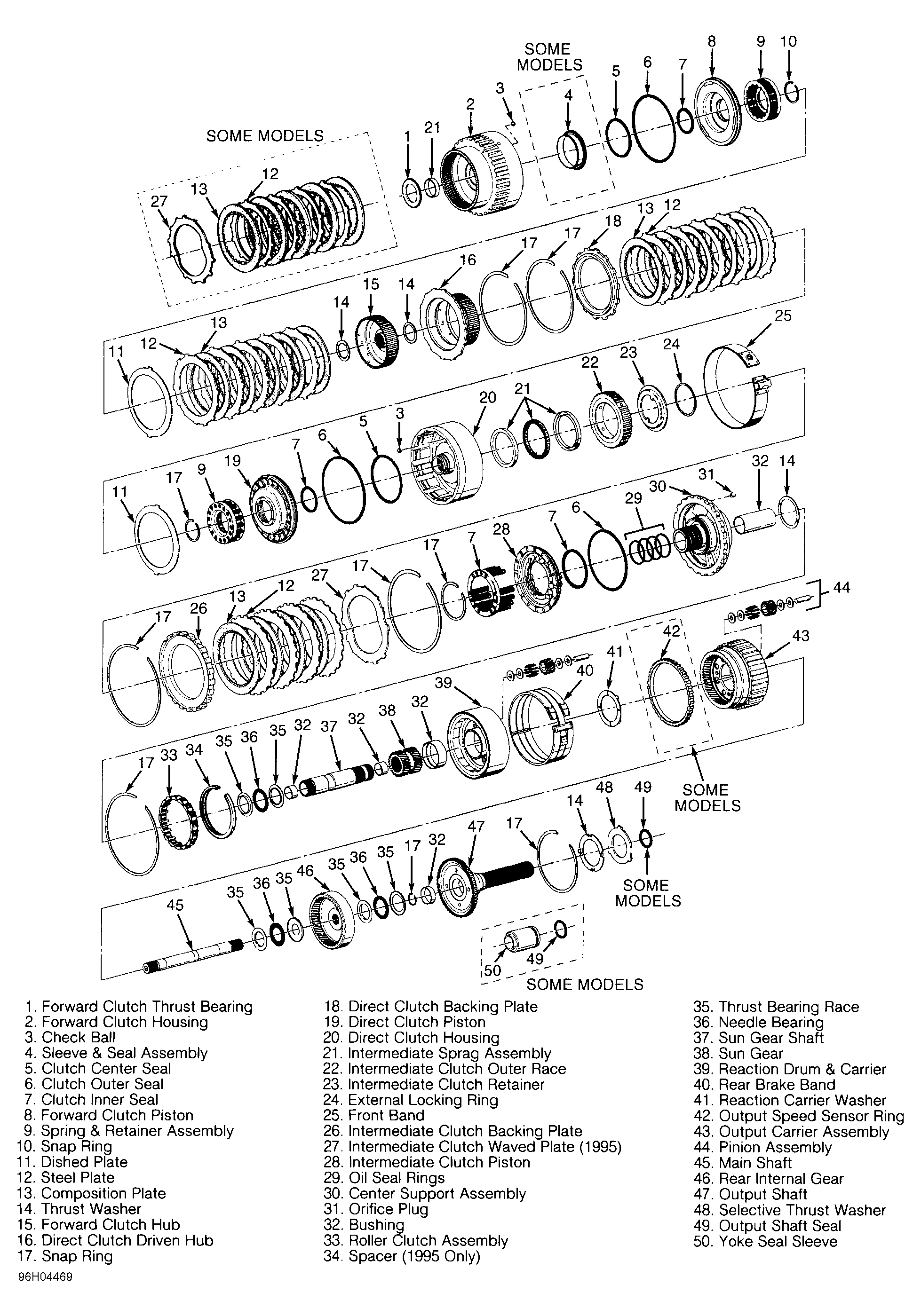

NOTE: All selective thrust washer measurements taken during disassembly must be rechecked at appropriate reassembly stage. See Figure for exploded view of internal transmission components. See Figure for lip seal location and installation direction.
