Lower Transmission Assembly

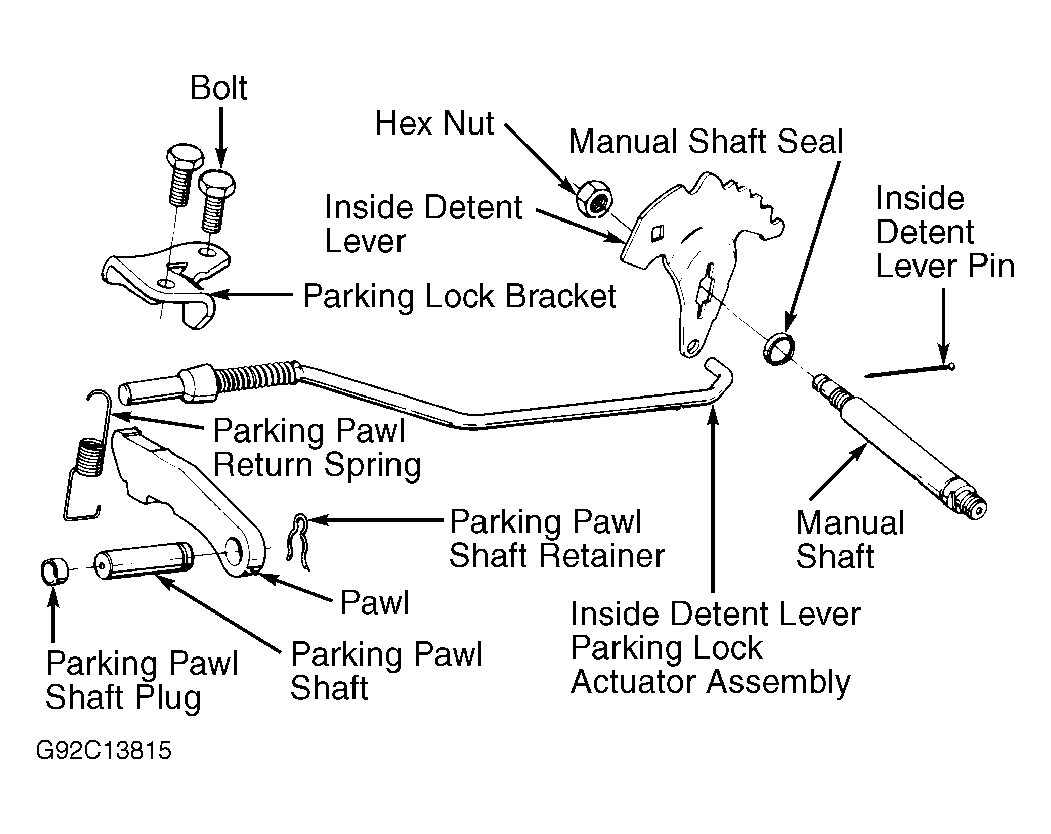

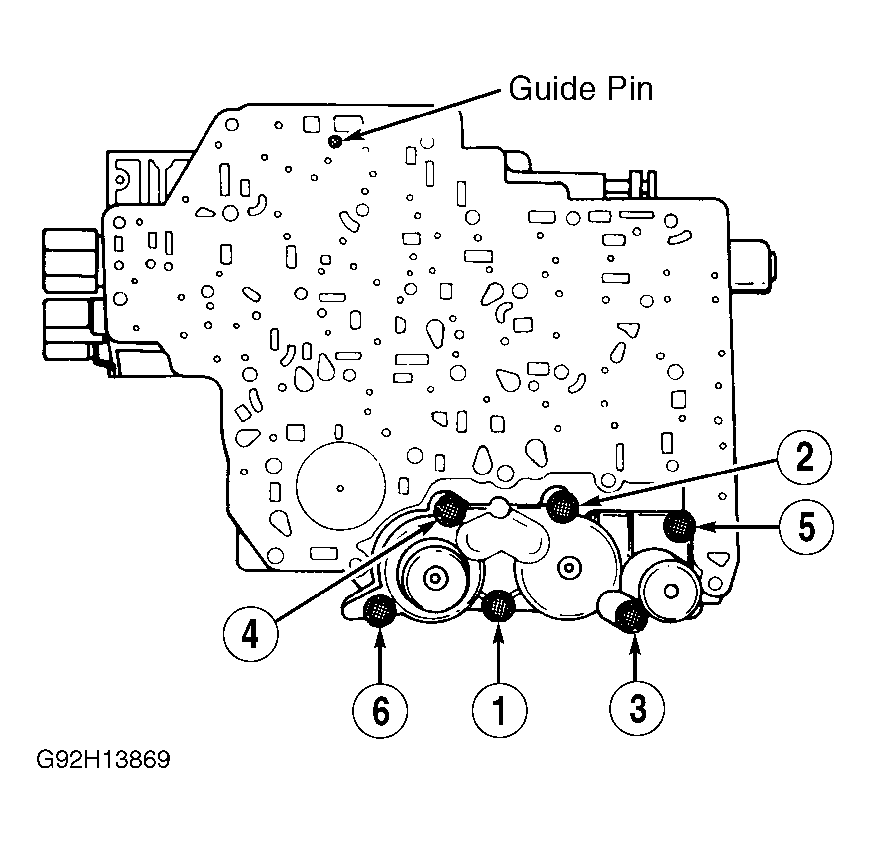

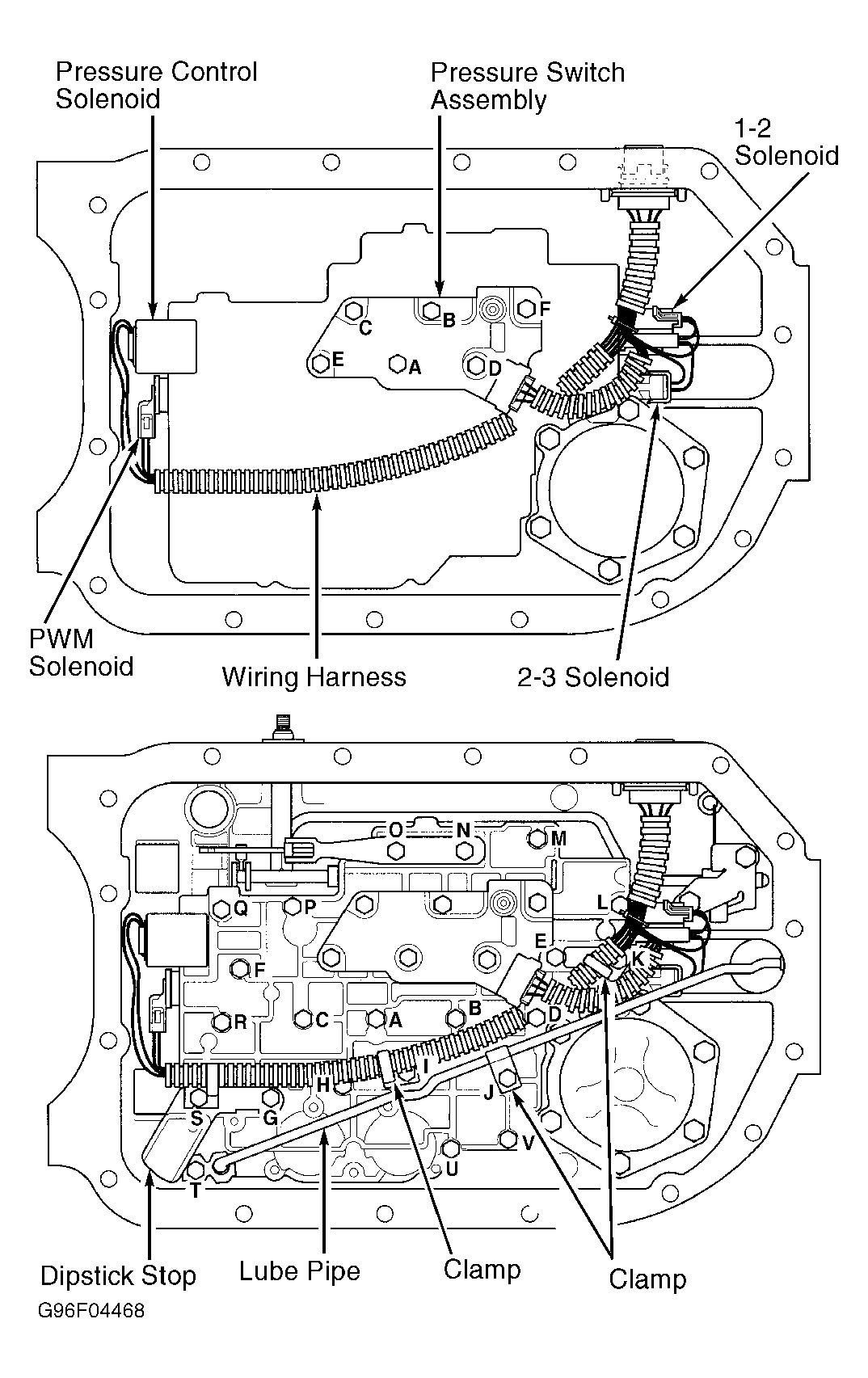

Install parking pawl and manual linkage. See Figure. Install check balls in case. Check ball No. 2 is only used in models RKL, RLP and ZJP. See Figure. Assemble and install accumulator assembly. See Figure. Tighten accumulator assembly bolts in sequence. See Figure. Install valve body assembly. Install lube pipe and wiring harness. See Figure. Install oil pan and oil filter.
