Overdrive Assembly & 4TH Clutch

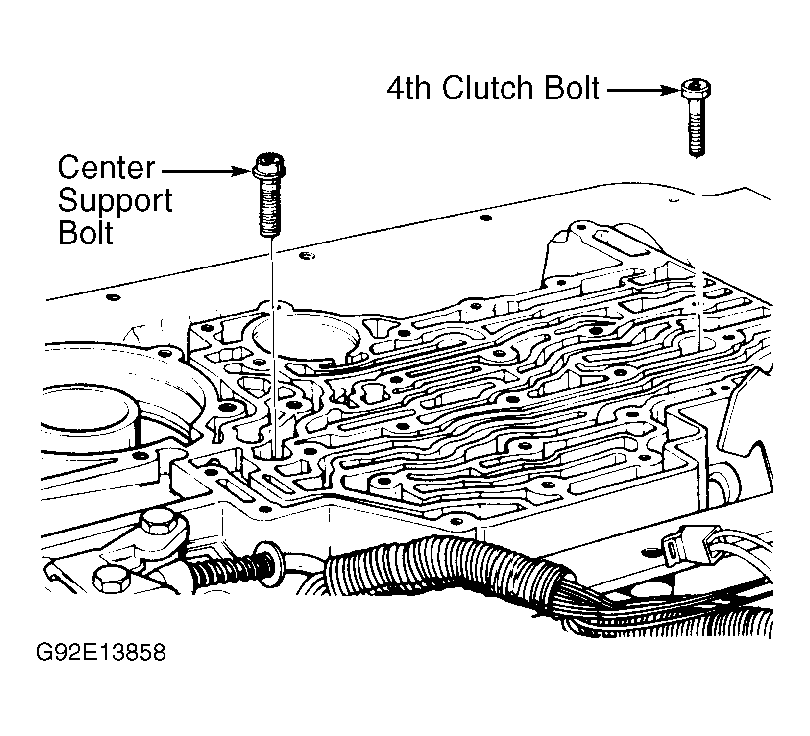

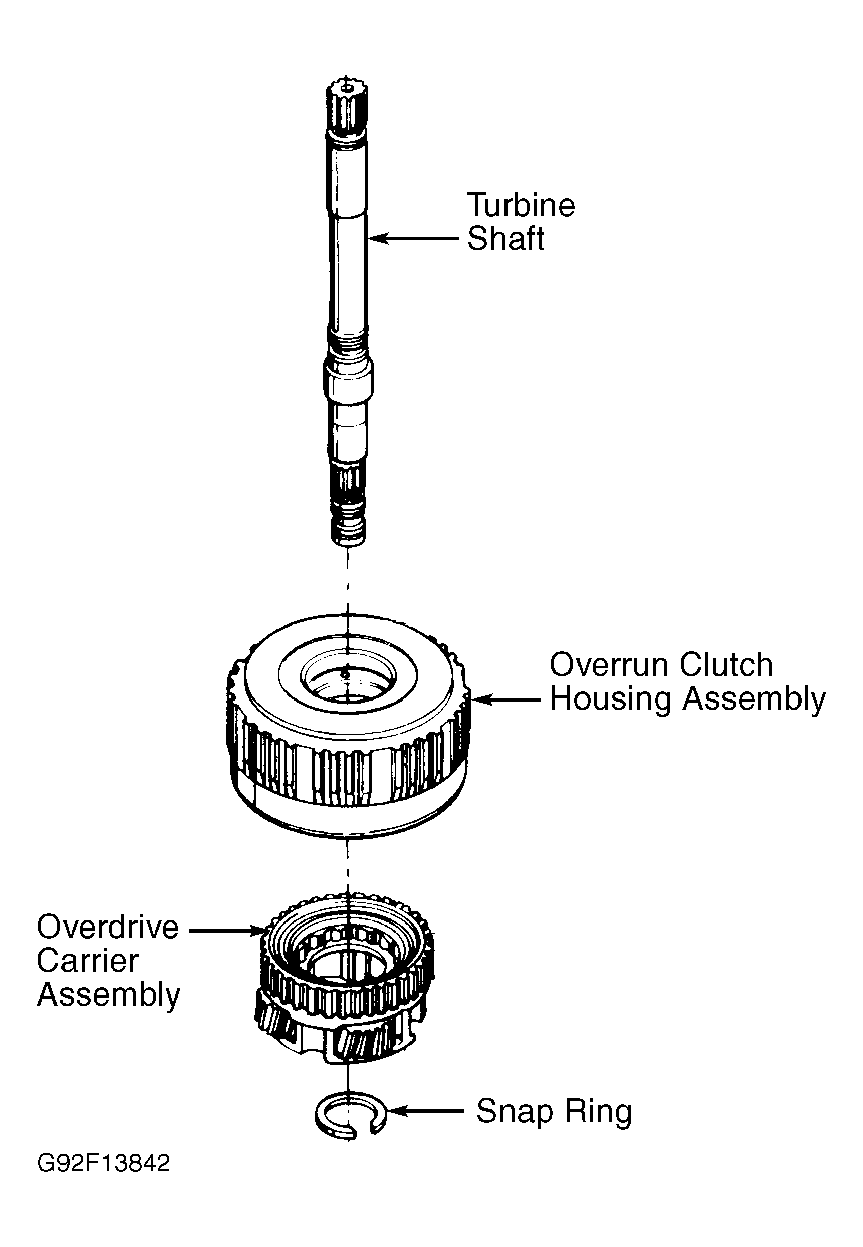

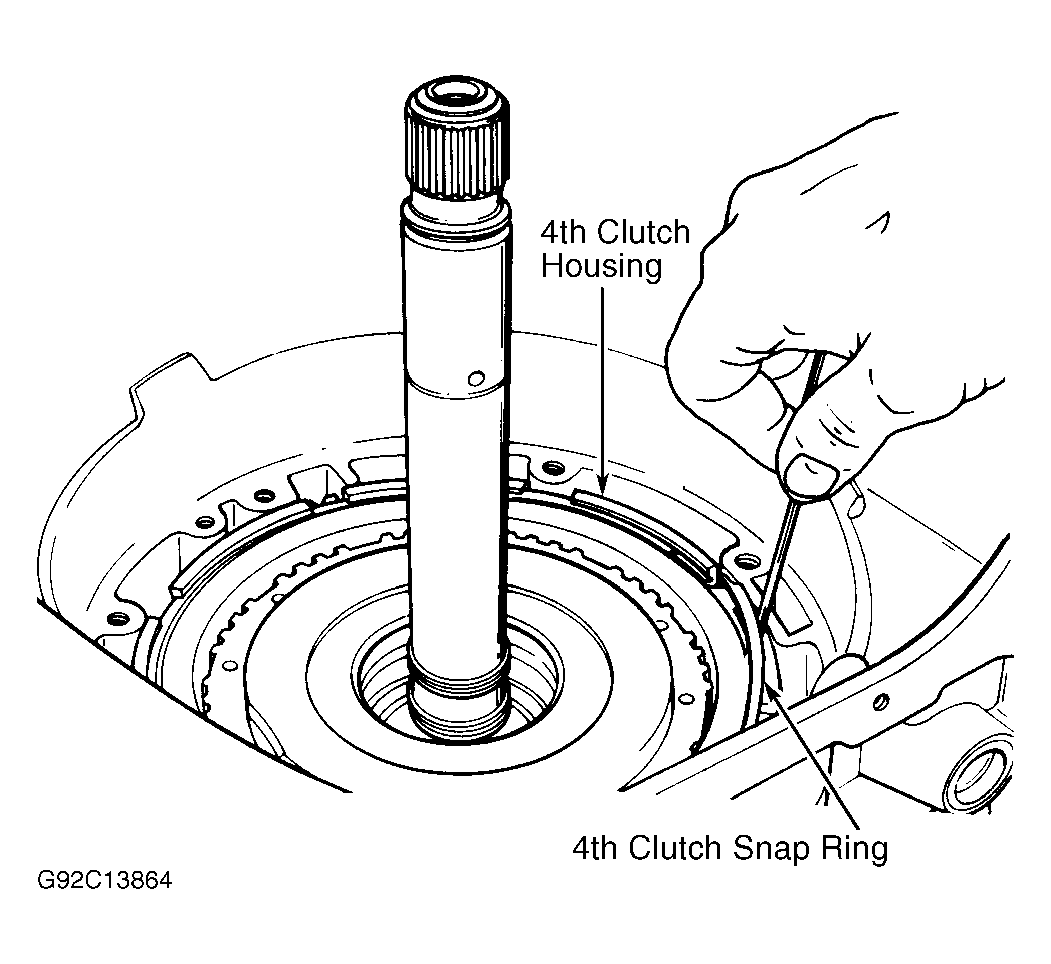

Remove turbine shaft and overdrive assembly. See Figure. Using 40T Torx wrench, remove 4th clutch support bolt and discard. See Figure. Remove 4th clutch snap ring and assembly. See Figure.
