Forward & Direct Clutch

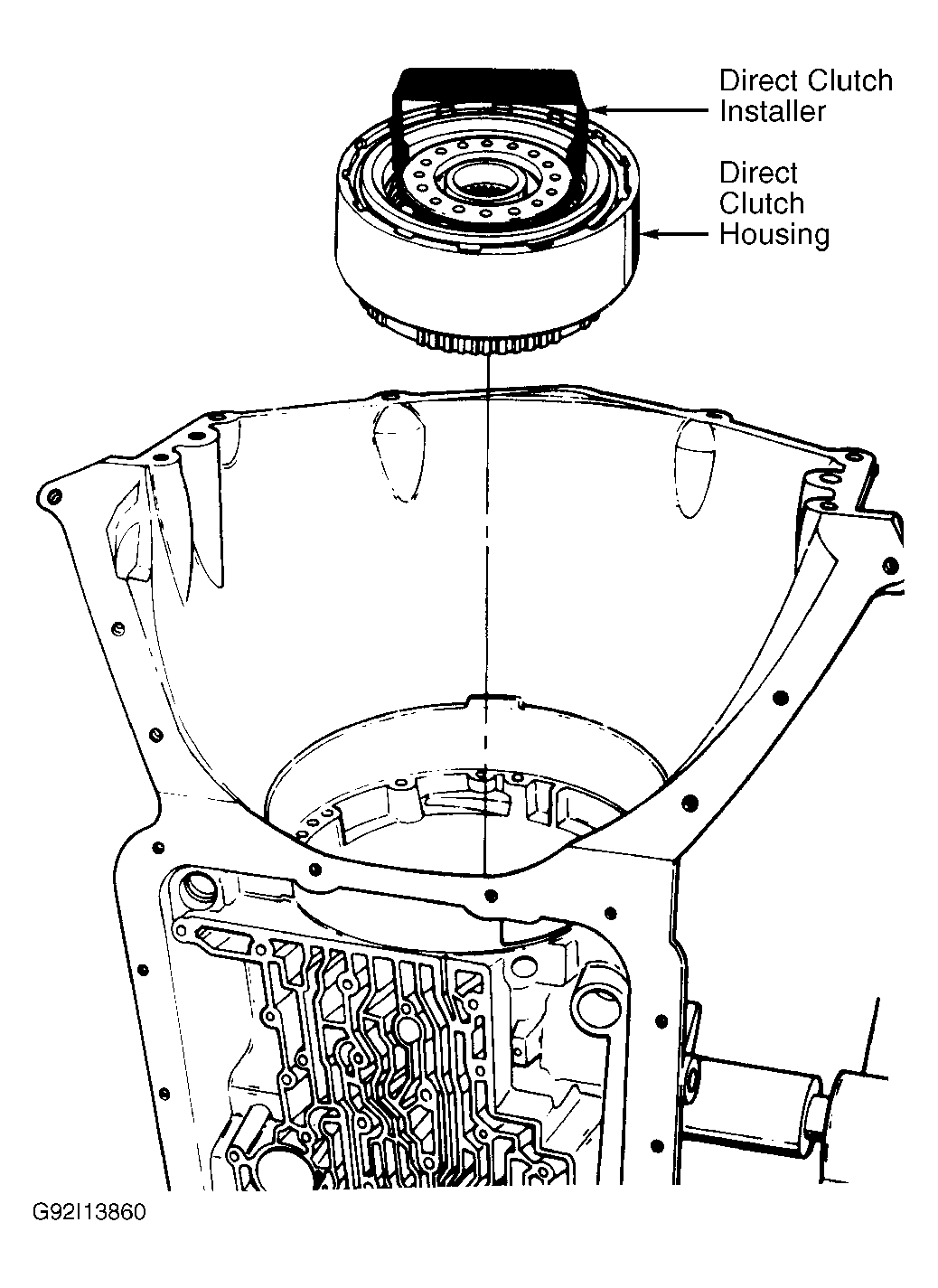

Using Clutch Remover (J-38358-A), remove forward clutch assembly. See Figure. Using Clutch Remover (J-38733), remove direct clutch assembly. See Figure.
