Gear Selector Position "R" (Reverse)

With vehicle stopped, move gear selector to "R" (Reverse) position. Verify 1-2 shift solenoid is on and 2-3 shift solenoid is off.

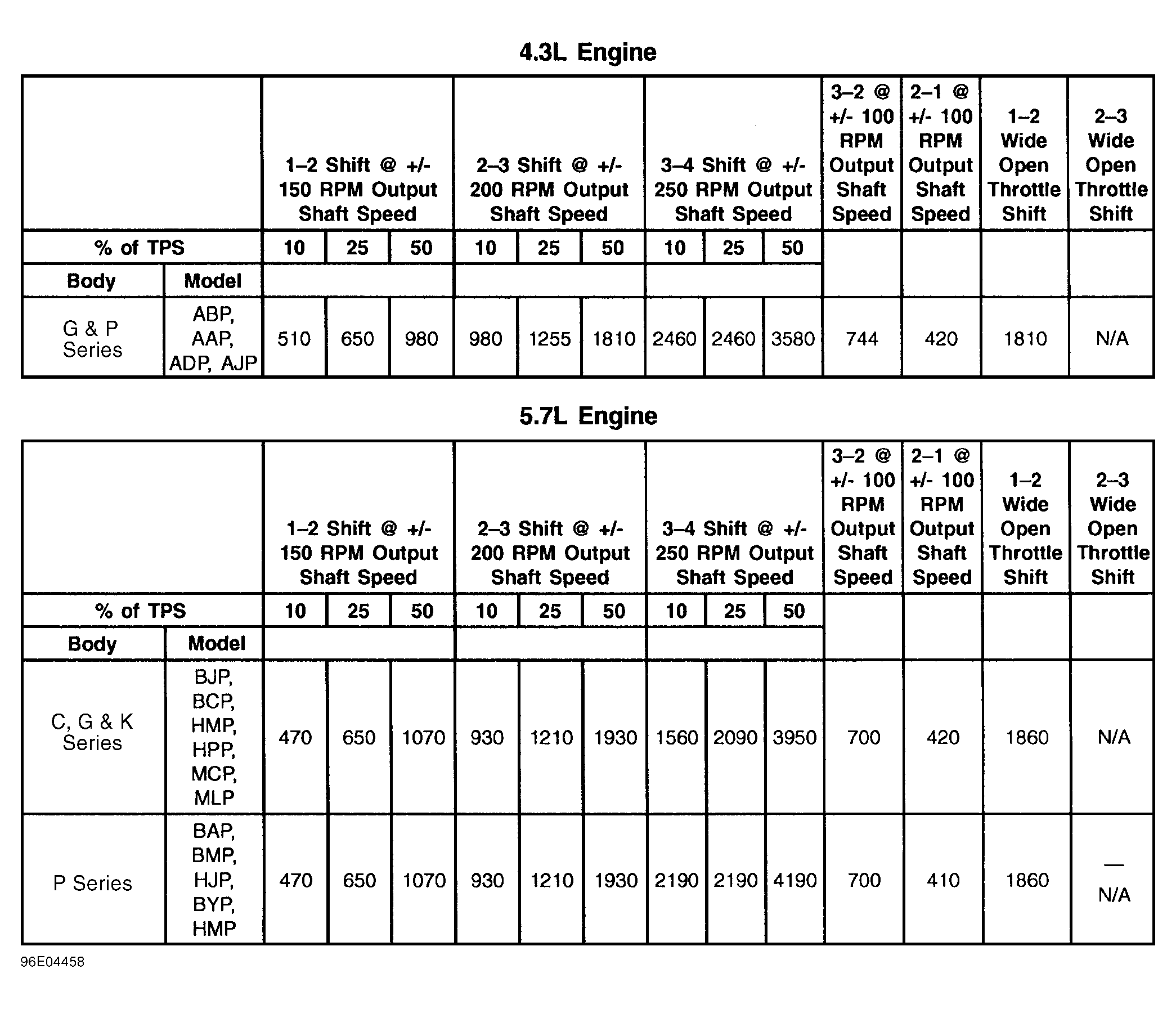

Fig 1: 1995 Hydra-Matic 4L80-E Shift Speed Charts

Courtesy of GENERAL MOTORS CORP.

Fig 2: 1996 Hydra-Matic 4L80-E Shift Speed Charts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: 1996 Hydra-Matic 4L80-E Shift Speed Charts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
