Overdrive Assembly: Reassembly

Using Piston Seal Protector (J-38729), install piston into overrun clutch housing. See Fig 1. Reassemble overrun clutch assembly. See Figure.
Install snap ring. Install 3 steel and 3 composition plates. Ensure clearance between backing plate and snap ring is .033-.094" (.838-2.39 mm). See Fig 3.
If necessary, reassemble overdrive carrier. See Fig 4, Fig 5 and Figure. Install thrust washer to overdrive carrier. See Fig 4. To complete reassembly, install turbine shaft and overdrive carrier to overrun clutch. See Figure and Figure.

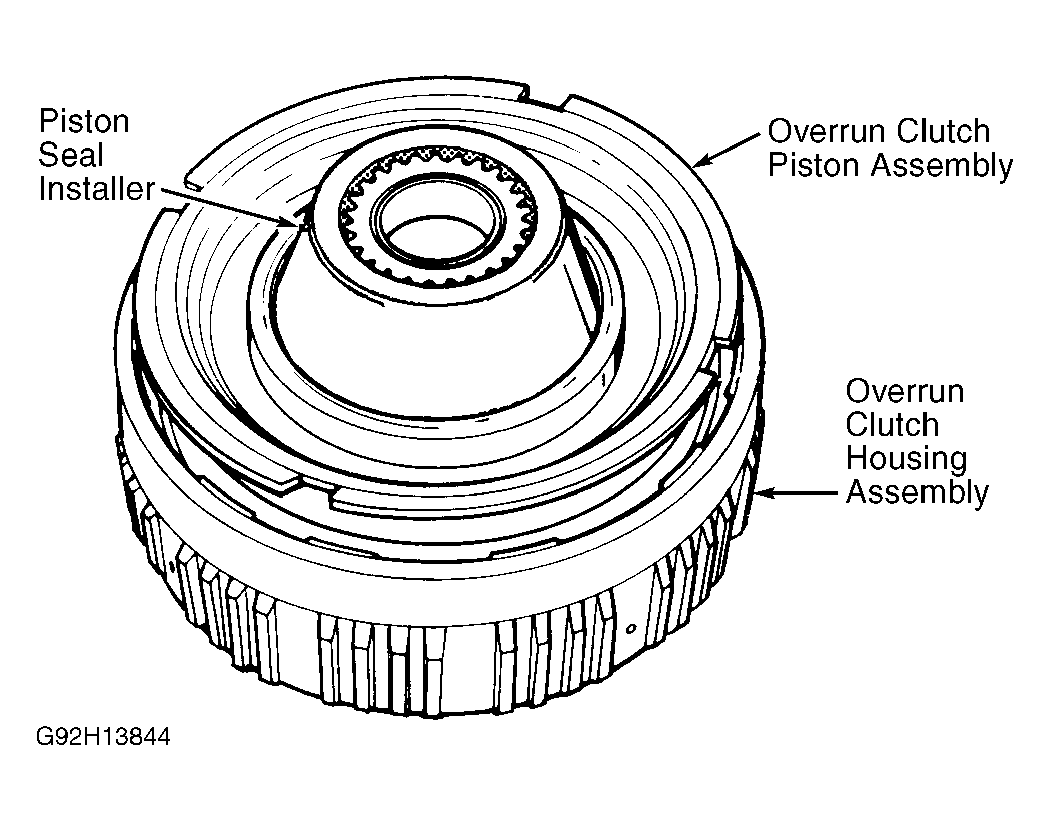

Fig 1: Installing Overrun Clutch Piston

Courtesy of GENERAL MOTORS CORP.

Fig 2: Checking Overdrive Carrier Pinion End Play

Courtesy of GENERAL MOTORS CORP.

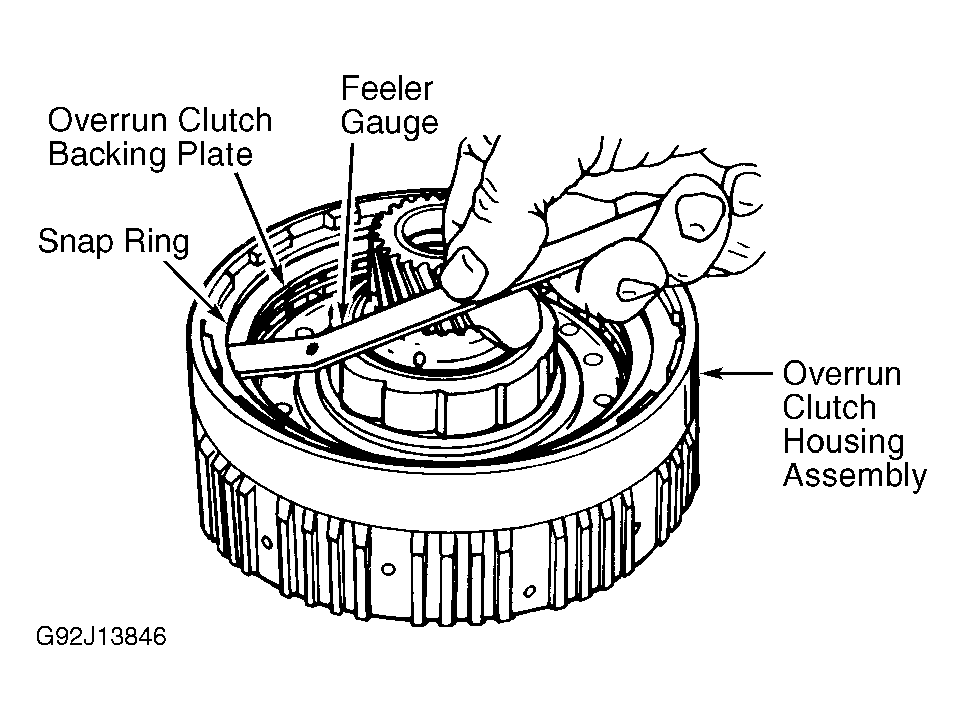

Fig 3: Checking Overrun Clutch Clearance

Courtesy of GENERAL MOTORS CORP.

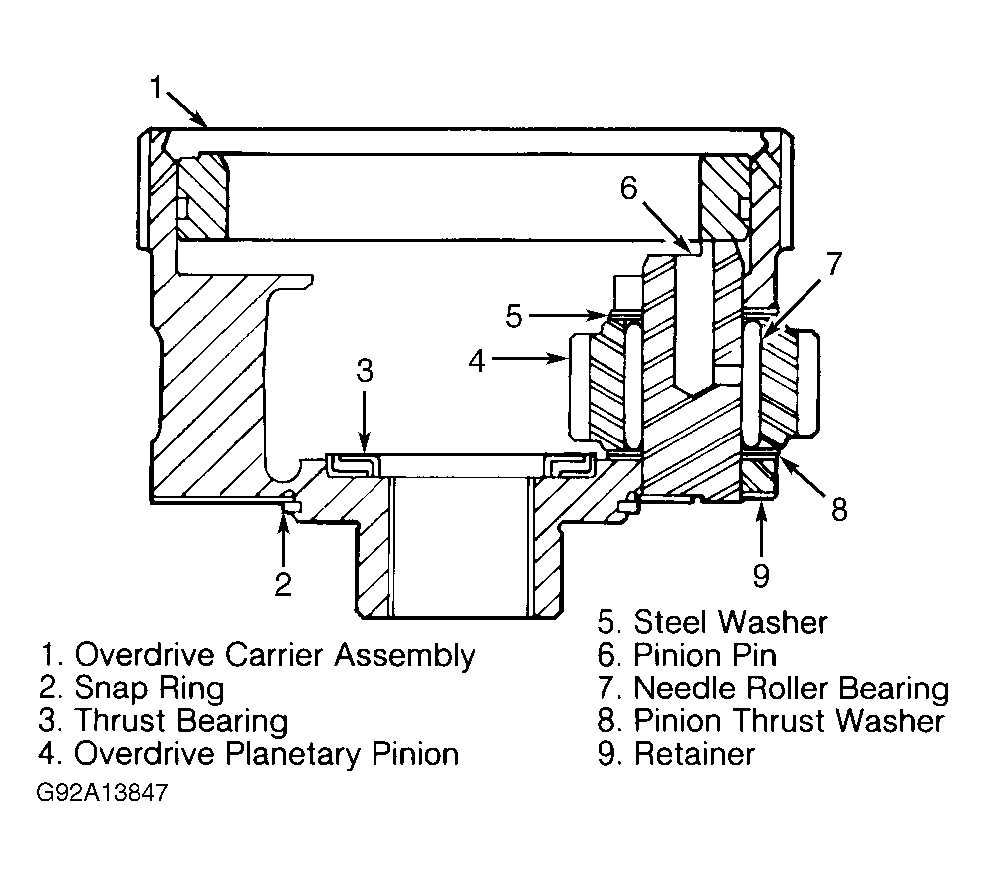

Fig 4: Locating Overdrive Assembly Washers

Courtesy of GENERAL MOTORS CORP.

Fig 5: Exploded View Of Overdrive Carrier Assembly

Courtesy of GENERAL MOTORS CORP.
