Overdrive Assembly: Inspection

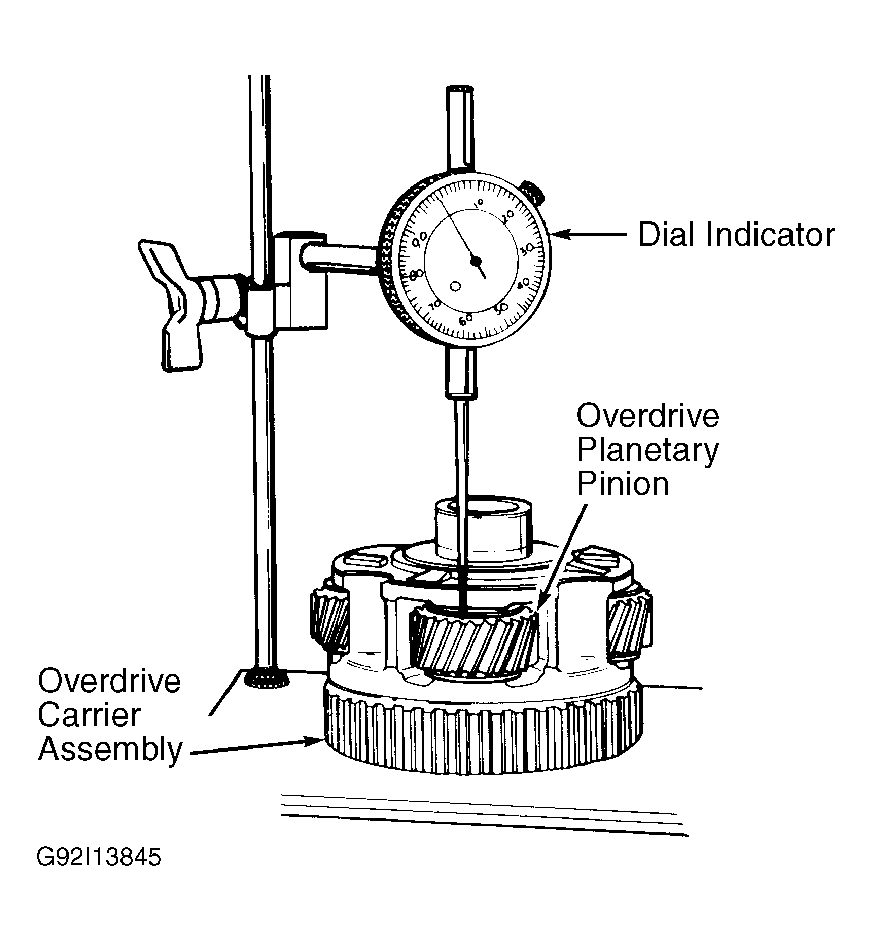

Inspect housing and clutch plates for damaged teeth, scoring or warpage. Inspect spring and spring retainer for damage. Inspect overdrive carrier assembly and turbine shaft for wear or damage. Replace if necessary. Ensure overdrive carrier pinion end play is .009-.024" (.23-.61 mm). See Figure.
