Overdrive Assembly: Disassembly

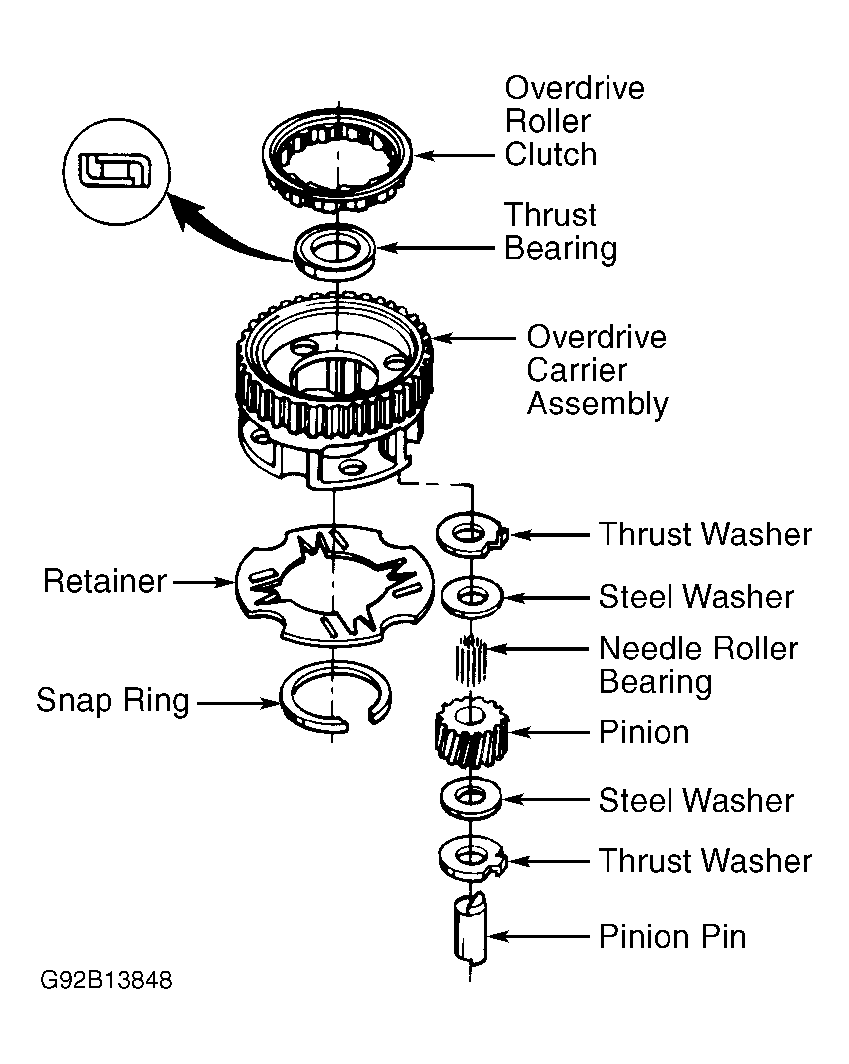

Remove overrun clutch housing from overdrive assembly. See Figure. Disassemble overrun clutch. See Figure and Figure. Using Clutch Spring Compressor (J-23327) and Adapter (J-38734), compress spring retainer, and remove clutch piston. See Figure. Disassemble overdrive assembly. See Figure. If necessary, disassemble overdrive carrier assembly. See Figure.
