Forward Clutch: Reassembly

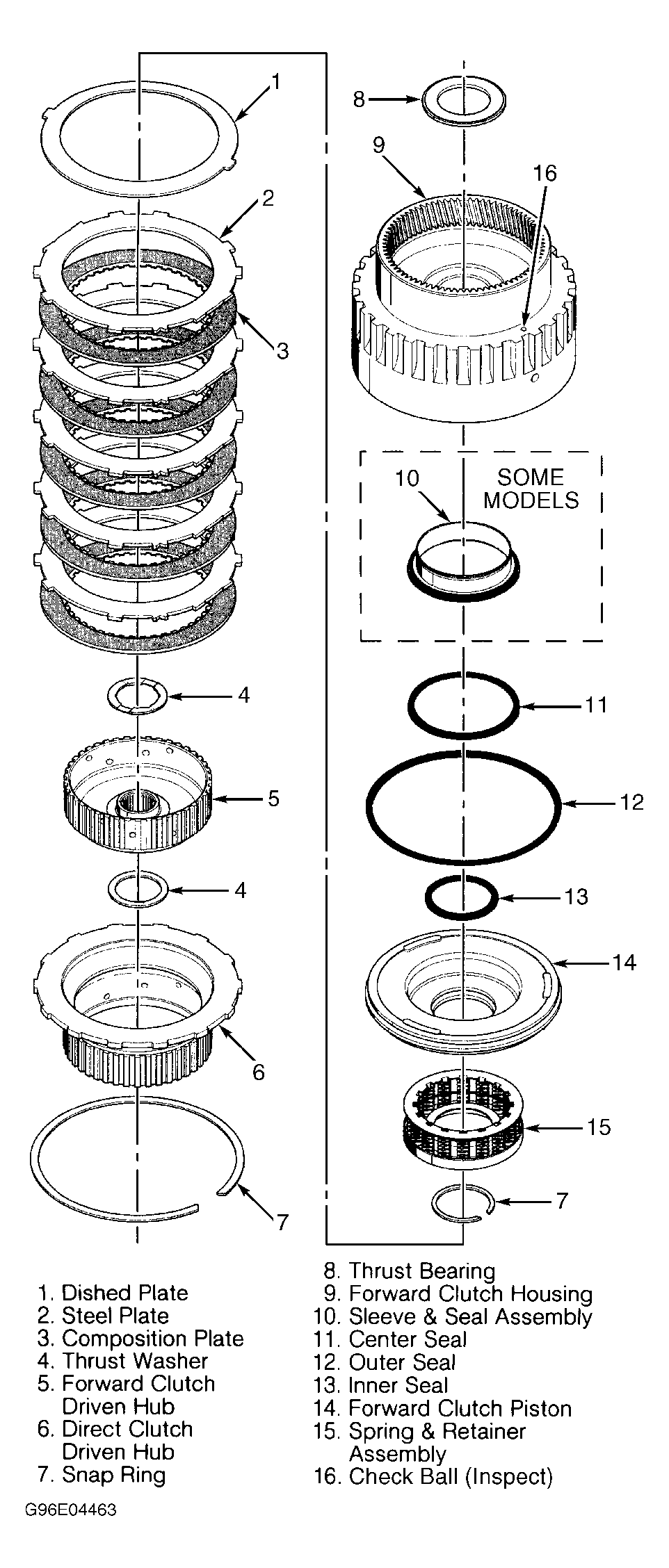

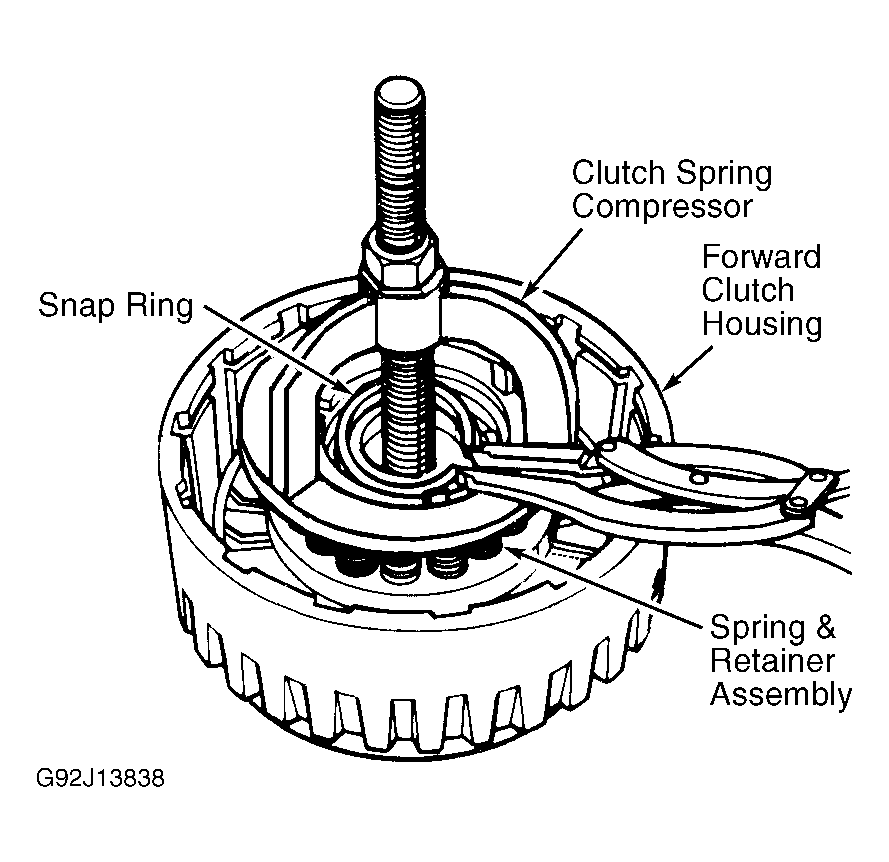

- Using Clutch Piston Installers (J-21362 and J-38732), install piston into forward clutch housing. Reassemble forward clutch. See Fig 1. Install correct number of clutch plates. See FORWARD CLUTCH PLATE APPLICATION table.

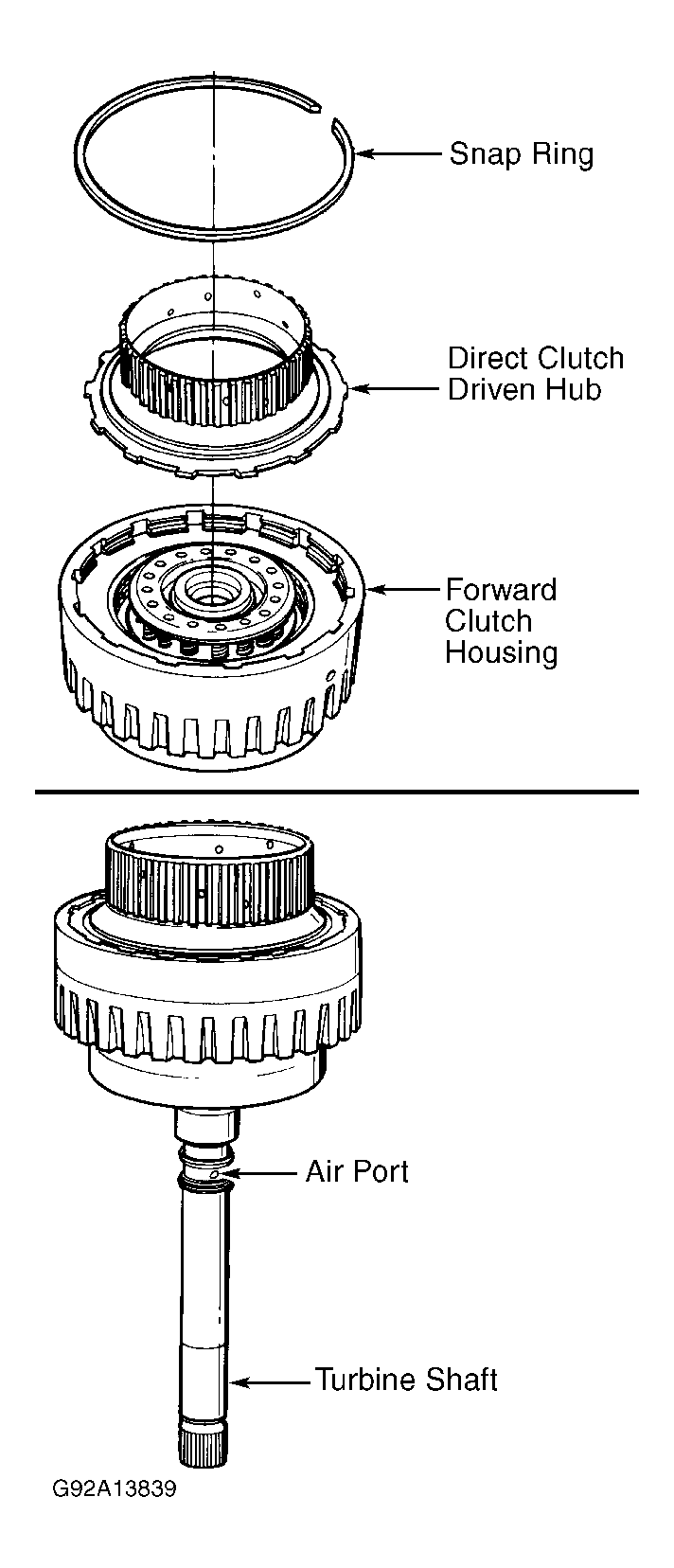

- Apply 80 psi (550 kPa) of air to turbine shaft air port. See Fig 2. Ensure piston seals do not leak. Check forward clutch piston movement. Forward clutch piston should move .121-.186" (3.07-4.72 mm) on all except model ZFP. On model ZFP, forward clutch piston should move .087-.150" (2.21-3.81 mm).
FORWARD CLUTCH PLATE APPLICATION
| Application | Quantity | |
|---|---|---|
| Model ZFP | ||
| Flat Steel Plate | 4 | |
| Composition Plate | 5 | |
| Waved Steel Plate | 1 | |
| Except Model ZFP | ||
| Flat Steel Plate | 5 | |
| Composition Plate | 5 | |
| Dished Steel Plate | 1 | |
