Center Support & Rear Gear Unit: Reassembly

Using Piston Installer (J-21362), install intermediate piston to center support. See Fig 6. Reassemble center support and rear gear unit. See Fig 7-24. Install NEW oil seal rings to center support. Preheat oil seal rings in hot water prior to installation.

Fig 1: Checking Output Carrier Pinion Gear End Play

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View Of Center Support & Rear Gear Unit

Courtesy of GENERAL MOTORS CORP.

Fig 3: Checking Reaction Carrier Pinion Gear End Play

Courtesy of GENERAL MOTORS CORP.

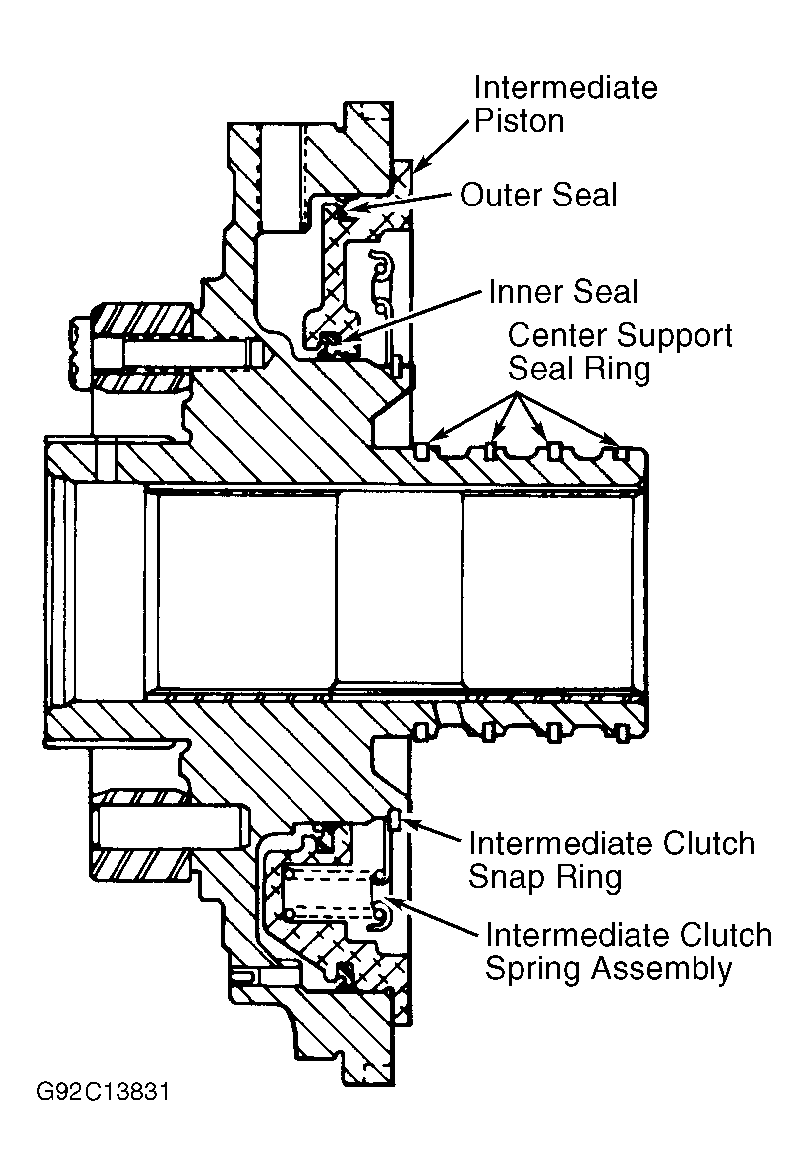

Fig 4: Exploded View Of Intermediate Clutch & Piston

Courtesy of GENERAL MOTORS CORP.

Fig 5: Checking Center Support Cup Plug Bleed Hole

Courtesy of GENERAL MOTORS CORP.

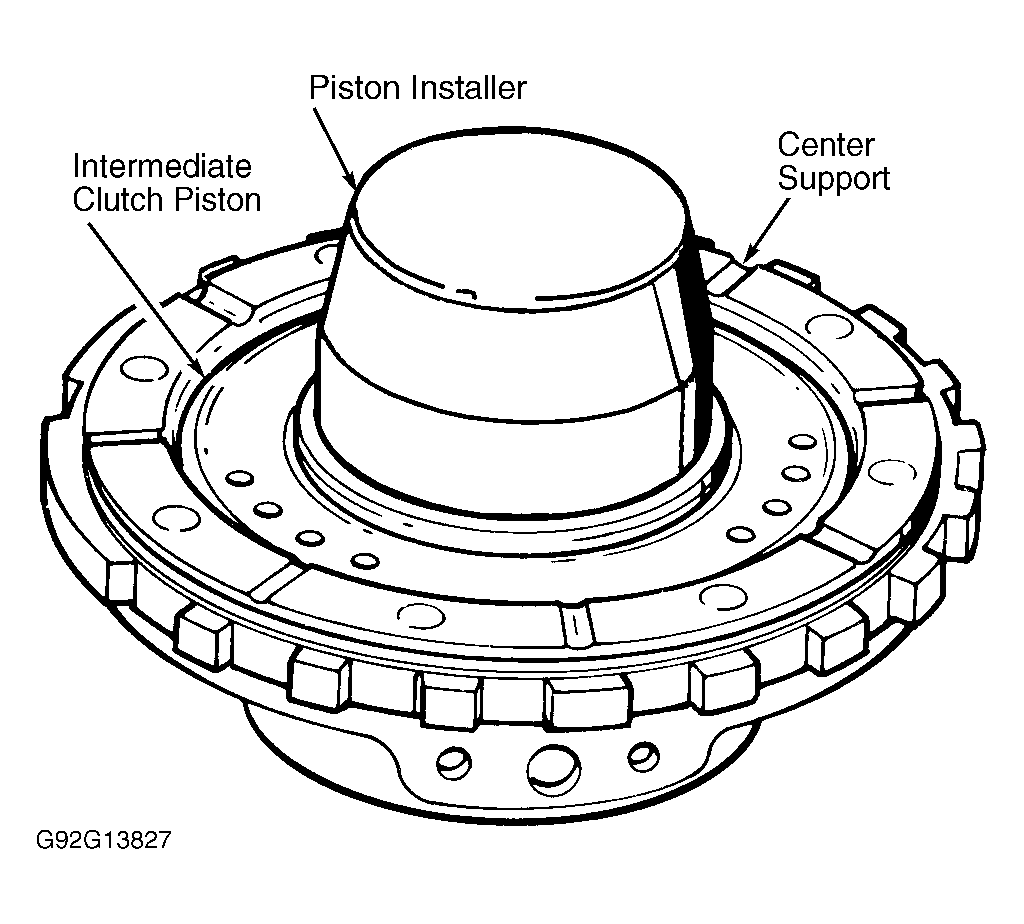

Fig 6: Installing Intermediate Clutch Piston

Courtesy of GENERAL MOTORS CORP.

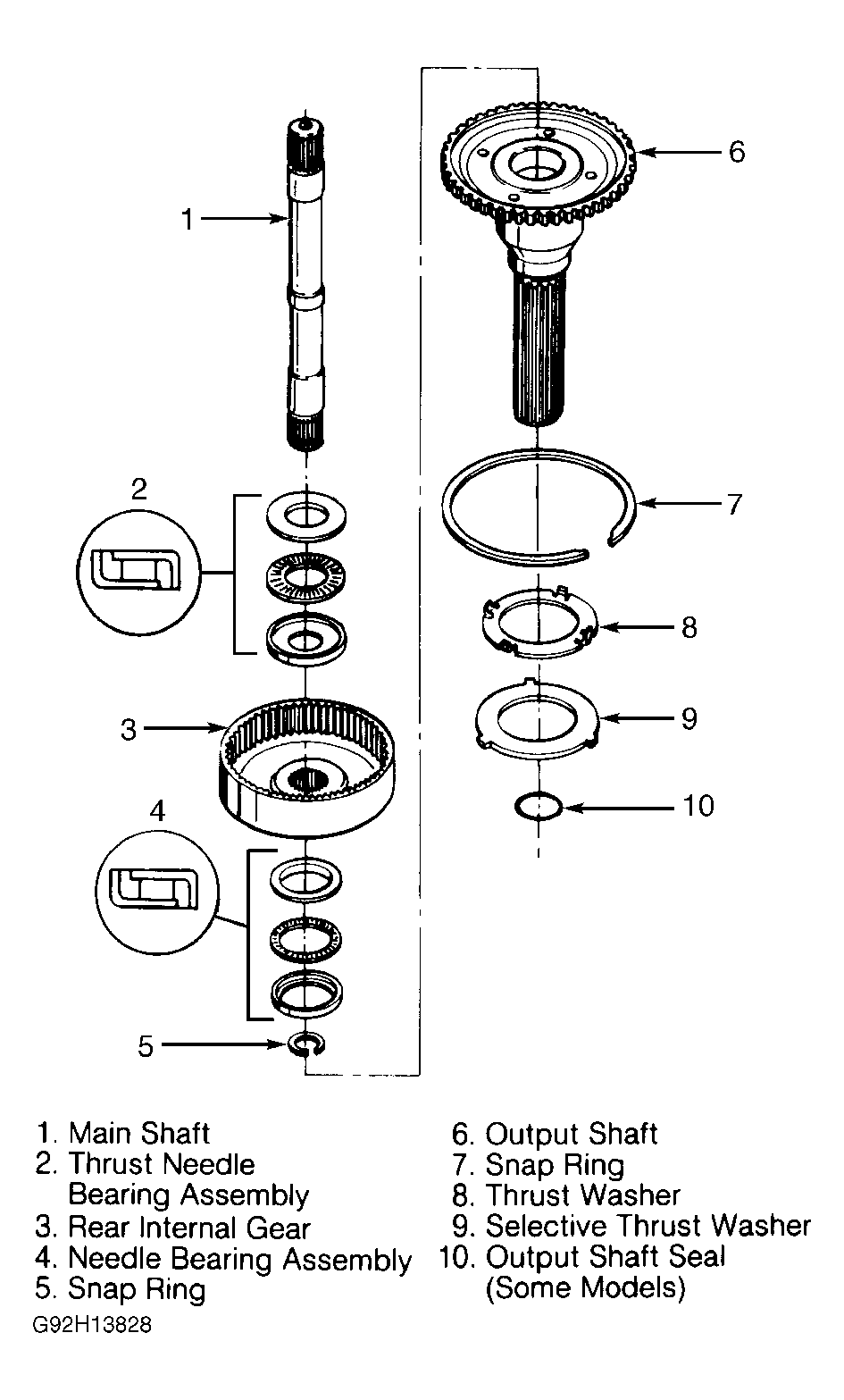

Fig 7: Assembling Output Shaft & Rear Internal Gear

Courtesy of GENERAL MOTORS CORP.

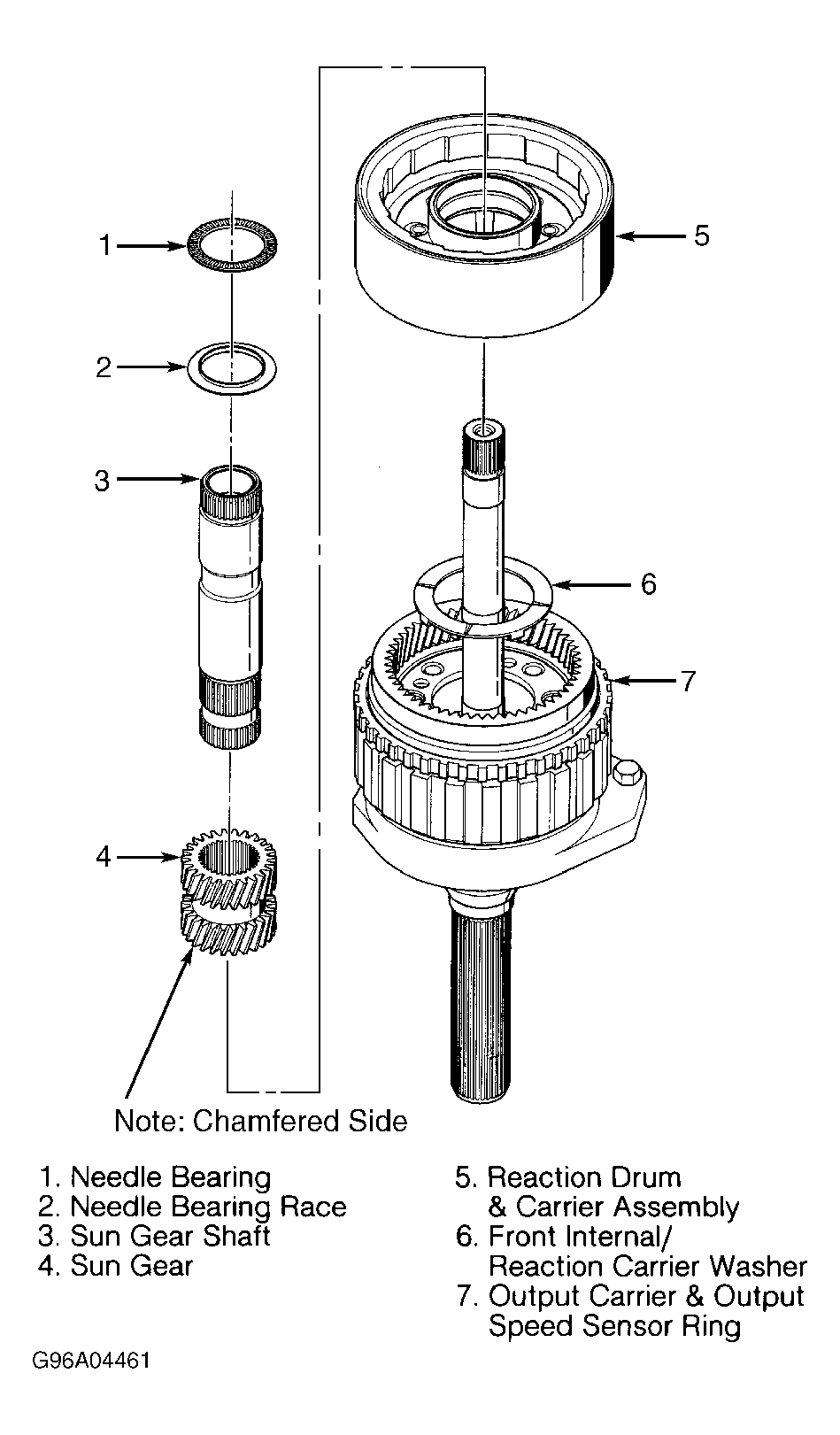

Fig 8: Assembling Output & Reaction Carrier

Courtesy of GENERAL MOTORS CORP.

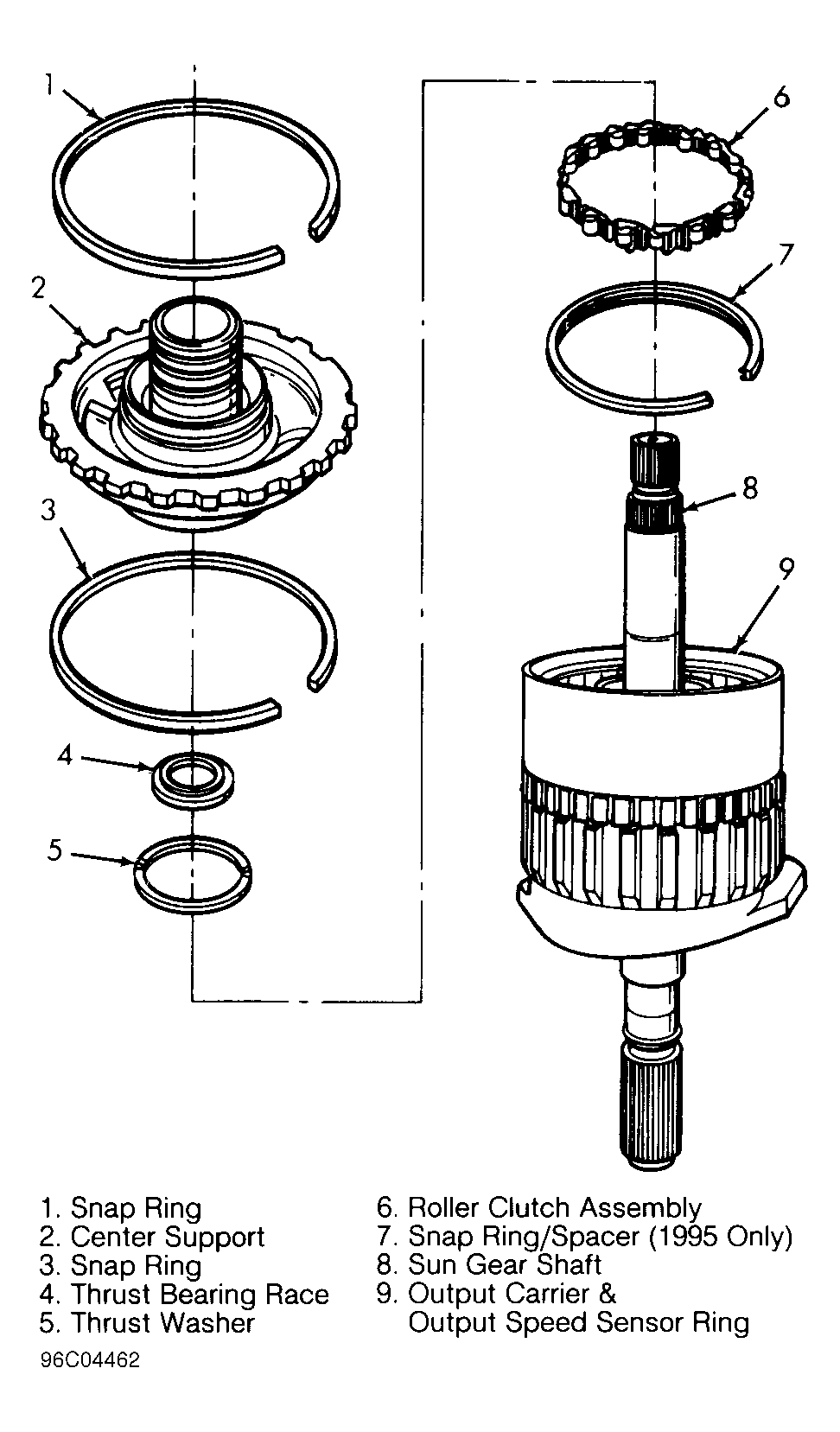

Fig 9: Assembling Center Support & Roller Clutch Assemblies

Courtesy of GENERAL MOTORS CORP.

Fig 10: View Of Intermediate Clutch Assembly

Courtesy of GENERAL MOTORS CORP.
