Center Support & Rear Gear Unit: Disassembly

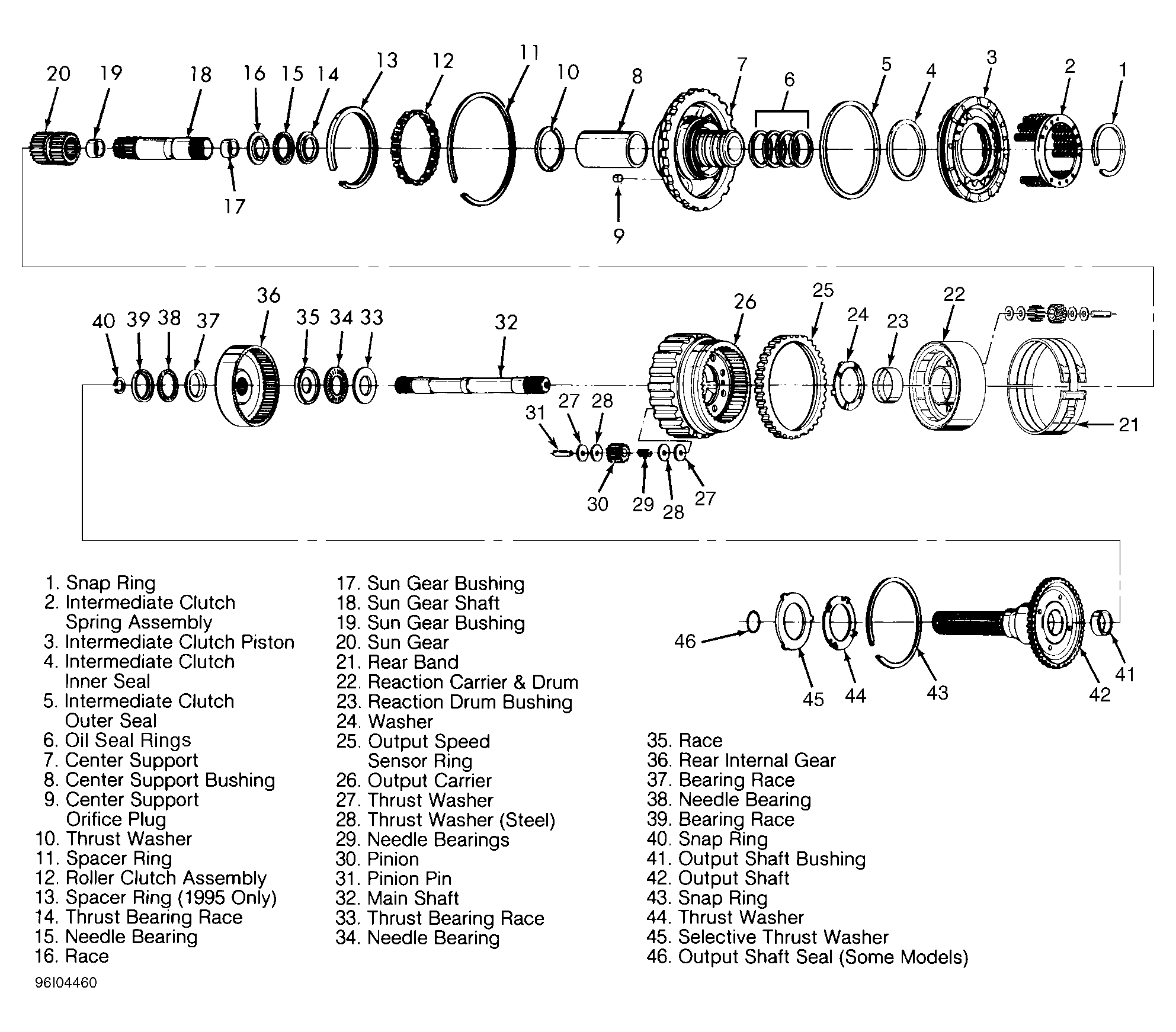

Remove snap rings. Separate center support, output carrier, reaction carrier and parts of rear gear unit. See Figure.

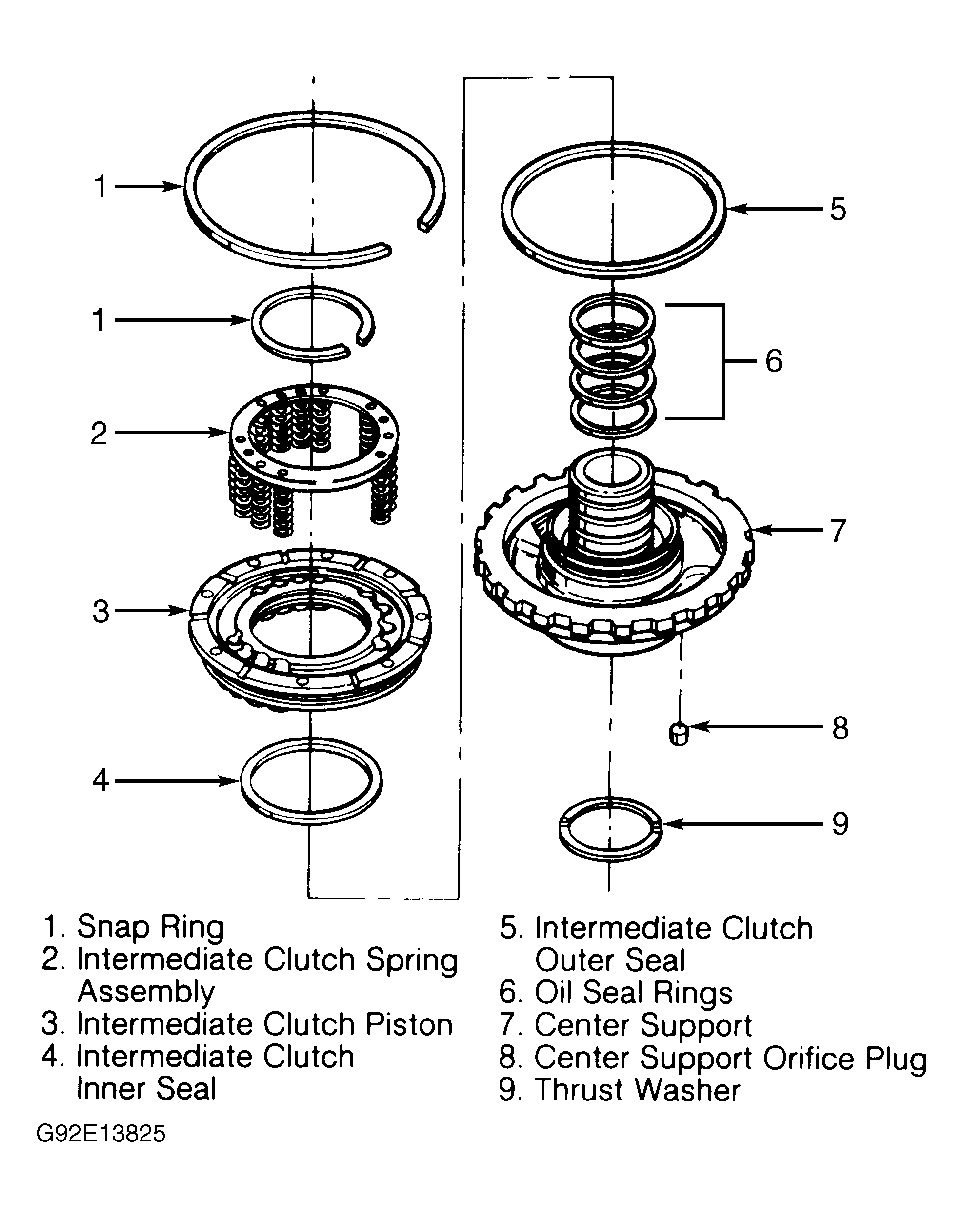

Using Clutch Compressor (J-23327) and Adapter (J-38734), compress intermediate clutch springs, and remove snap ring. Separate center support from intermediate clutch assembly. See Figure.
