Cleaning & Inspection

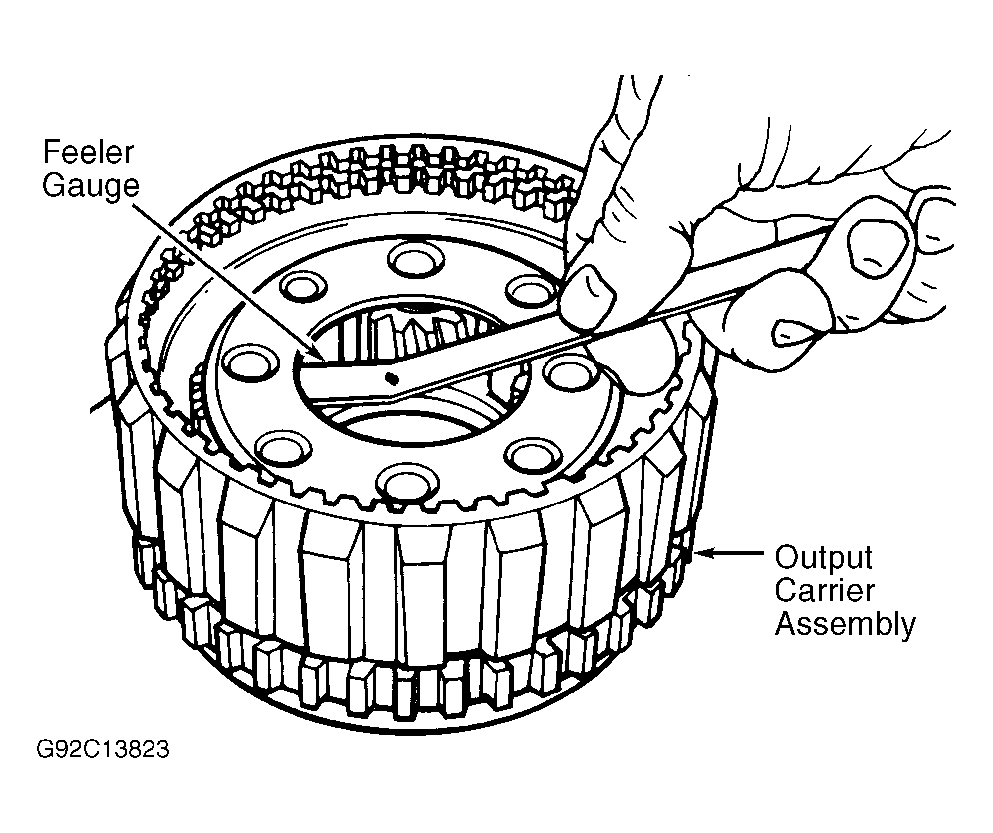

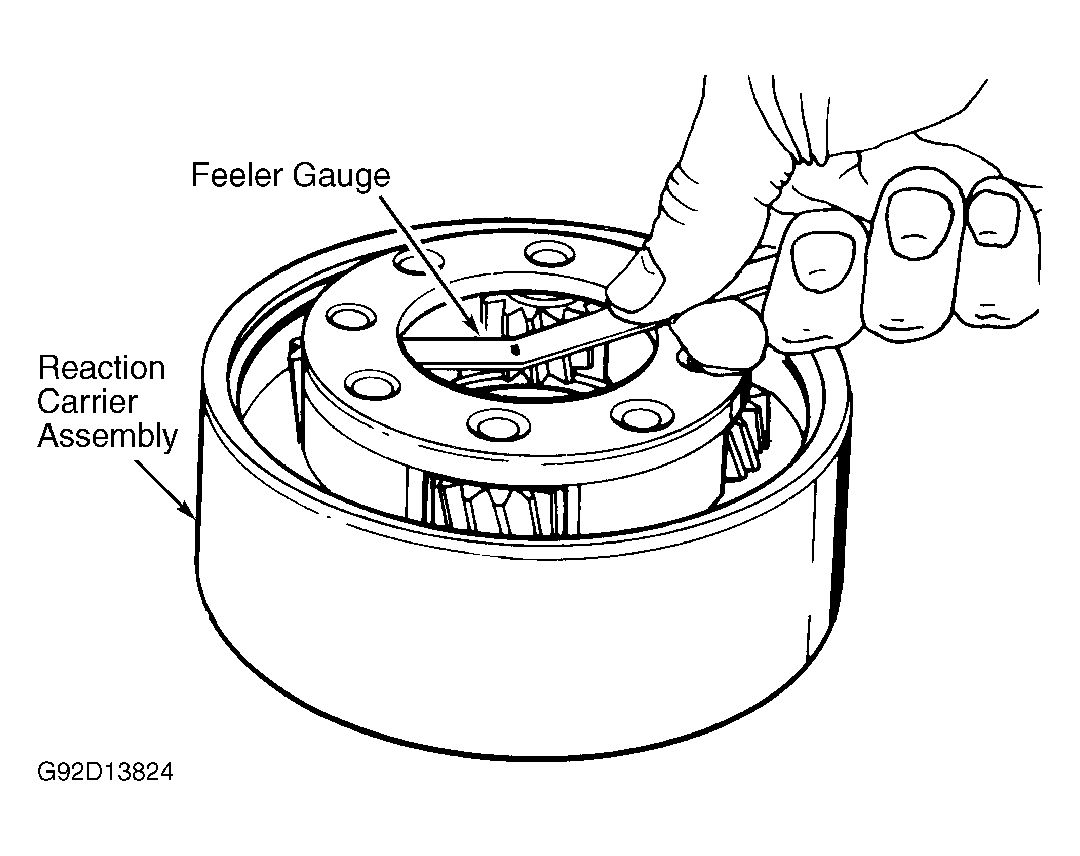

  1. Inspect output carrier, reaction carrier and reaction drum for damaged teeth, scoring or warpage. Check thrust bearing for damage. Using a feeler gauge, check output carrier and reaction carrier pinion gear end play. See Figure and Figure.

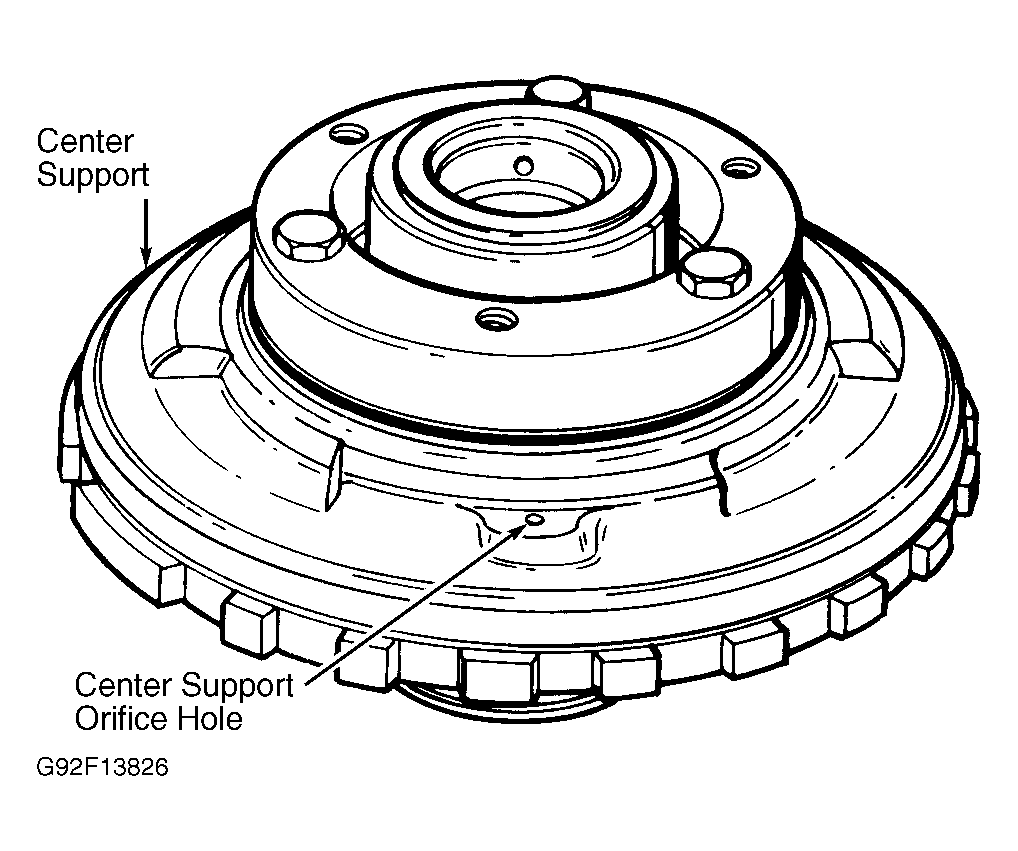

  2. End play should be .009-.024" (.23-.61 mm). Check for damage to reaction carrier internal gear. Ensure center support cup plug bleed hole opening is about .020" (.51 mm). See Figure.
