Chart A-1, No Mil (Service Engine Soon Light) - "G" & "P" Series With TCM: Notes

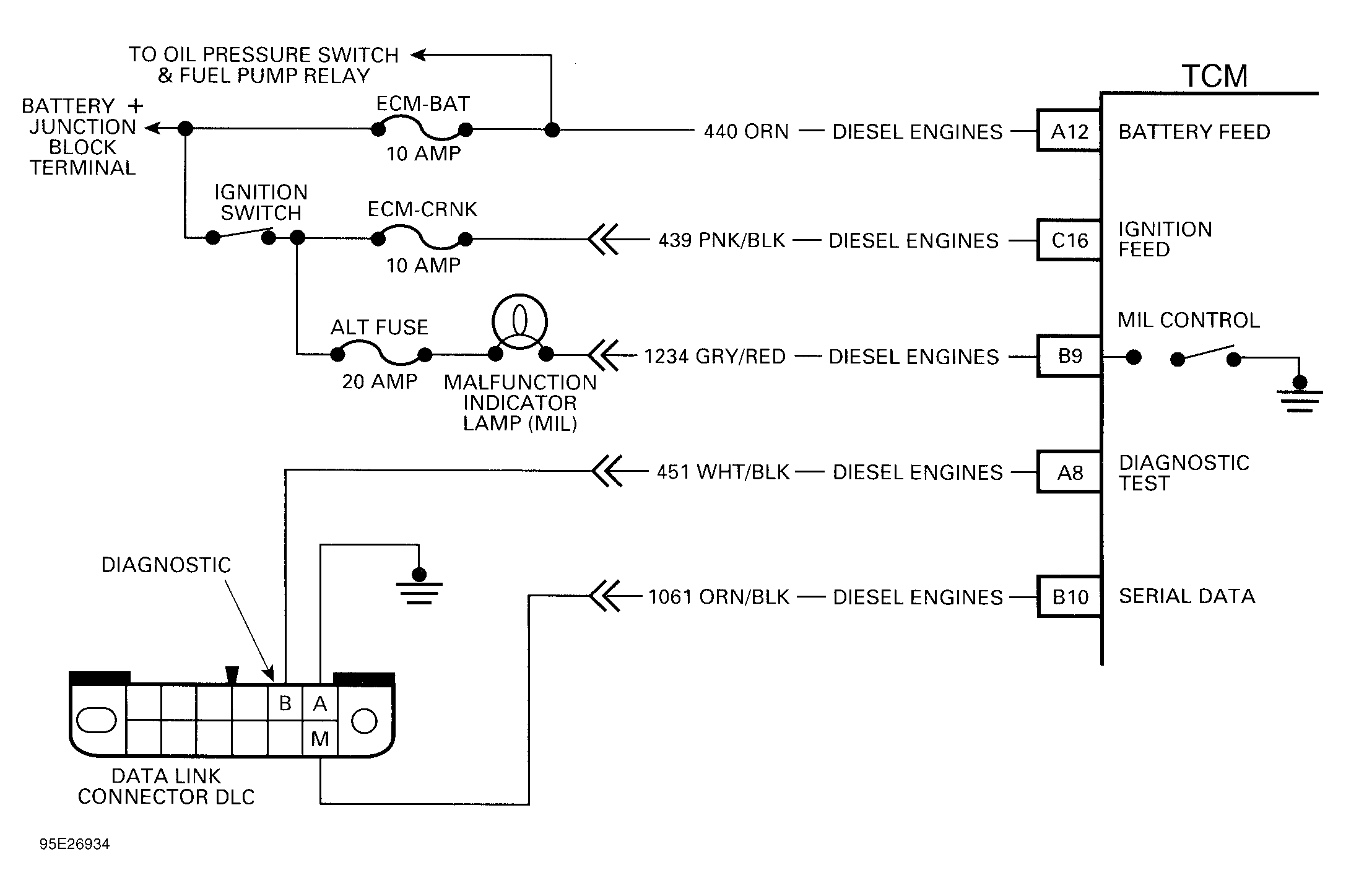

Fig 1: Chart A-1 Circuit Diagram (TCM - Diesel)

Courtesy of GENERAL MOTORS CORP.

MIL should be on when engine is off and ignition is on. Switched battery voltage is supplied to MIL. The PCM turns light on by providing a ground path through the MIL (SERVICE ENGINE SOON) control circuit.

NOTE: Test numbers refer to numbers on diagnostic chart.

If ECM-BAT fuse is blown, see WIRING DIAGRAMS for complete circuit.
Using a test light connected to 12 volts, probe each of the system ground circuits to ensure a good ground is present.

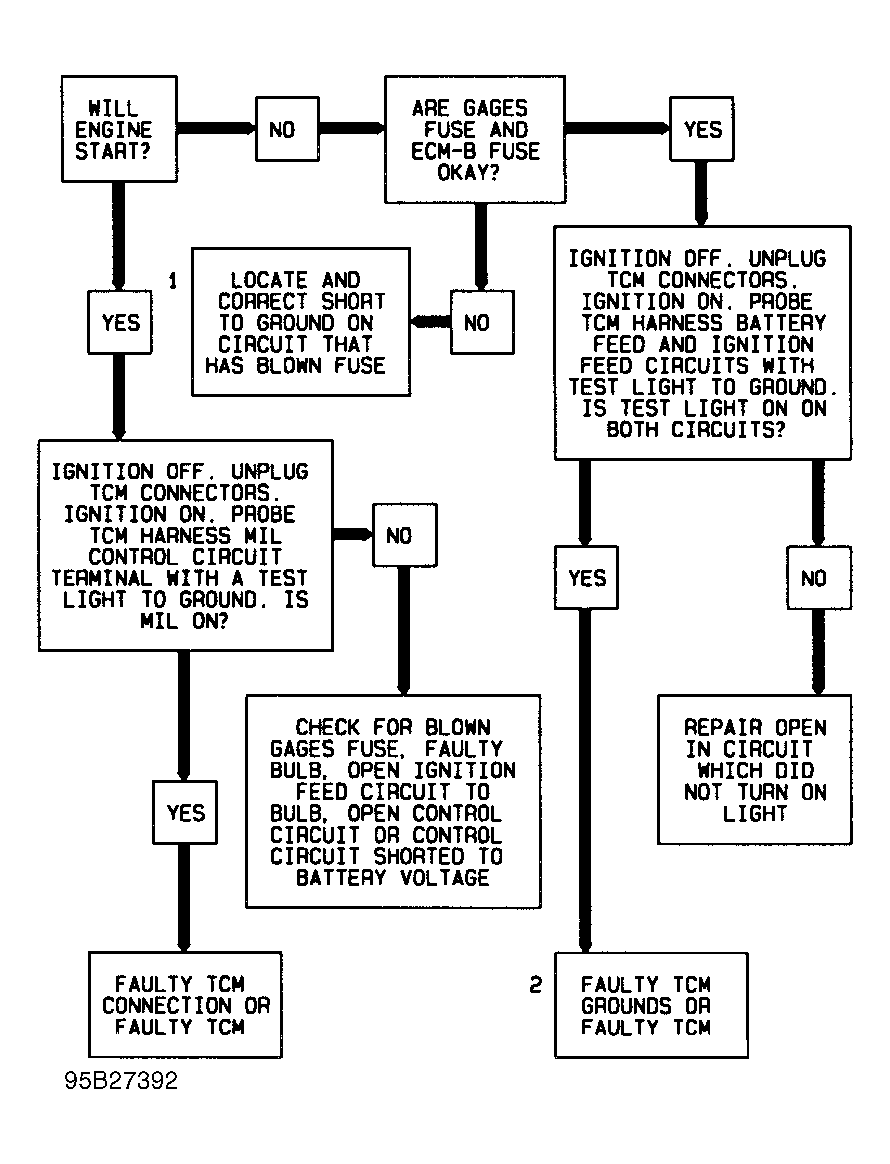

Fig 2: Chart A-1 Troubleshooting Chart (TCM - Diesel)

Courtesy of GENERAL MOTORS CORP.
