"S" & "T" Series

Fig 1: 4.3L CPI "S" & "T" Series Calif./Fed. All Transmissions (YBD, YBP, YBR, YBS, YBT & YJL)
G95F27370

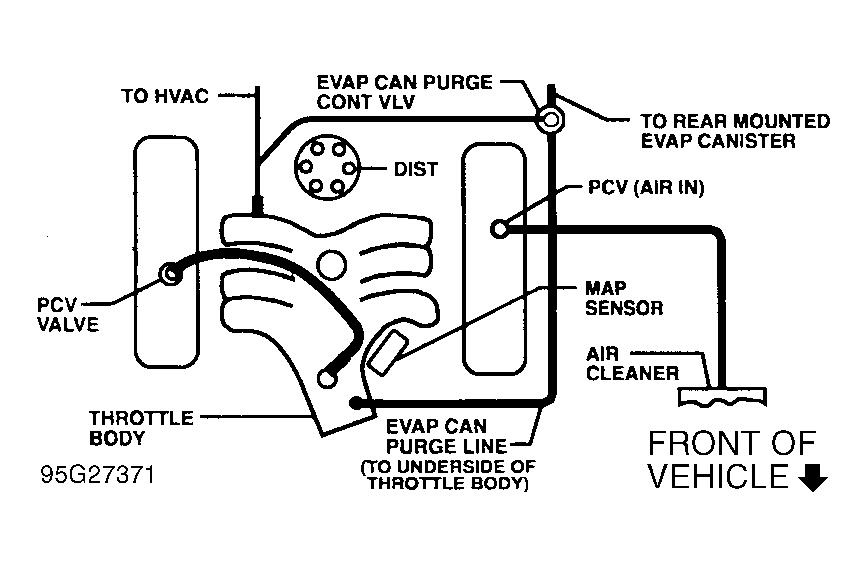

Fig 2: 4.3L CPI "S" & "T" Series Fed. All Transmissions (TMU)
G95G27371
Fig 3: 4.3L TBI "S" & "T" Series Calif./Fed. All Transmissions (YBK, YBN & TMW)
G95H27372
Fig 4: 4.3L TBI "S" & "T" Series Calif./Fed. A/T (YBJ & YBL)
G95I27373
