Diagnostic Aids

If BARO is low, a 96 second reset will result. If Code 36 is set, Code 35 will usually also be set. Repair actuator circuit first. If IAC counts are zero, idle speed control actuator will disengage and raise idle speed.

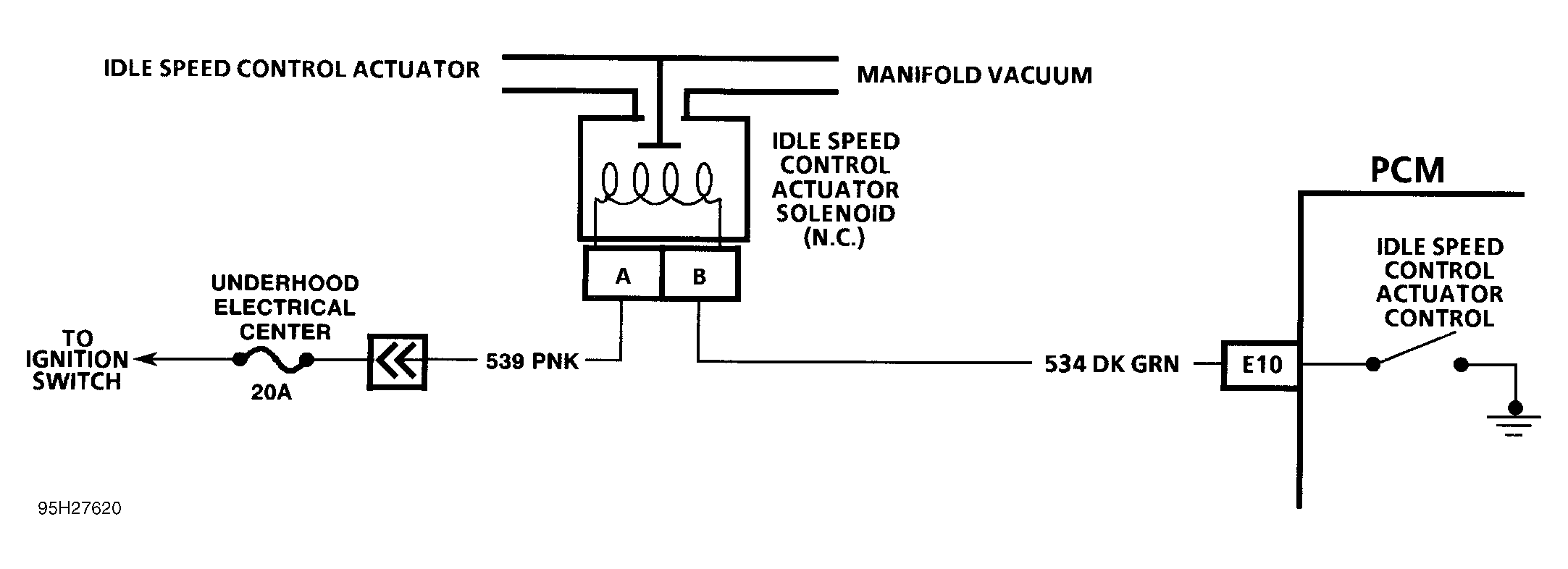

Fig 1: Code 36 Schematic ("C", "G", "K" & "P" Series A/T) Idle Speed Actuator Fault

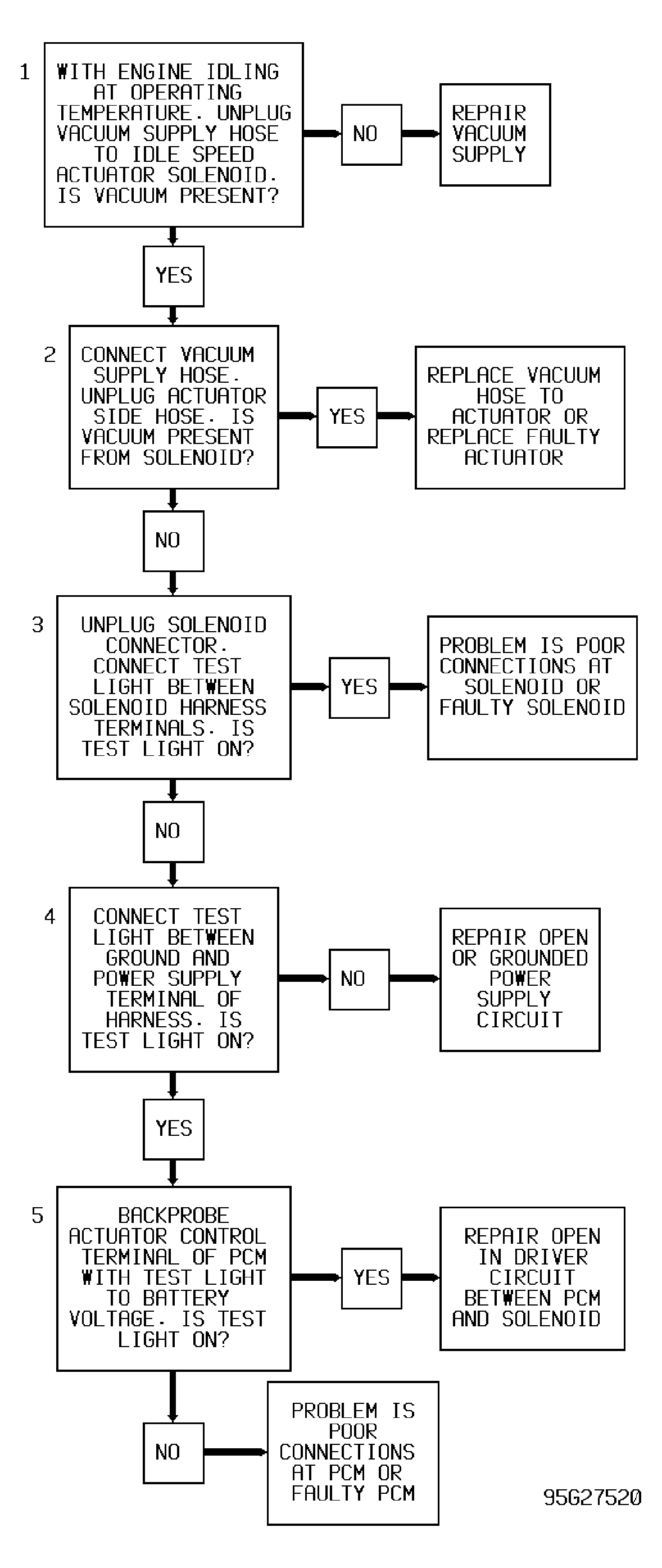

Fig 2: Code 36 Flow Chart ("C", "G", "K" & "P" Series A/T) Idle Speed Actuator Fault
