Diagnostic Aids

Ensure correct A/C relay is installed on vehicle.

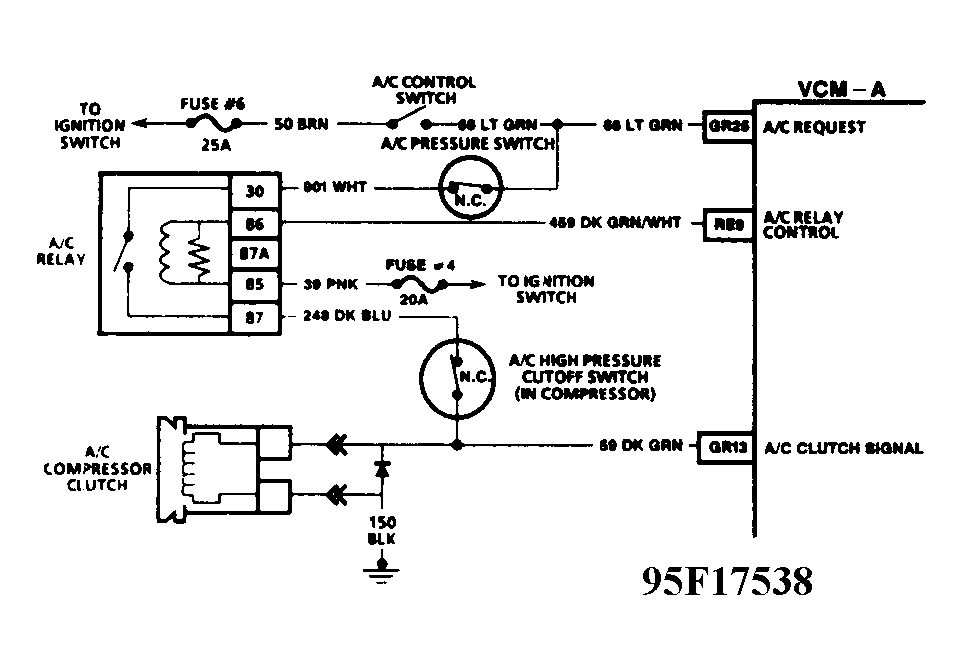

Fig 1: Chart C-10 Schematic (4.3L (VIN Z) "S" & "T" Series M/T) A/C Compressor Clutch Circuit Diagnosis
G95F17538

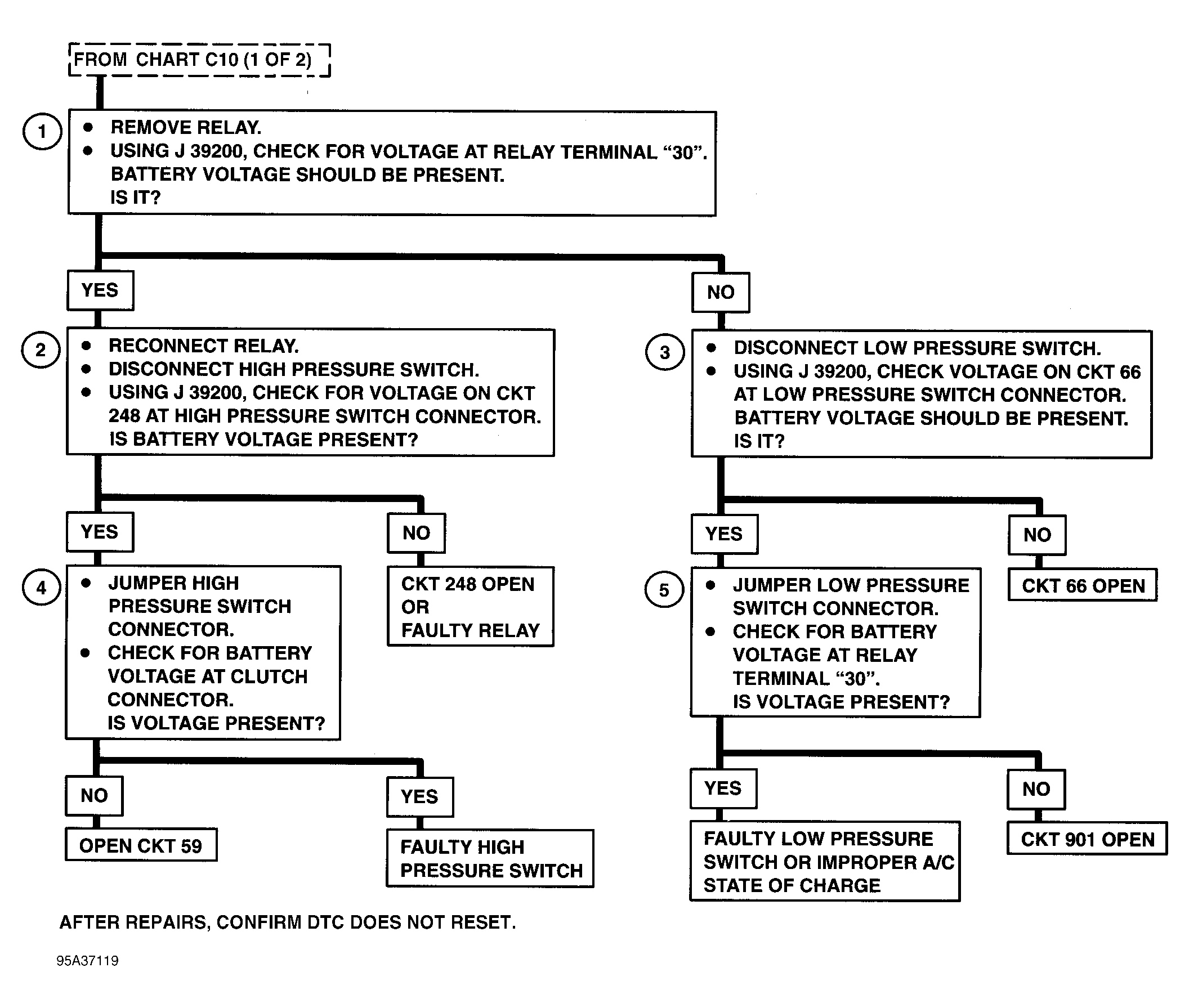

Fig 2: Chart C-10 Diagnostic Flow Chart - 2 Of 2 (4.3L (VIN Z) "S" & "T" Series M/T) A/C Compressor Clutch Circuit Diagnosis
G95A37119
