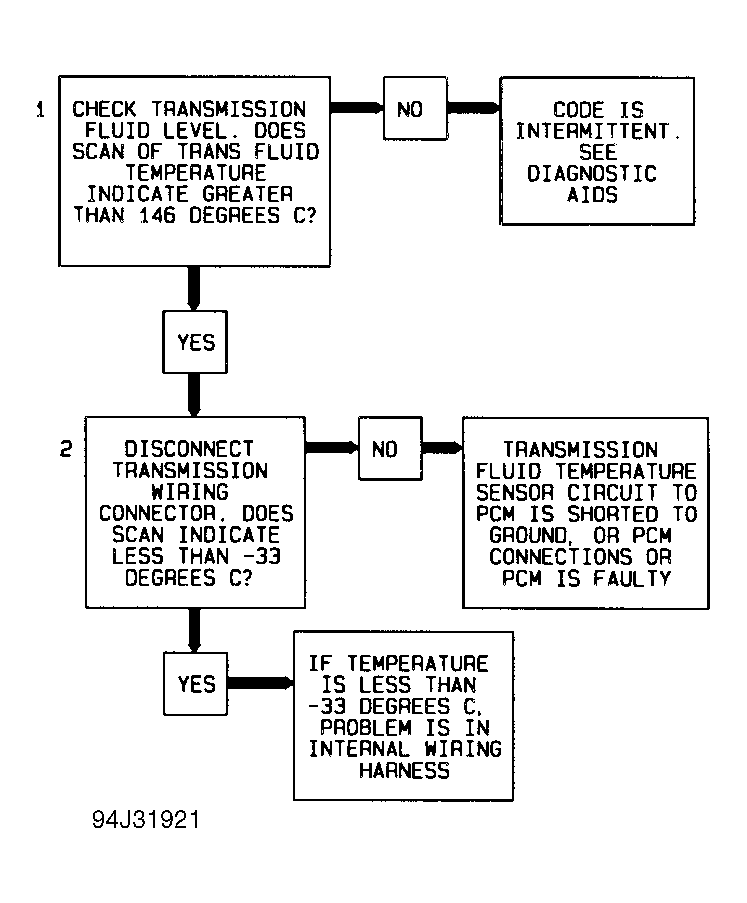

Diagnostic Aids
Use temperature-to-resistance table to check sensor at various levels to determine if sensor is out-of-calibration, which could result in firm shifts or TCC enable.
TEMPERATURE-TO-RESISTANCE VALUES (1)
| Temperature °F (°C) | Ohms | ||
|---|---|---|---|
| 212 (100) | 177 | ||
| 194 (90) | 241 | ||
| 158 (70) | 467 | ||
| 104 (40) | 1459 | ||
| 68 (20) | 3520 | ||
| 23 (-5) | 12,300 | ||
| 14 (-10) | 16,180 | ||
| 0 (-18) | 25,000 | ||
| -4 (-20) | 28,680 | ||
| -22 (-30) | 52,700 | ||
| -40 (-40) | 100,700 | ||
|
|||
