Removal ("S" & "T" Series)

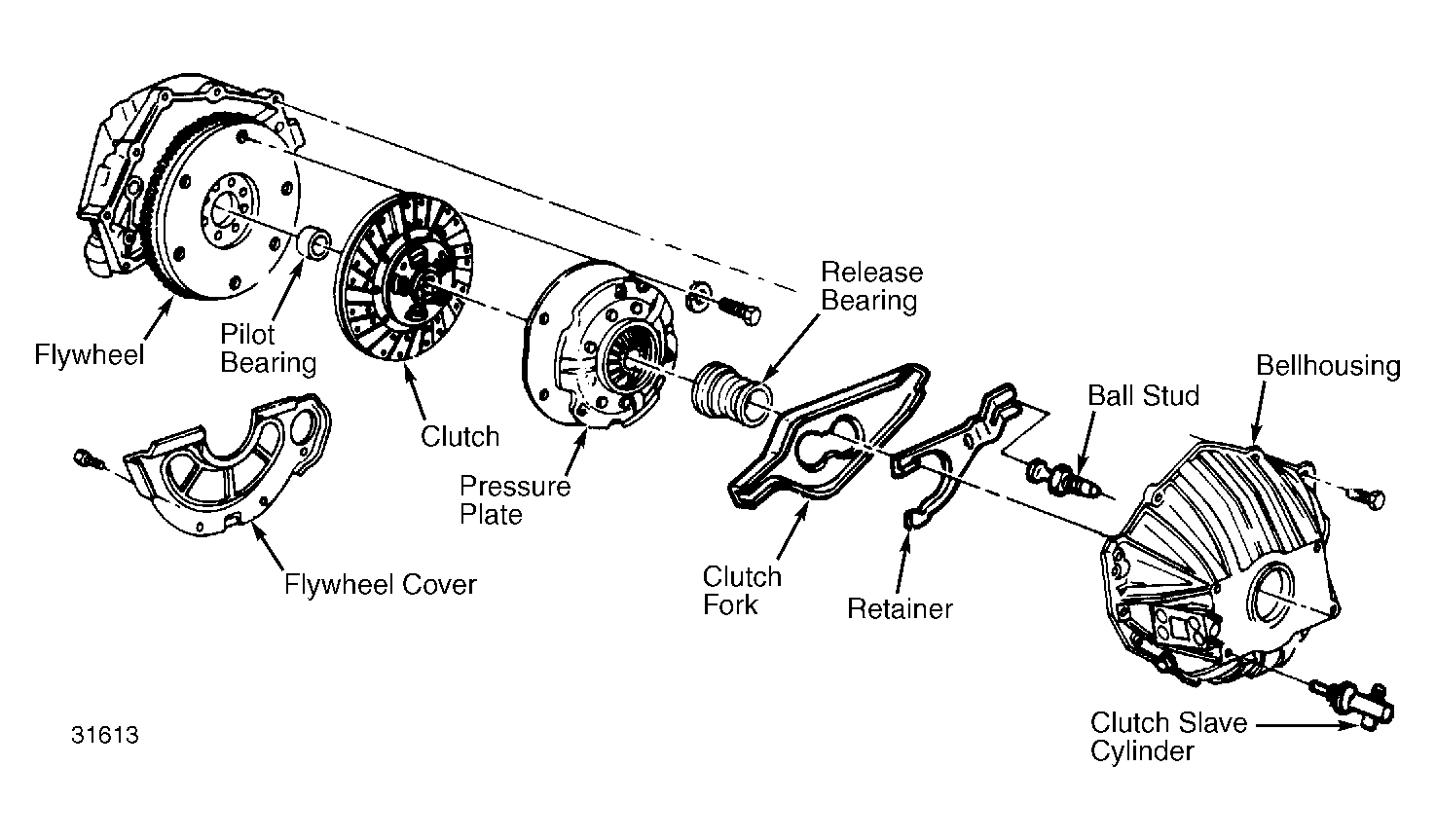

1) Remove transmission. See TRANSMISSION  under REMOVAL & INSTALLATION. Remove slave cylinder from bellhousing. See Figure . Remove bellhousing bolts and remove bellhousing.

2) Remove flywheel cover bolts and remove flywheel cover. Remove clutch fork and release bearing. Remove ball stud from clutch fork. Remove retainer from clutch fork if worn or damage. Install Clutch Aligner (J-33169) to support clutch plate. Mark flywheel, clutch plate and pressure plate for reassembly reference.

3) Evenly loosen pressure plate bolts 1-2 turns at a time until clutch plate spring tension is released. Remove clutch plate and pressure plate. Remove clutch aligner. Remove pilot bearing if worn or damaged using Pilot Bearing Puller (J-23907).
