Diagnostic Aids

Check all connections to transmission pass-through connector. An open in the ignition feed circuit will cause multiple codes to set.

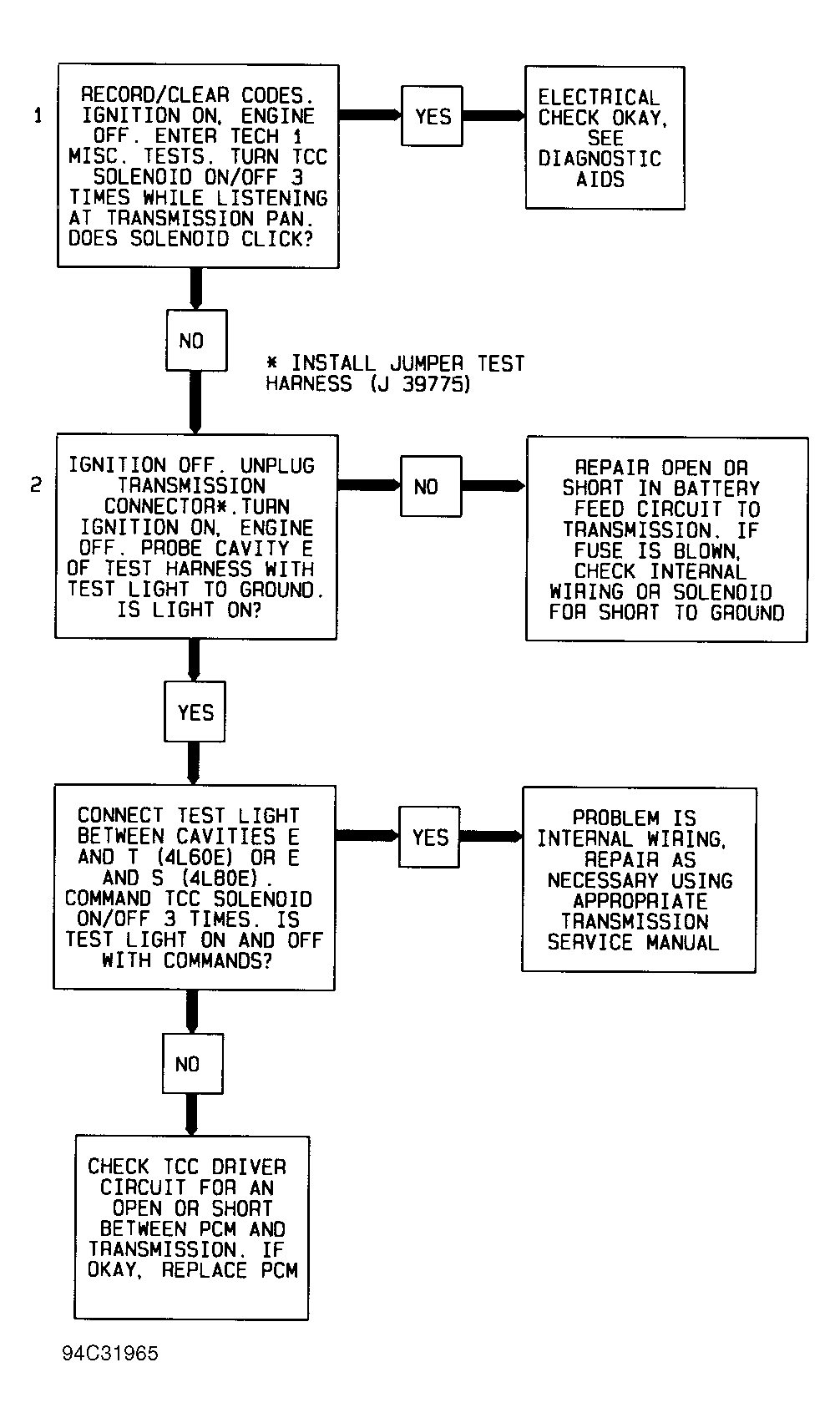

Fig 1: Code 90A - TCC Solenoid Flowchart

G94C31965
