Diagnostic Aids

See Code 59 chart to check transmission temperature sensor temperature-to-resistance values. Also, check transmission fluid level.

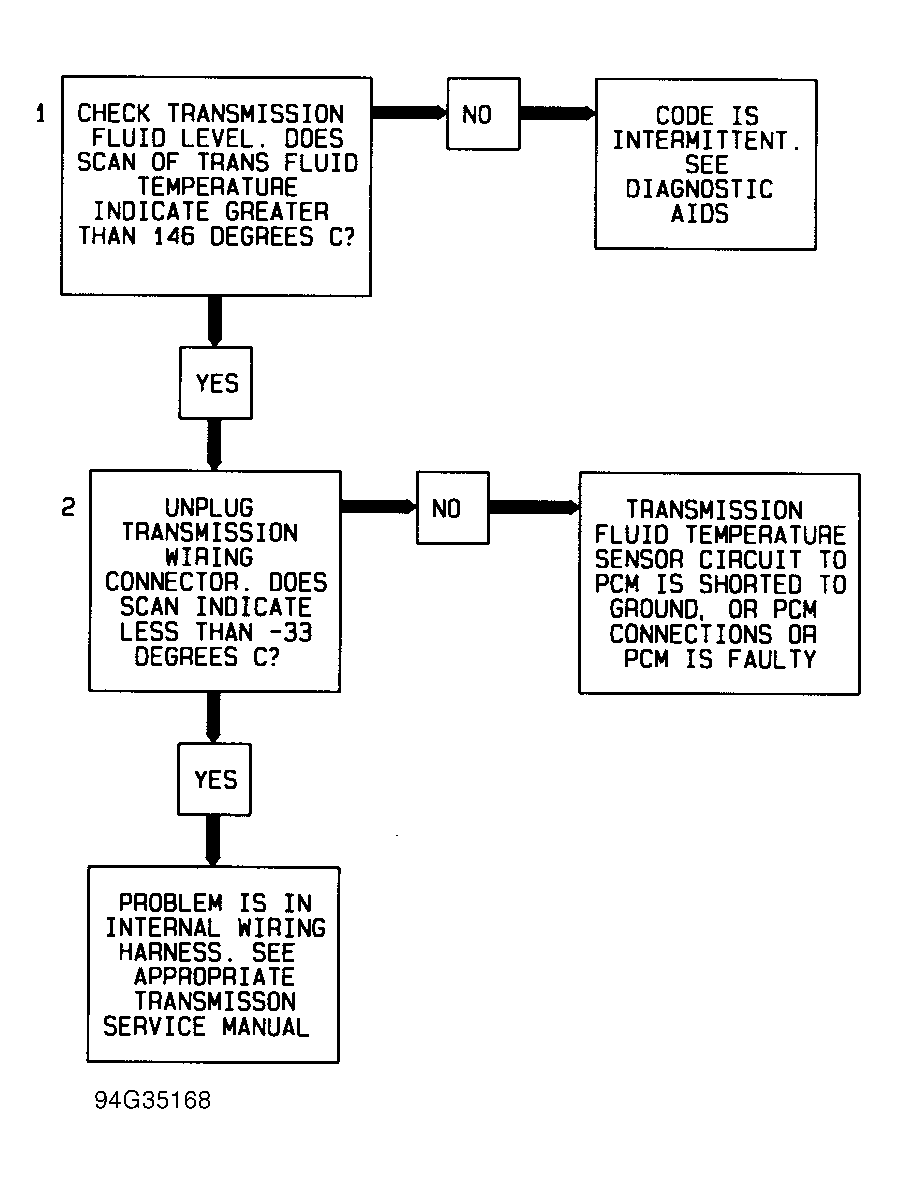

Fig 1: Code 79 - Transmission Temp. Flowchart (3.4L "F", 4.3L & 5.7L)
G94G35168
