Diagnostic Aids

Code 24 will set if vehicle speed is not detected at start off. Code 72 will set when vehicle speed has been detected and then lost.

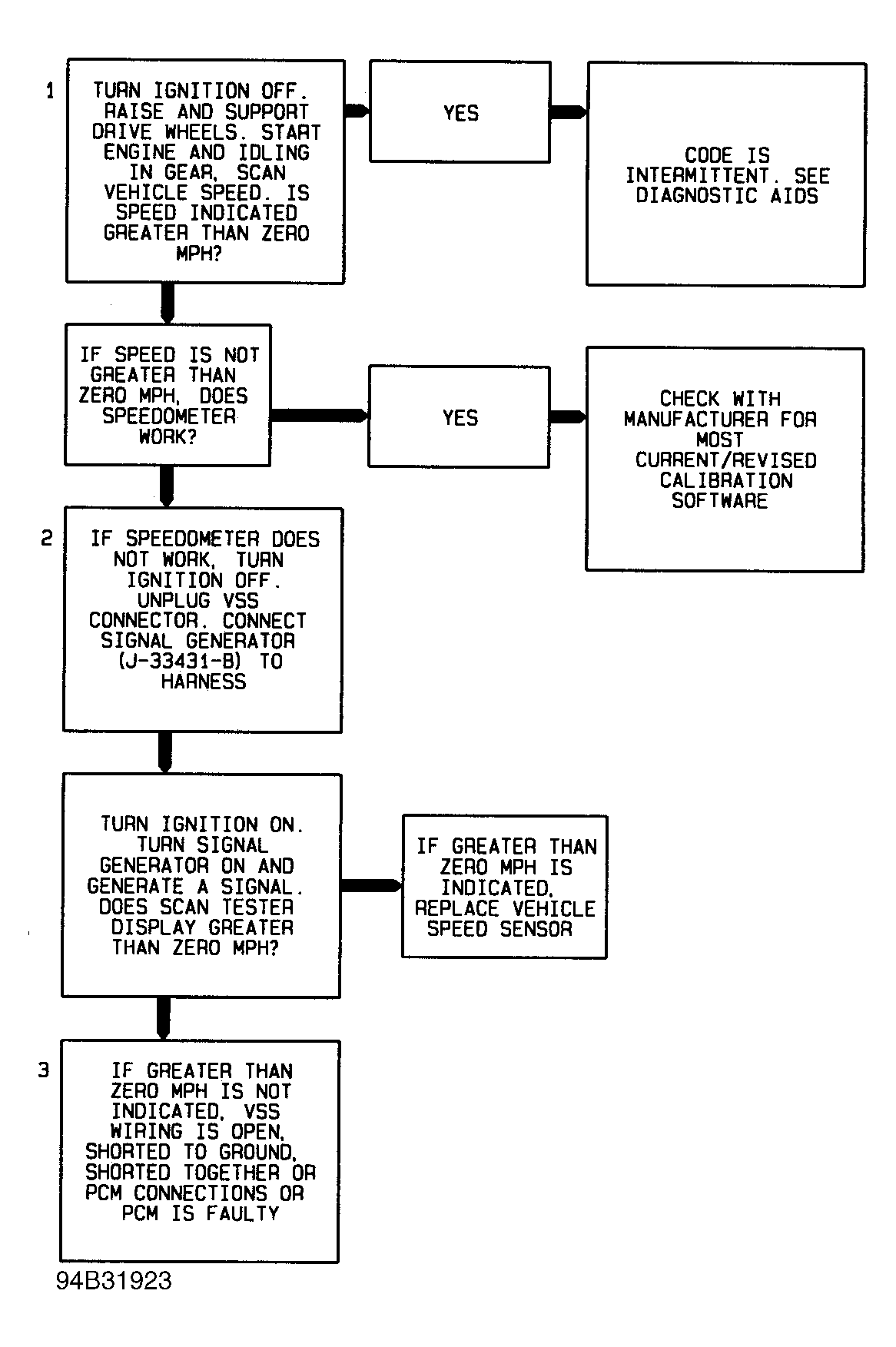

Fig 1: Code 72 - VSS Circuit Flowchart (3.4L "F", 4.3L & 5.7L)
