Diagnostic Aids

Check connections at VSS buffer and PCM. If other codes are set along with Code 16 refer to appropriate code chart for diagnosis and repair.

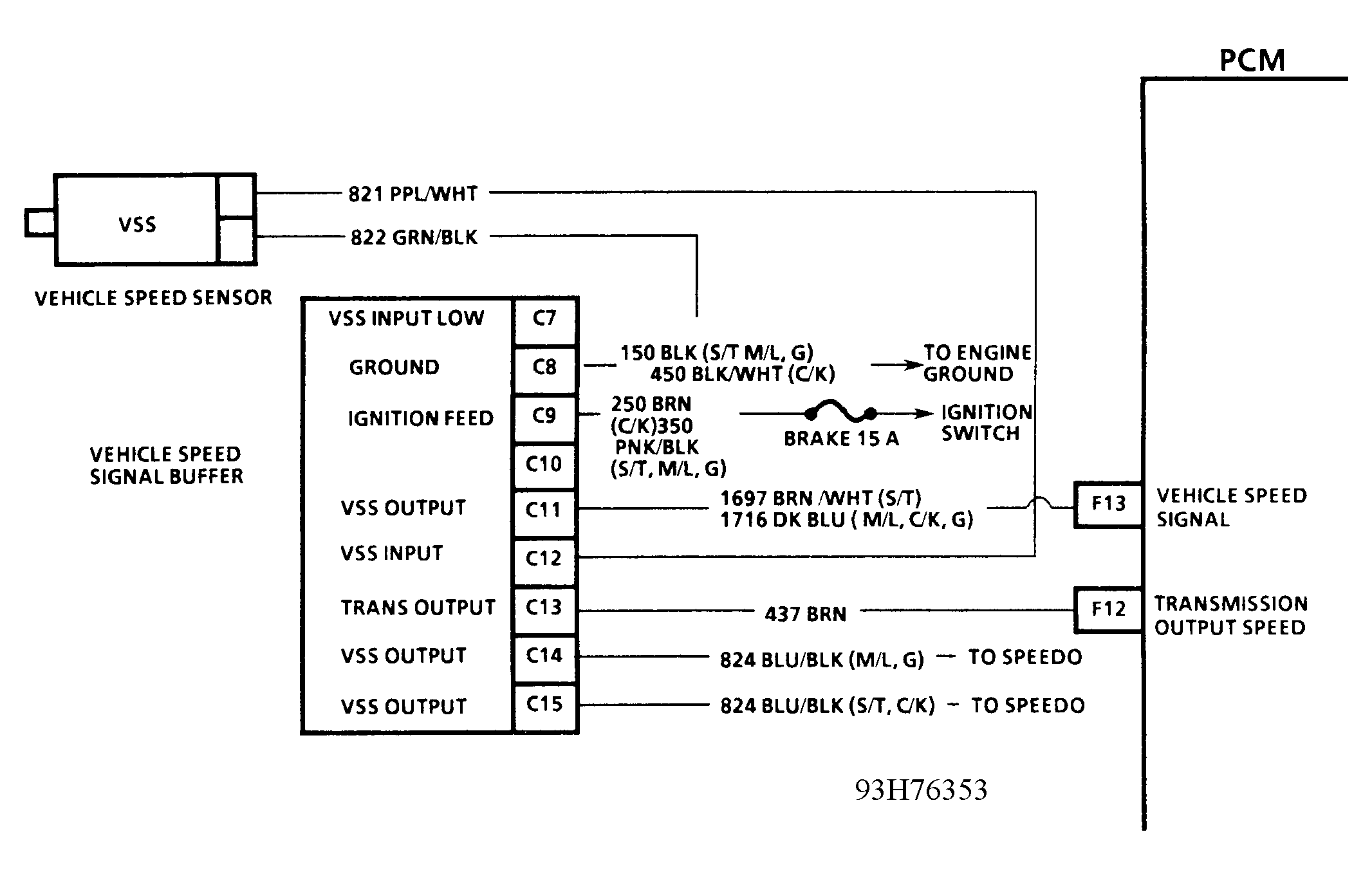

Fig 1: Code 16 - Schematic, Trans. Output Speed (5.0L & 5.7L)

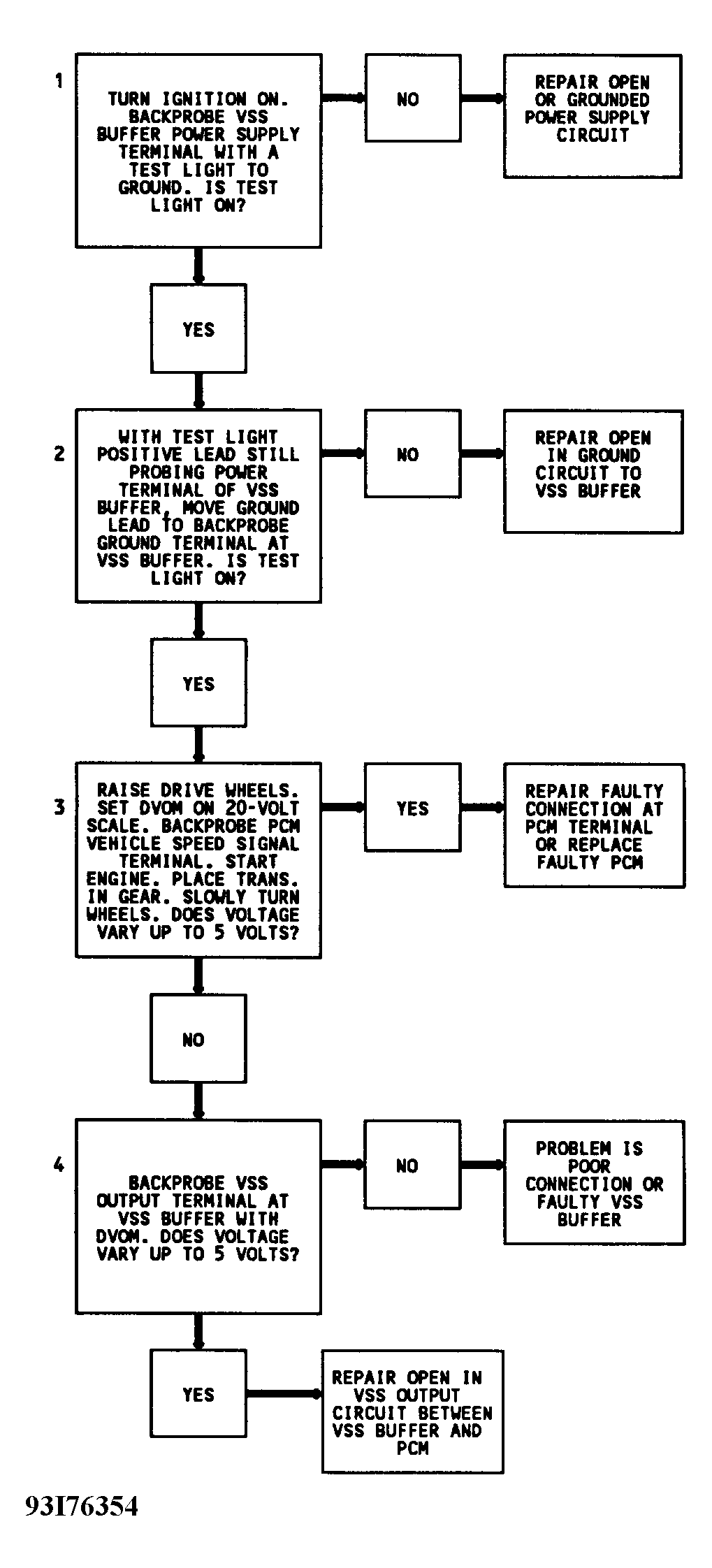

Fig 2: Code 16 - Flowchart, Trans. Output Speed (5.0L & 5.7L)
