TCC (PWM) Solenoid

This solenoid is used to control TCC apply valve. The computer sends a frequency signal to the TCC solenoid to gradually apply or release the TCC. See Fig 1.

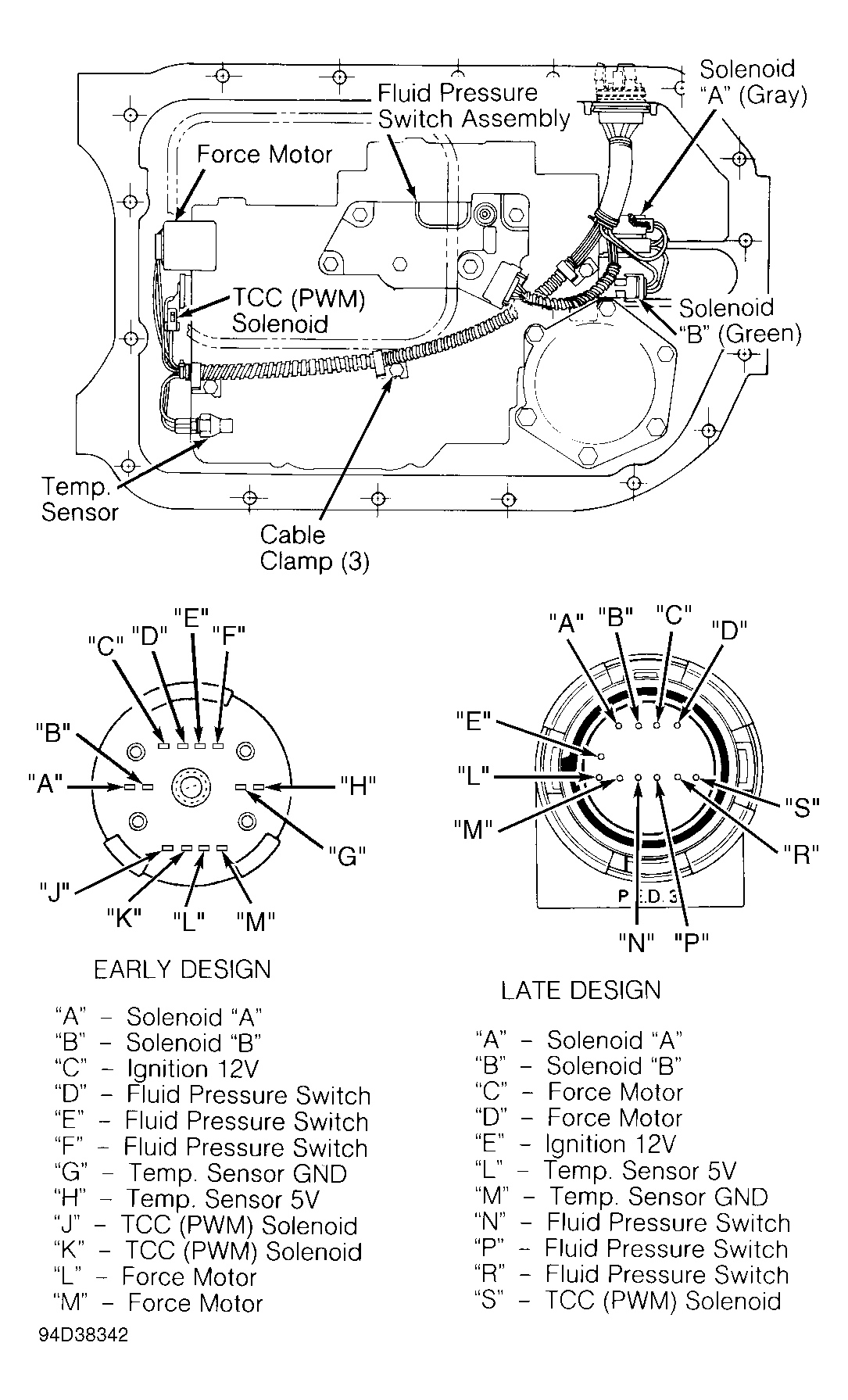

Fig 1: Locating Transmission Solenoids, Sensors & Switches

Courtesy of GENERAL MOTORS CORP.
