Diagnostic Aids

Check transmission pass-through connector. If problems are still present, check for possible internal transmission problems.

Fig 1: DTC 86 Schematic - 1993

Courtesy of GENERAL MOTORS CORP.

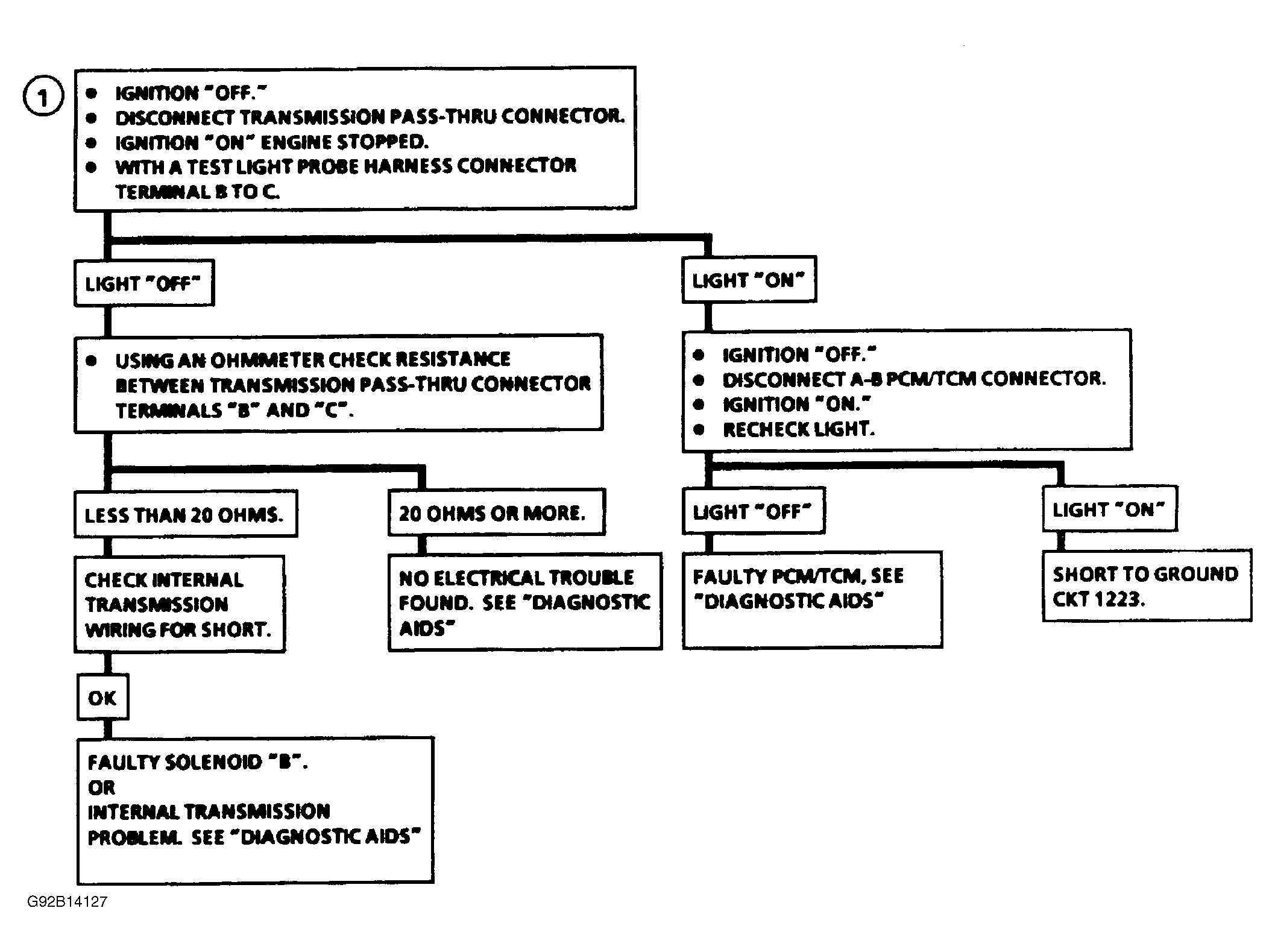

Fig 2: DTC 86 Flow Chart - 1993

Courtesy of GENERAL MOTORS CORP.
