Diagnostic Aids

A mechanical problem with the camshaft may set DTC 71. With CMP sensor removed, check camshaft for damage.

Fig 1: DTC 71 Schematic - 1994

Courtesy of GENERAL MOTORS CORP.

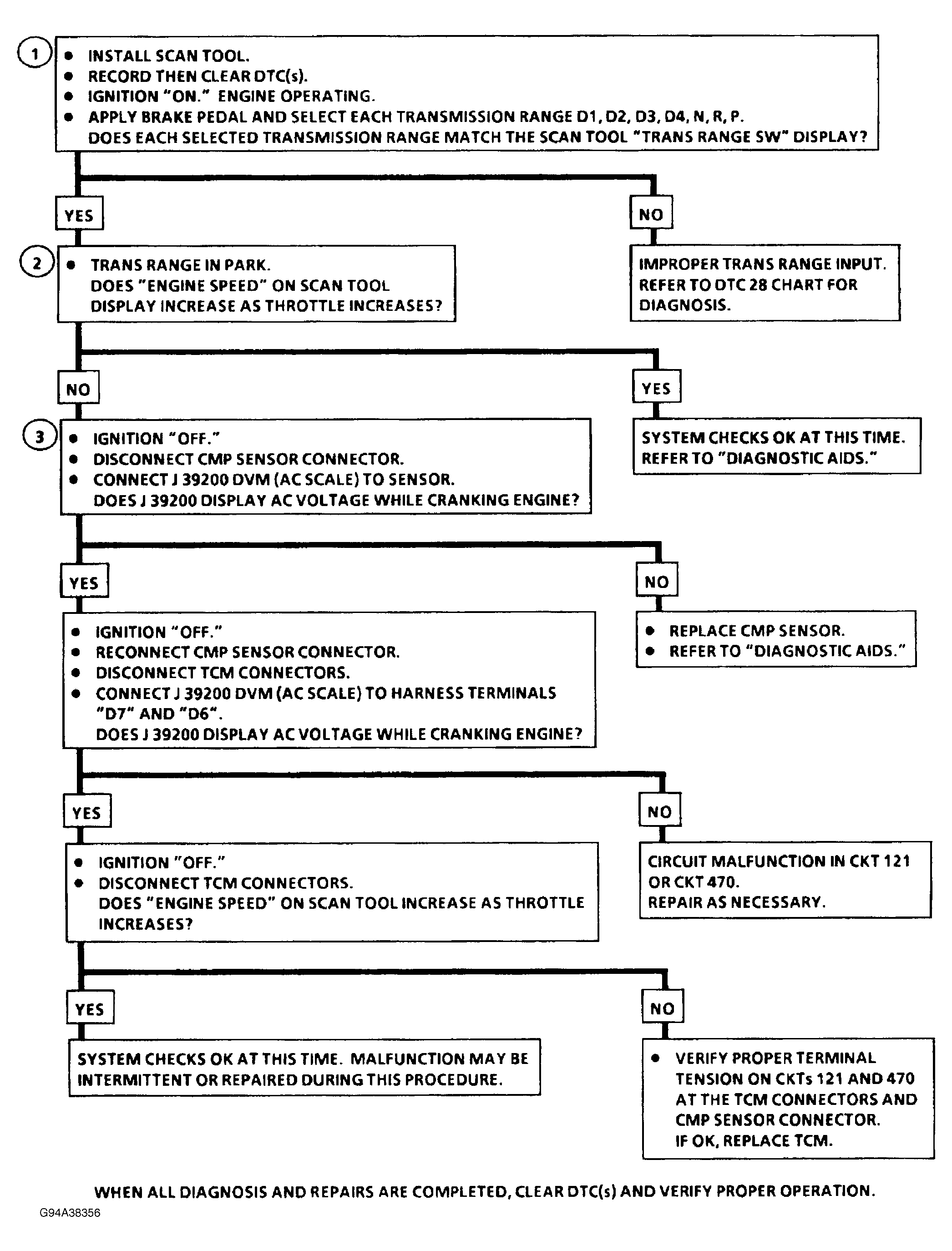

Fig 2: DTC 71 Flow Chart - 1994

Courtesy of GENERAL MOTORS CORP.
