Diagnostic Aids

If DTC will not set, use snapshot mode on scan tool to set DTC, then review data to identify malfunction.

Fig 1: DTC 63 & 64 Schematic - 1994

Courtesy of GENERAL MOTORS CORP.

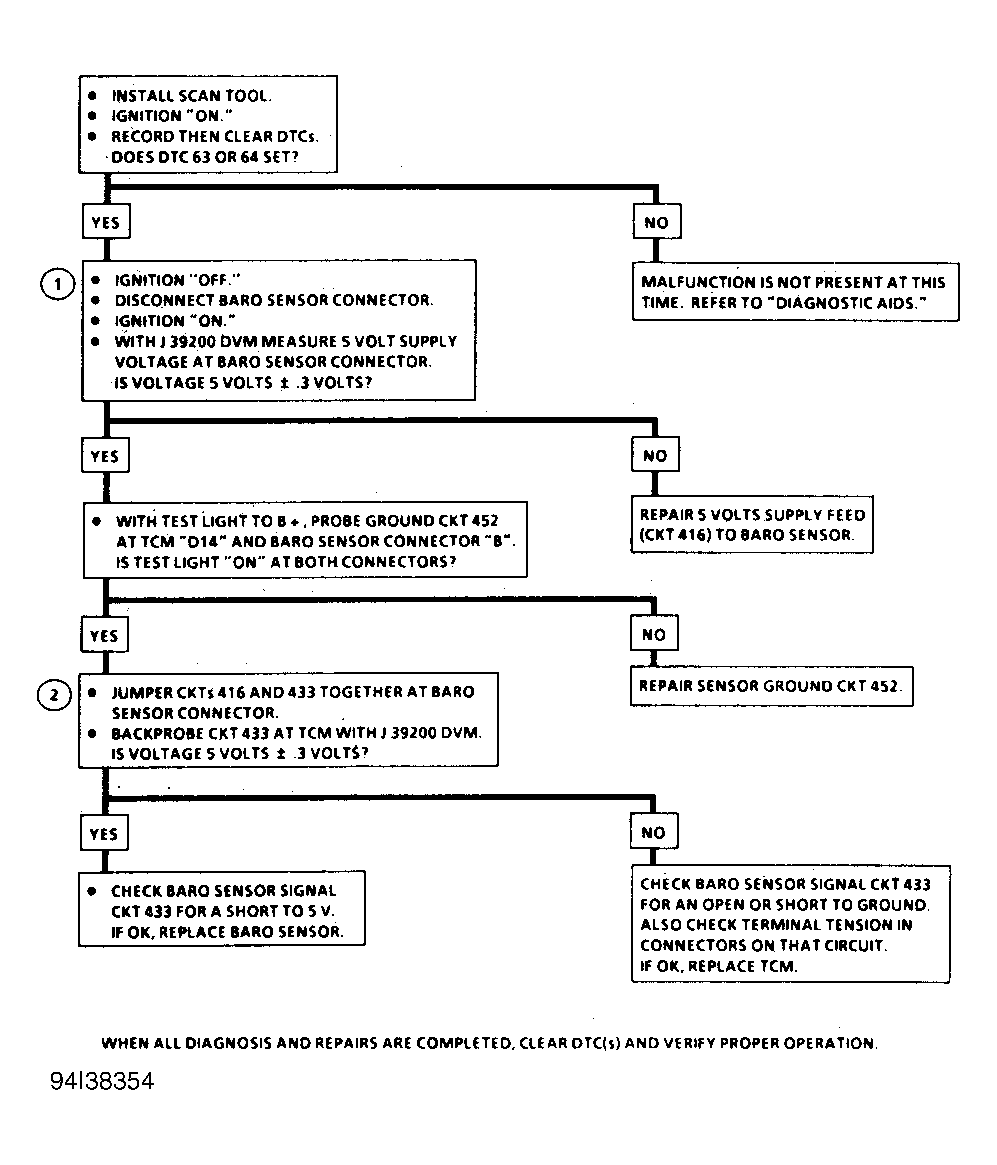

Fig 2: DTC 63 & 64 Flow Chart - 1994

Courtesy of GENERAL MOTORS CORP.
