Diagnostic Aids

Problem may be intermittent. Check brake switch connections. Check customer driving habits and/or unusual traffic conditions such as stop and go traffic conditions.

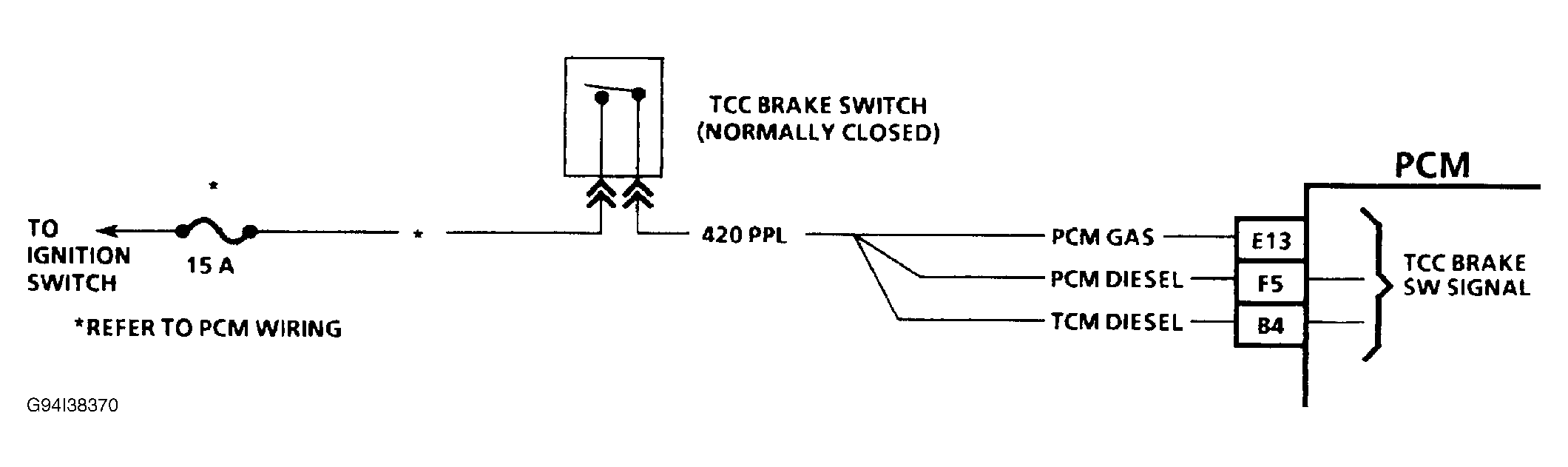

Fig 1: DTC 37 & 38 Schematic - 1994

Courtesy of GENERAL MOTORS CORP.

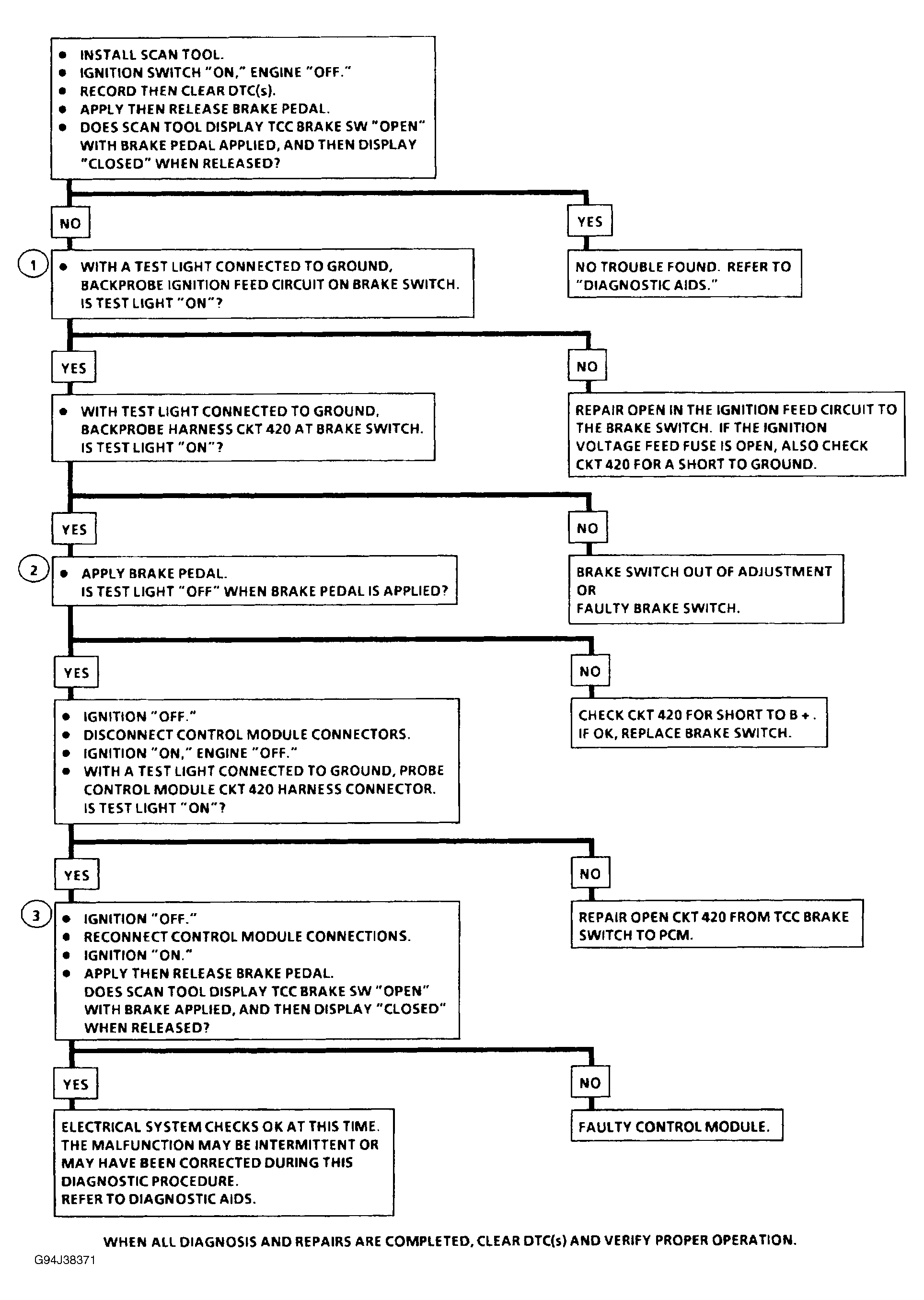

Fig 2: DTC 37 & 38 Flow Chart - 1994

Courtesy of GENERAL MOTORS CORP.
