Condenser Malfunction Or R-12 Overcharge Gauge Readings
>>
Other Symptoms
Other Symptoms
Discharge Air - Warm.
High Side Lines - Very Hot.
Sight Glass - Bubbles.

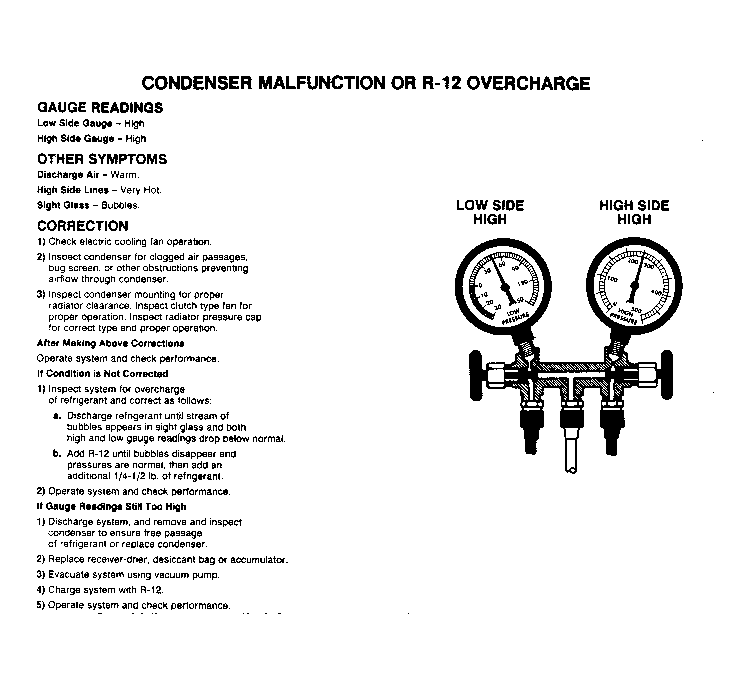

Fig 1: Condenser Malfunction or R-12 Overcharge Pressure Gauge Indications
Courtesy of FORD MOTOR CO.
