Diagnostic Aids

Check all connections, especially those at transmission pass-through connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section. While Code 24 is set, scan tester will display an RPM derived from input speed.

Fig 1: CODE 24, Schematic, VSS (4.3L S & T Util. W/ M/T & 4.3L W/ 4L60E Trans.)
G93H76353

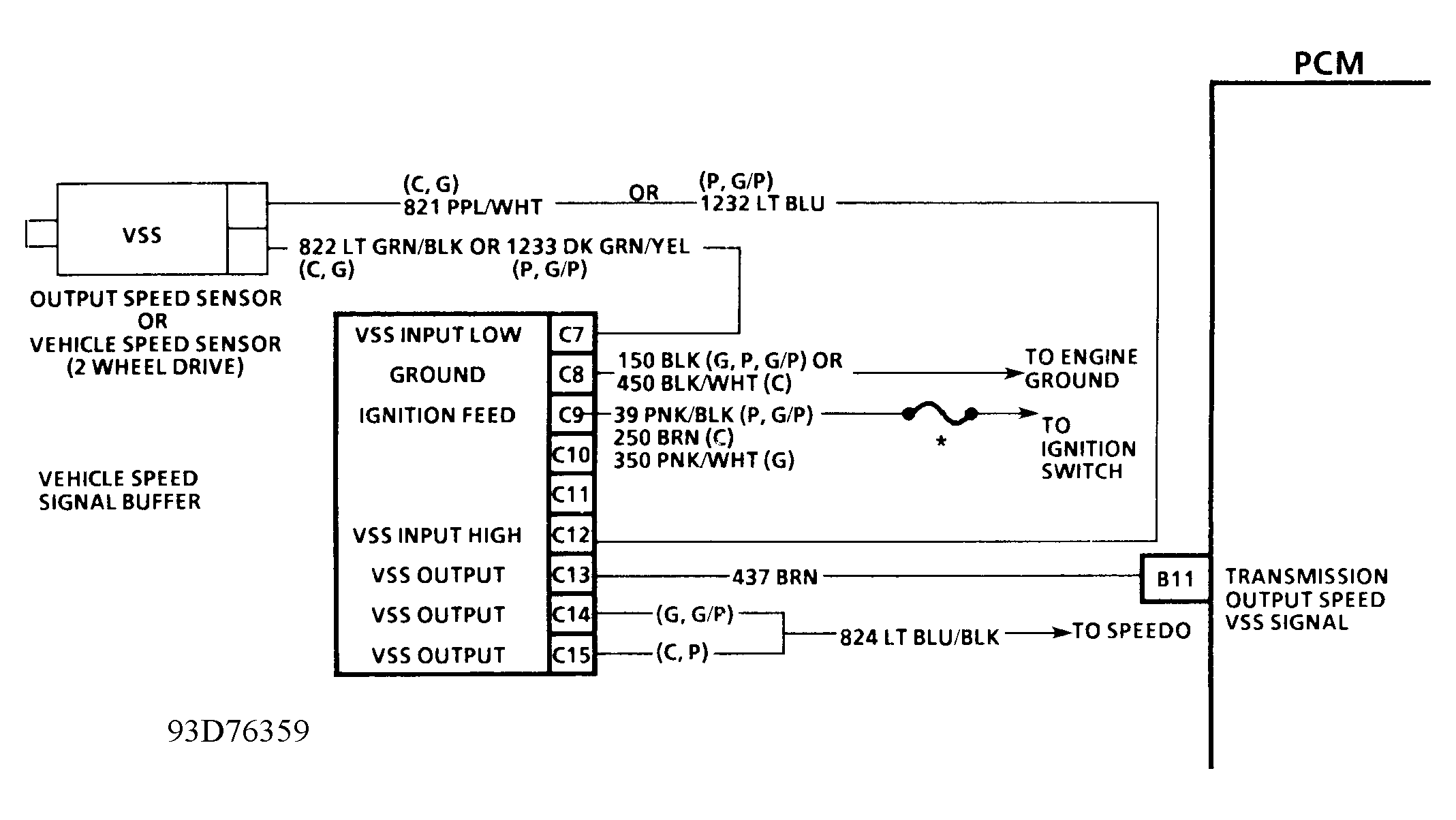

Fig 2: CODE 24, Schematic, VSS (2WD W/ 4L80E Transmission)
G93D76359
Fig 3: CODE 24, Flowchart, VSS (4.3L S & T Utility W/ M/T; 4.3L W/4L60E Trans. & 2WD W/ 4L80E Trans.)
G92G21762
