Auxiliary Coolant Fan (Removal & Installation)

NOTE: A removal & installation procedure is not provided by manufacturer. See Fig 1.

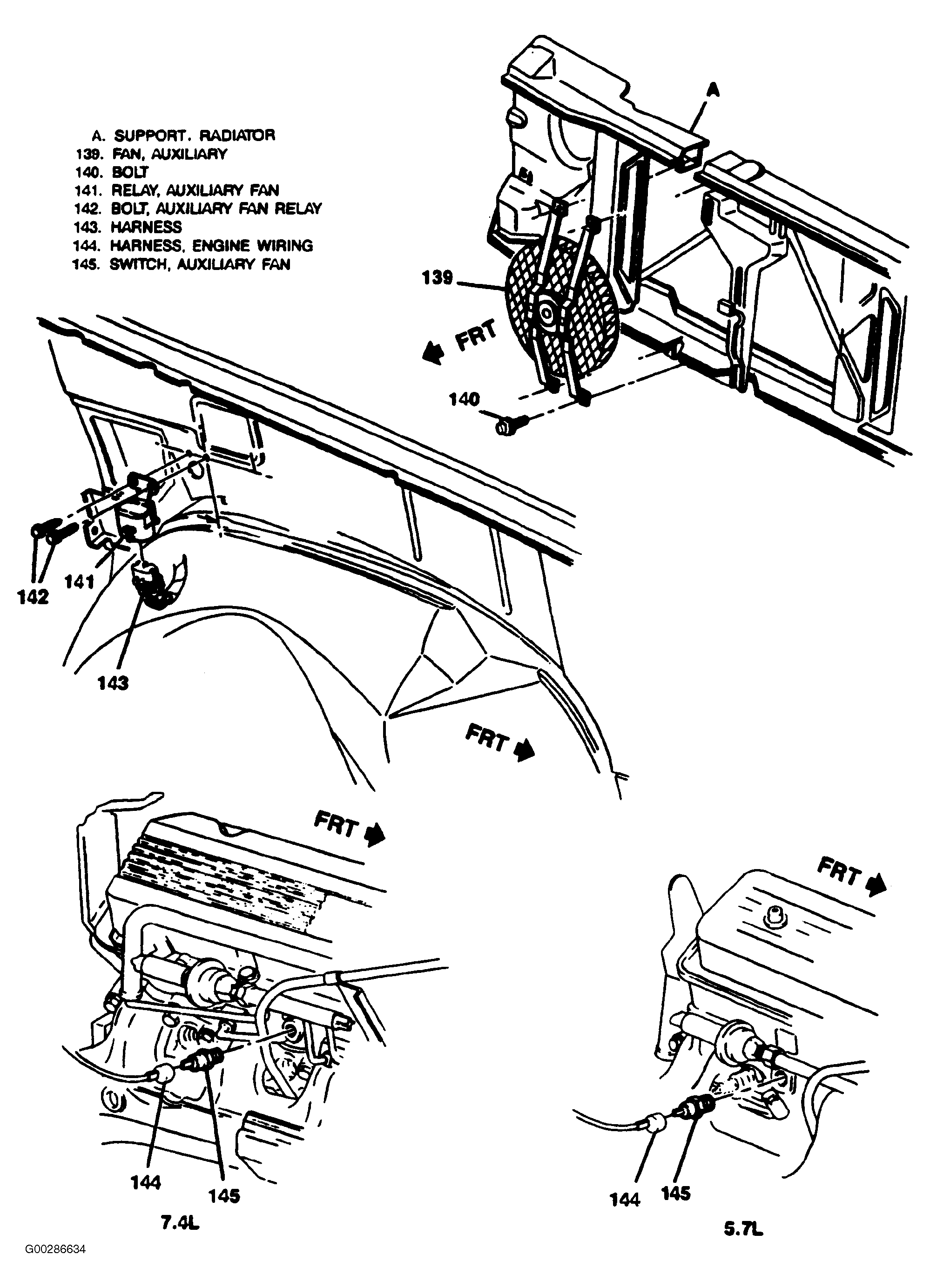

Fig 1: Identifying Auxiliary Cooling Fan Components
G00286634Courtesy of GENERAL MOTORS CORP.
