Serpentine Belt Routing ("G" Series With 4.3L, 5.0L & 5.7L)

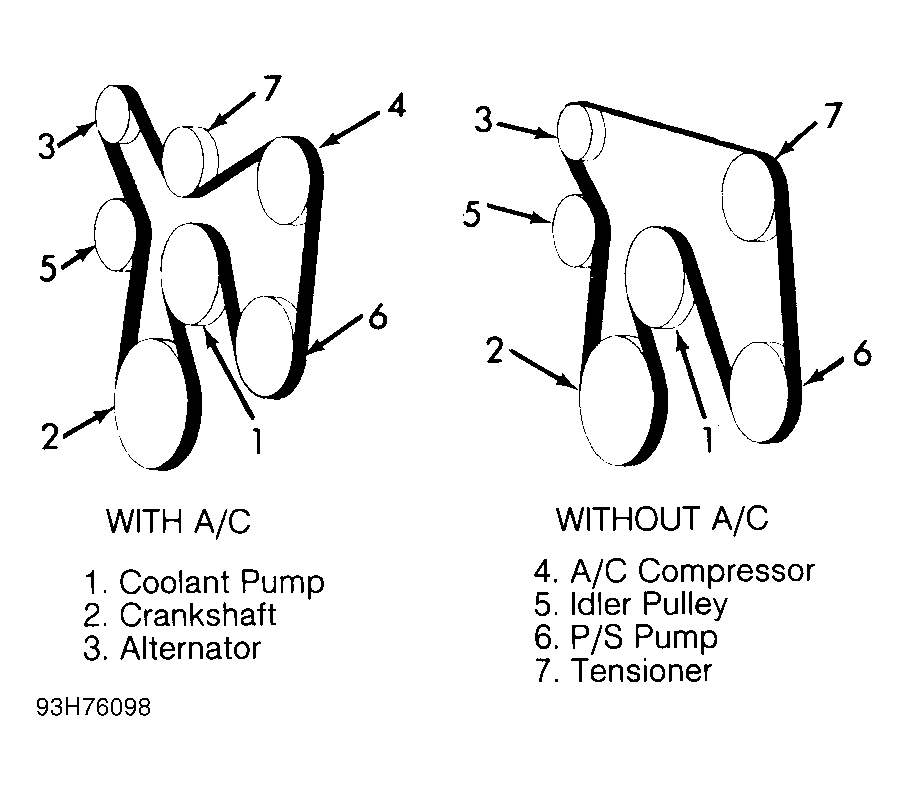

Fig 1: Serpentine Belt Routing ("G" Series With 4.3L, 5.0L & 5.7L)

G93H76098

Courtesy of GENERAL MOTORS CORP.
