Diagnostic Aids

Solenoid Coil resistance must measure more than 20 ohms. Less resistance will cause early failure of ECM driver. Before installing a replacement ECM, use a DVOM to check solenoid coil resistance of all ECM controlled solenoids and relays. Replace any solenoid or relay that measures less than 20 ohms resistance.

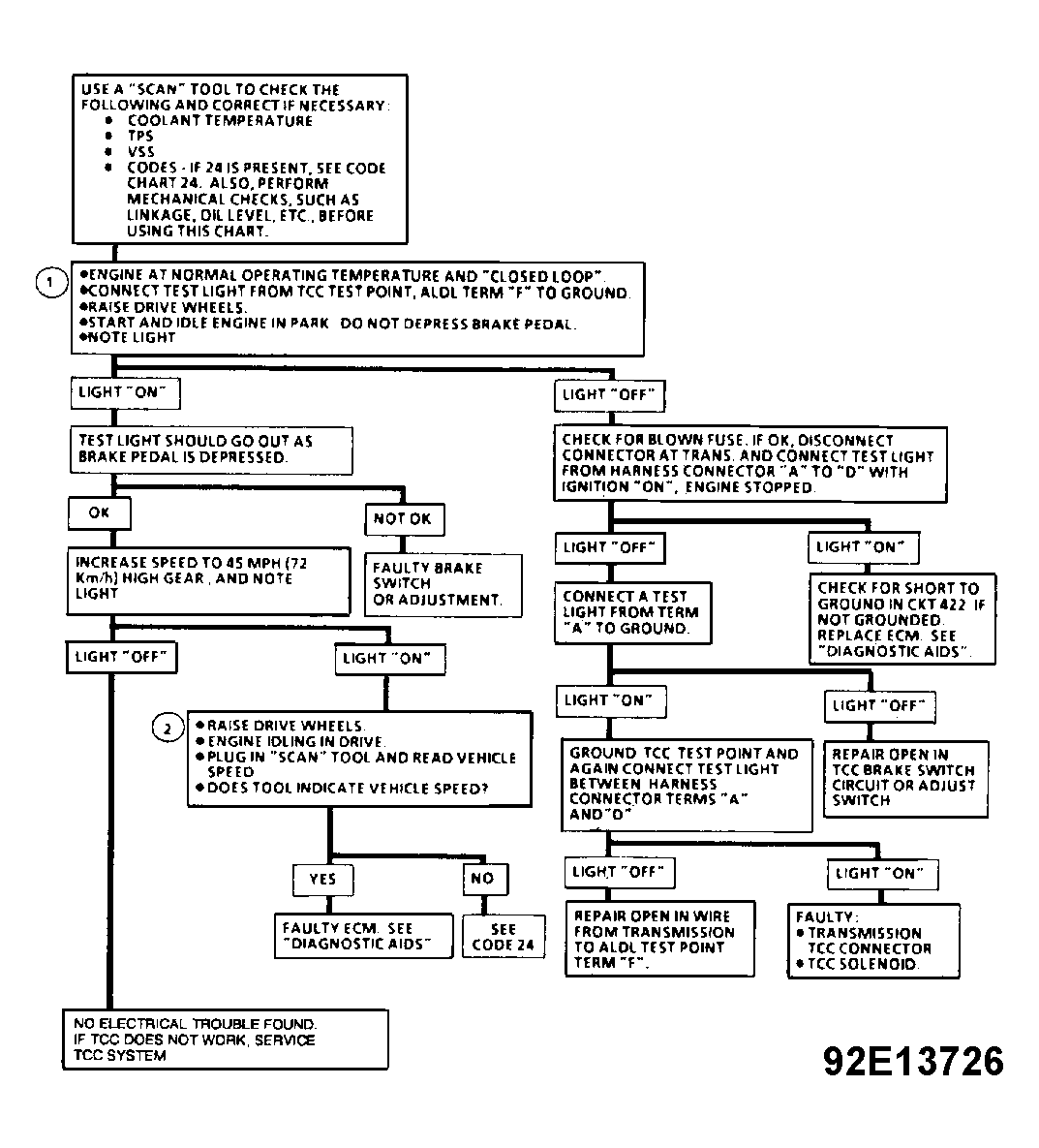

Fig 1: Chart C-8, TCC Troubleshooting Chart (4.3L Turbo PFI)
G92E13726Courtesy of GENERAL MOTORS CORP.
