Diagnostic Aids

If circuit No. 434 indicates Park/Neutral switch grounded while in Drive, EGR would be inoperative, resulting in possible detonation.

If circuit No. 434 always indicates Drive (open), a drop in idle may exist when gear selector is moved into Drive.

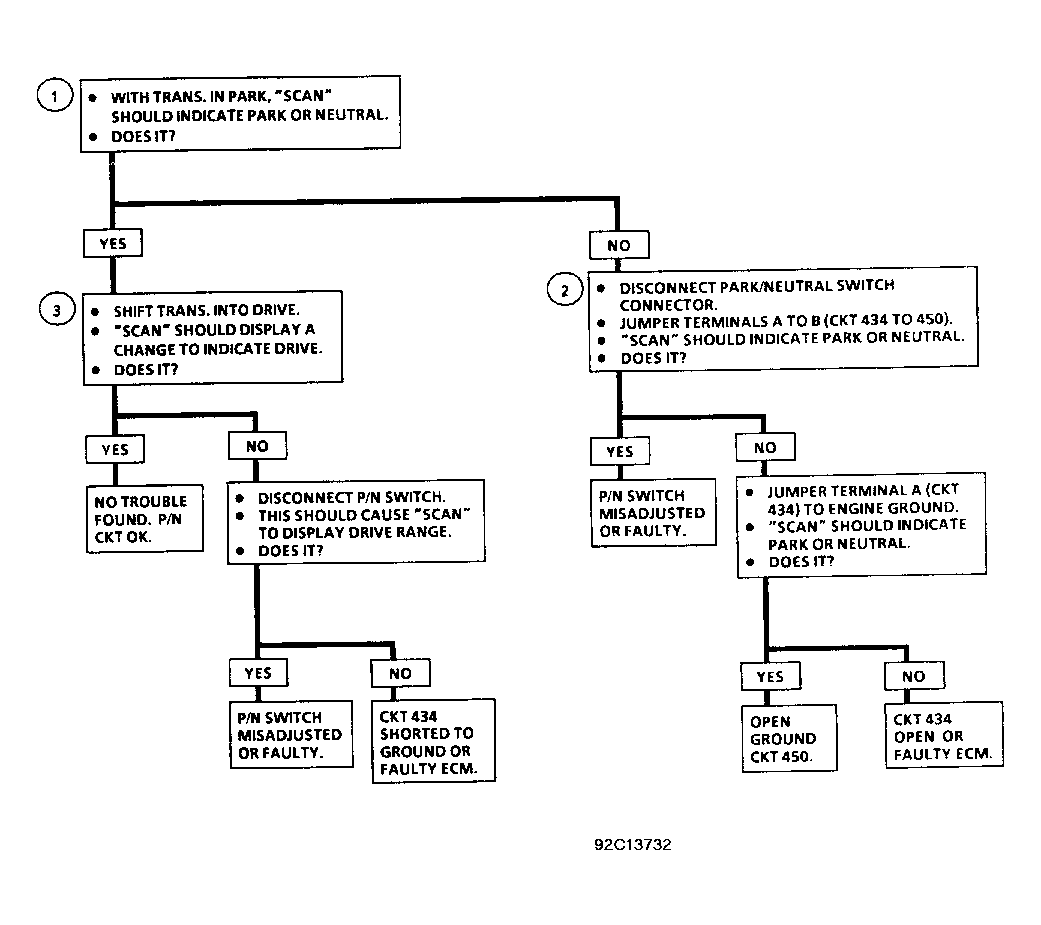

Fig 1: Chart C-1A, Park/Neutral Switch Troubleshooting (Lt. Trucks & Vans)
G92C13732Courtesy of GENERAL MOTORS CORP.
