Diagnostic Aids

A faulty or misadjusted park/neutral switch may set a false Code 24. Use "Scan" tester and check for proper signal in Drive, while wiggling shifter.

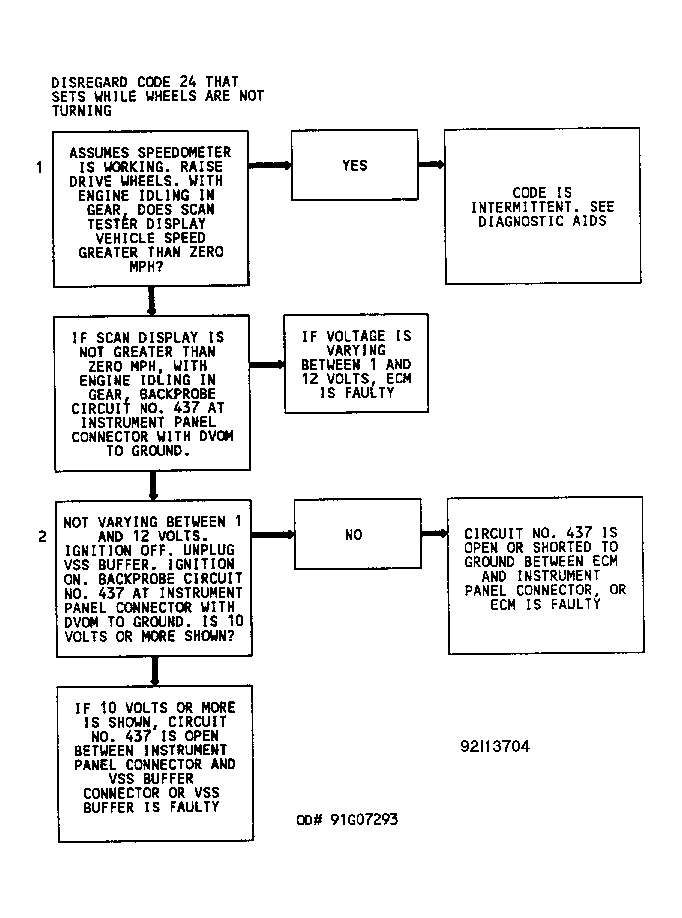

Fig 1: Code 24 Troubleshooting Diagram (5.0L & 5.7L TBI B, D & F Bodies)
G92I13704Courtesy of GENERAL MOTORS CORP.
