Diagnostic Aids

An engine coolant thermostat that is stuck open or opens at too low a temperature may result in an inoperative TCC.

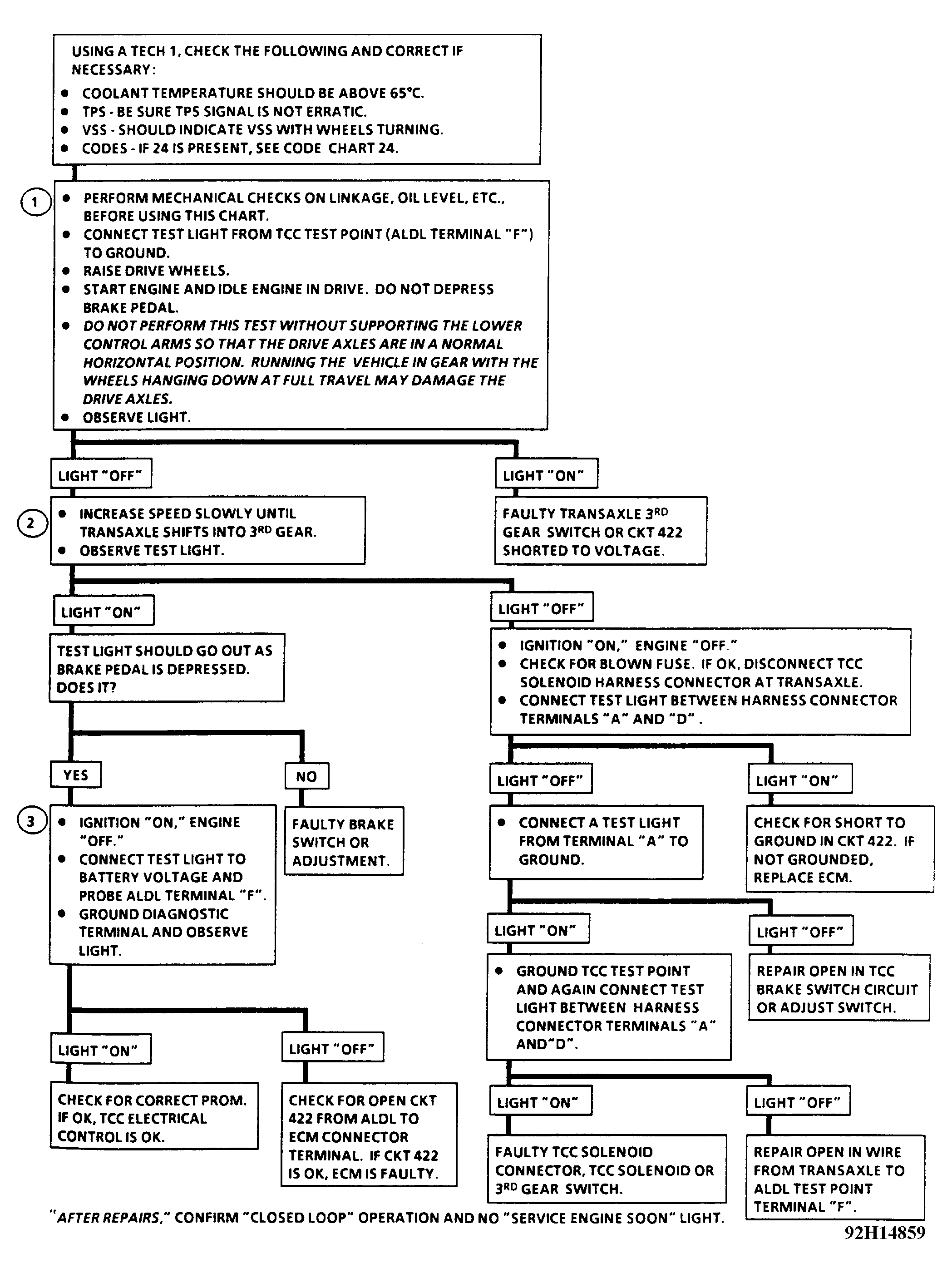

Fig 1: Chart C-8A, TCC Troubleshooting Chart (2.5L TBI A & N Bodies)
G92H14859Courtesy of GENERAL MOTORS CORP.
