Diagnostic Aids

An engine coolant thermostat that is stuck open or opens at too low a temperature may result in a delayed TCC operation.

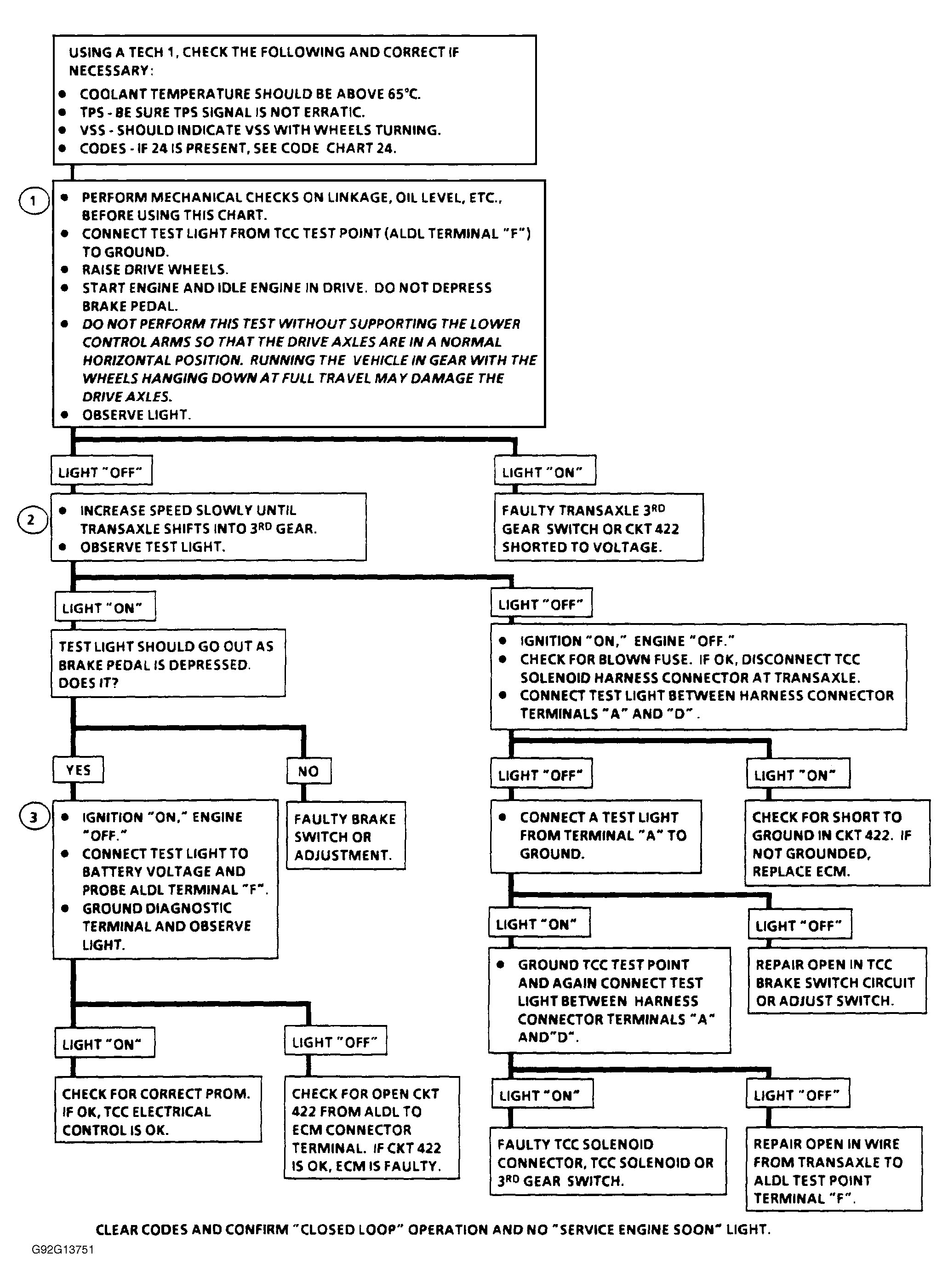

Fig 1: Chart C-8A, Troubleshooting Chart (1.6L & 2.2L TBI T & J Bodies)
G92G13751Courtesy of GENERAL MOTORS CORP.
