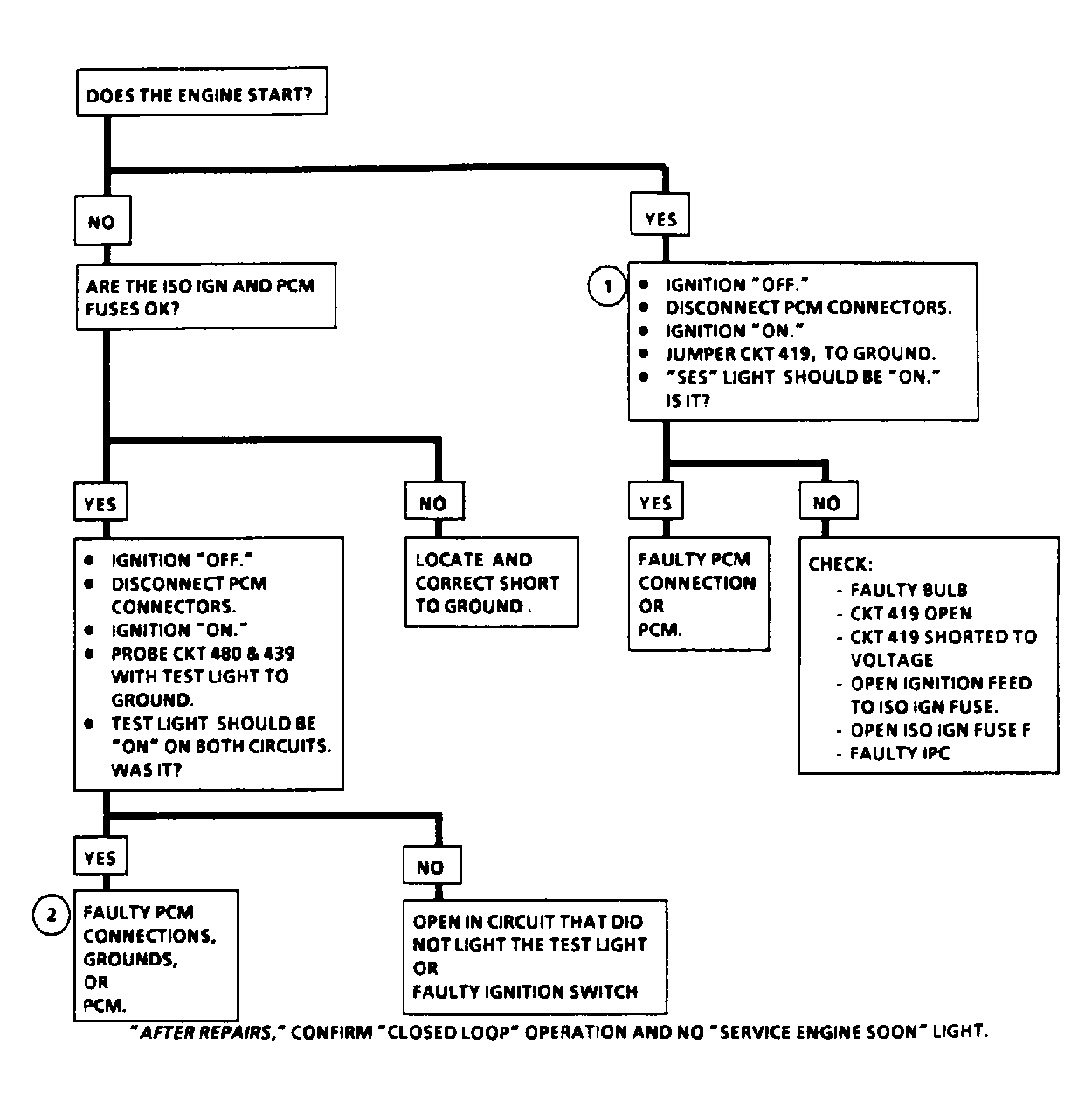

Diagnostic Aids
If engine runs okay, check:
- Faulty light bulb
- PCM drive circuit open
- 10-amp ignition fuse open
If engine cranks, but will not run:
- Continuous battery-fusible link open
- Ignition feed to PCM open
- Open fuse No. 5 in console relay center
- Poor connection to PCM
