Diagnostic Aids

Check all connections, especially those at the transmission pass-through connector. While Code 24 is set, Scan tester will display an RPM derived from input speed.

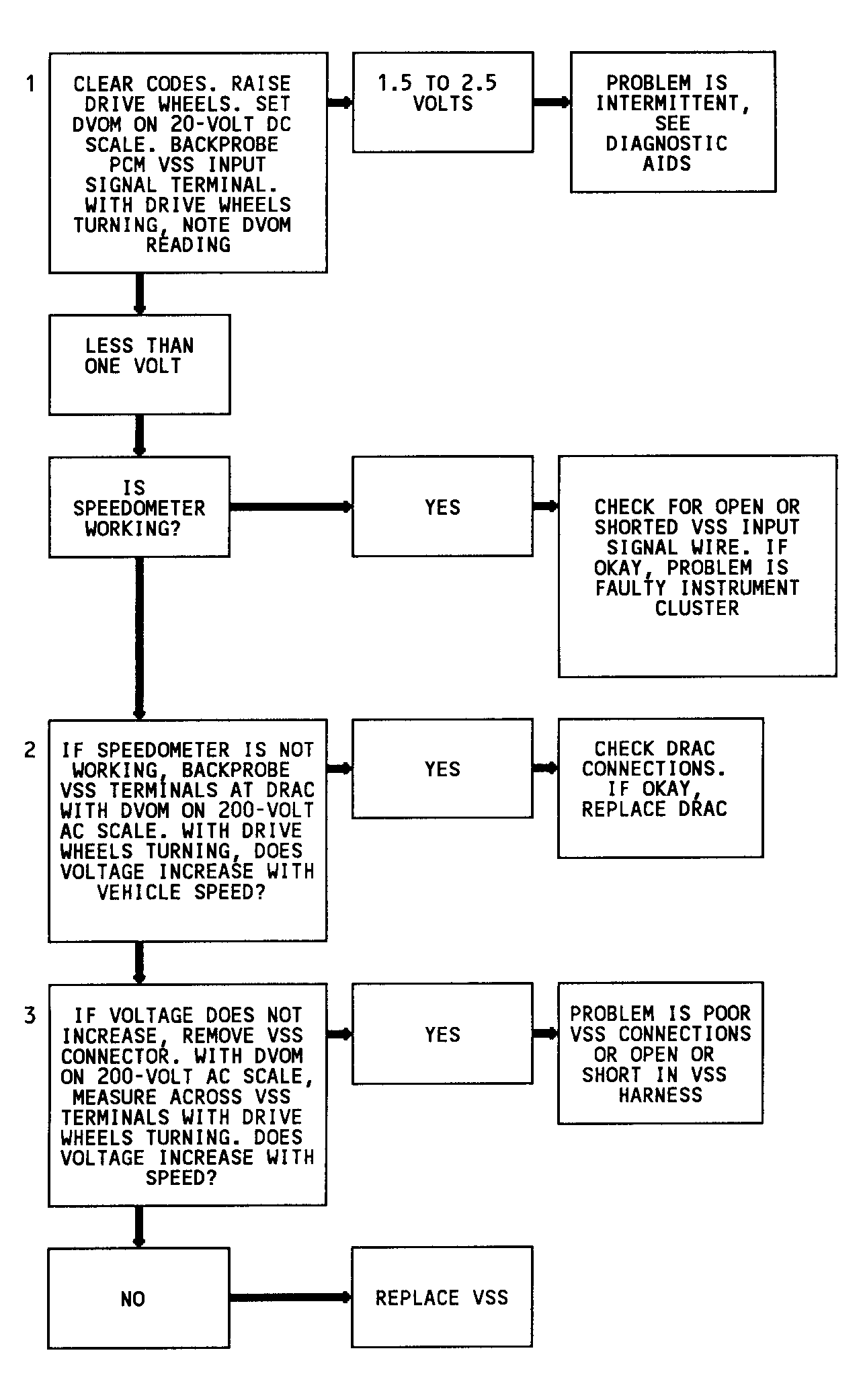

Fig 1: Code 24, VSS Troubleshooting Chart (2WD W/4L80-E Trans. Except C & K Series)
G91E13668Courtesy of GENERAL MOTORS CORP.
