Diagnostic Aids

Check or poor connections at PCM/TCM, especially at transmission pass-thru connector.

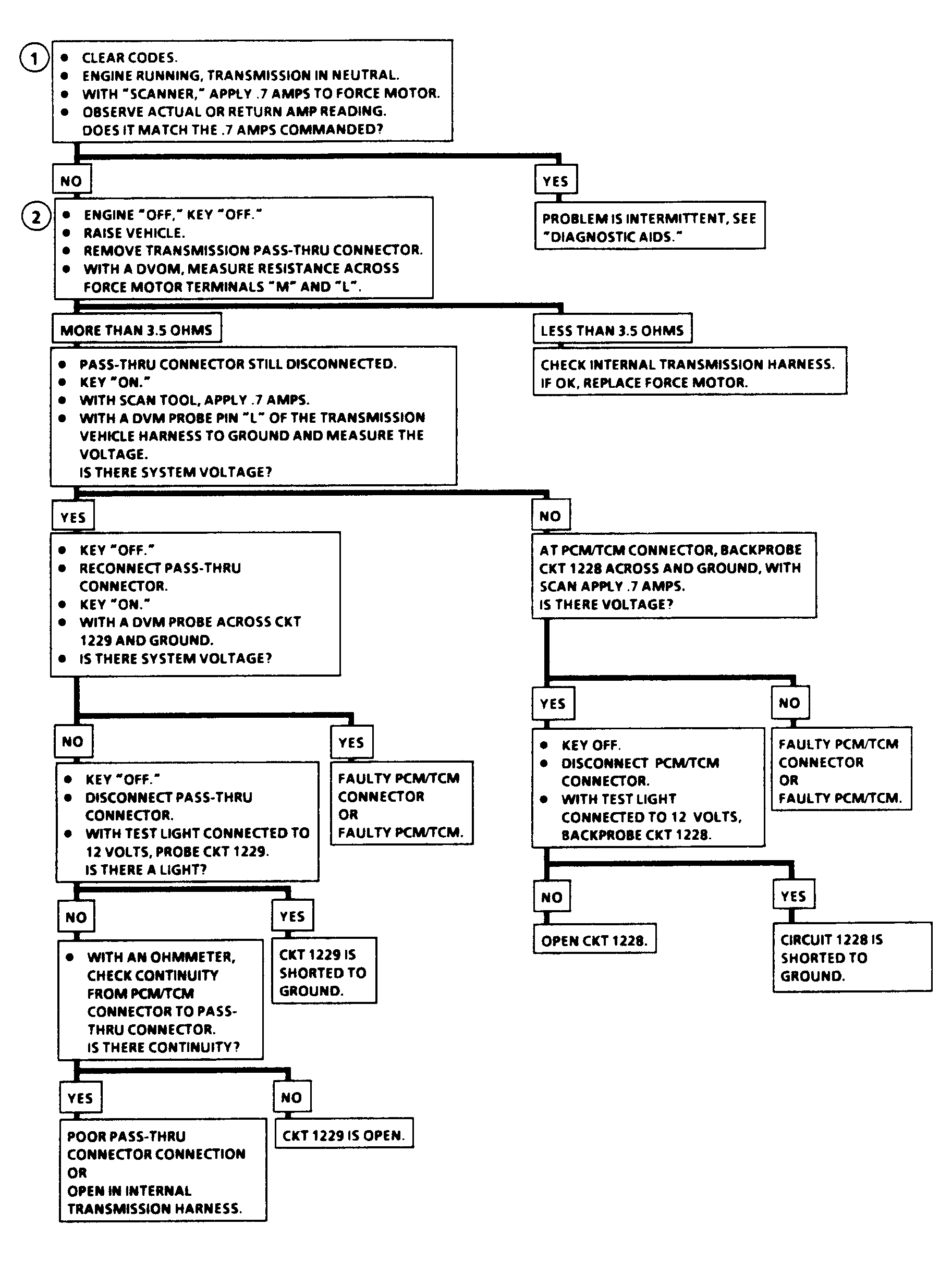

Fig 1: Force Motor Troubleshooting Chart (Lt. Truck)

G91D13709

Courtesy of GENERAL MOTORS CORP.
