Diagnostic Aids

Check transmission pass-through connector. If problems are still present, check for possible internal transmission problems.

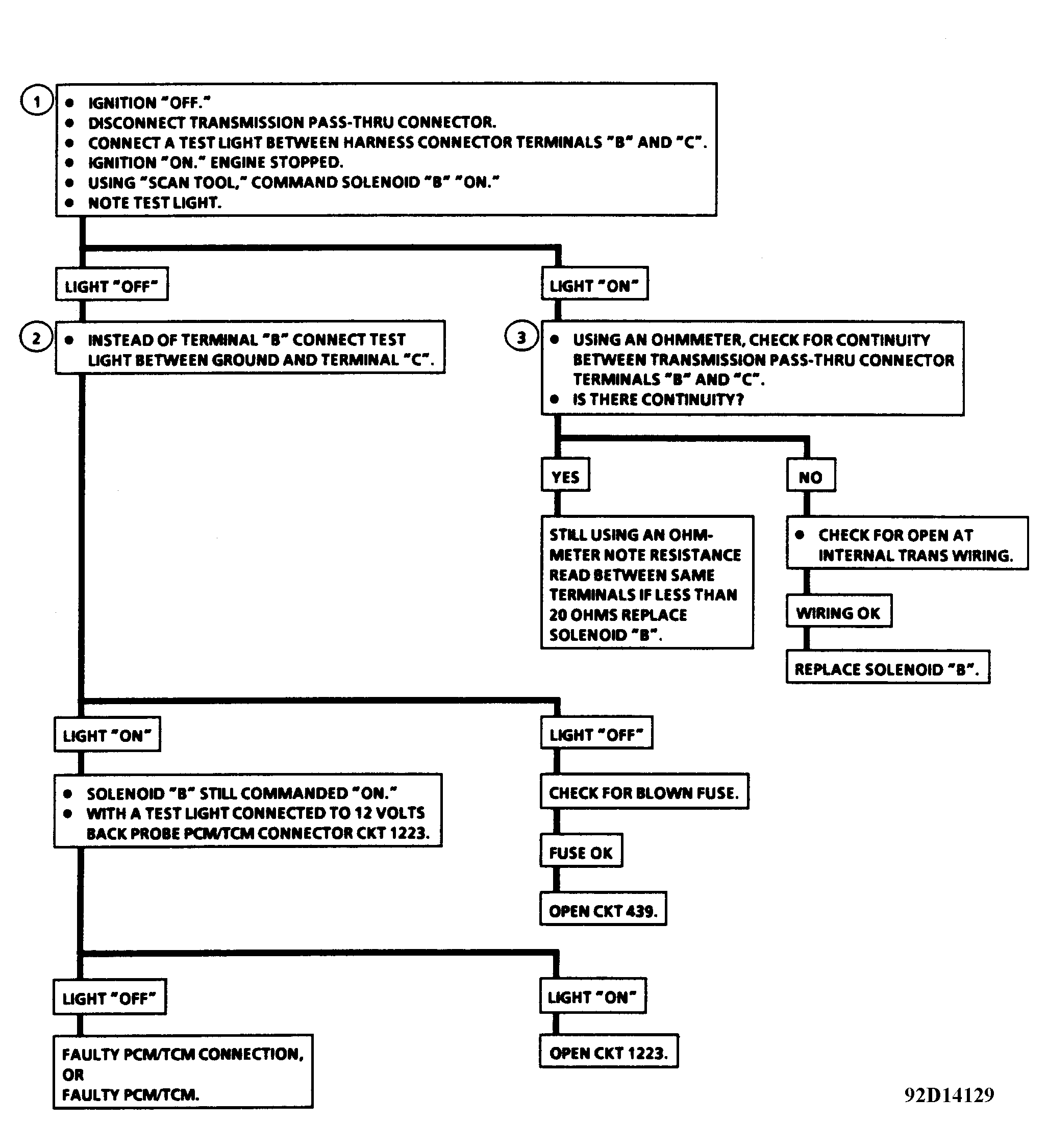

Fig 1: Code 87 Troubleshooting Diagnostic Flow Chart
G92D14129Courtesy of GENERAL MOTORS CORP.
