Diagnostic Aids

Check transmission pass-through connector. If problems are still present, check for possible internal transmission problems.

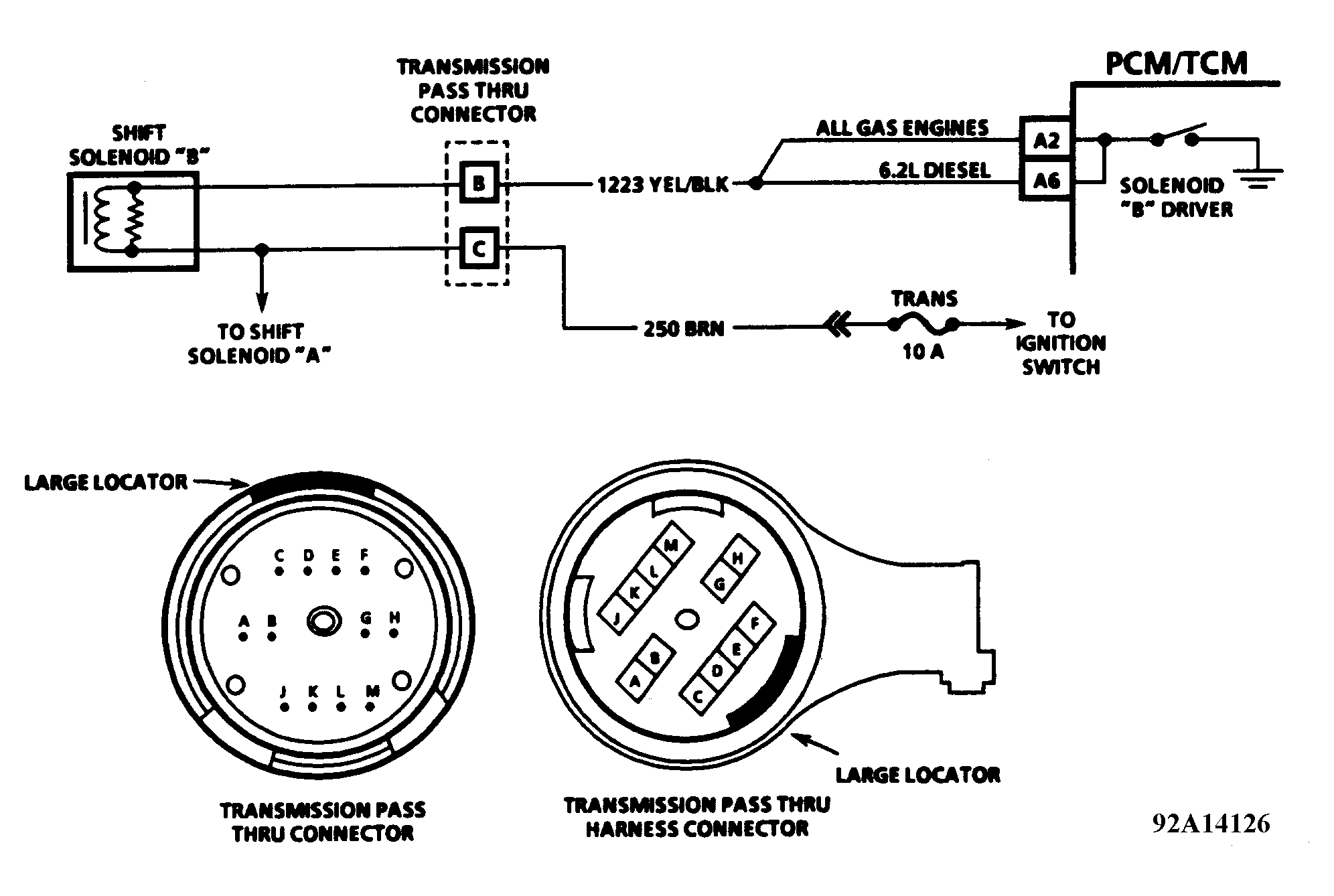

Fig 1: Code 86 Circuit Diagram

Courtesy of GENERAL MOTORS CORP.

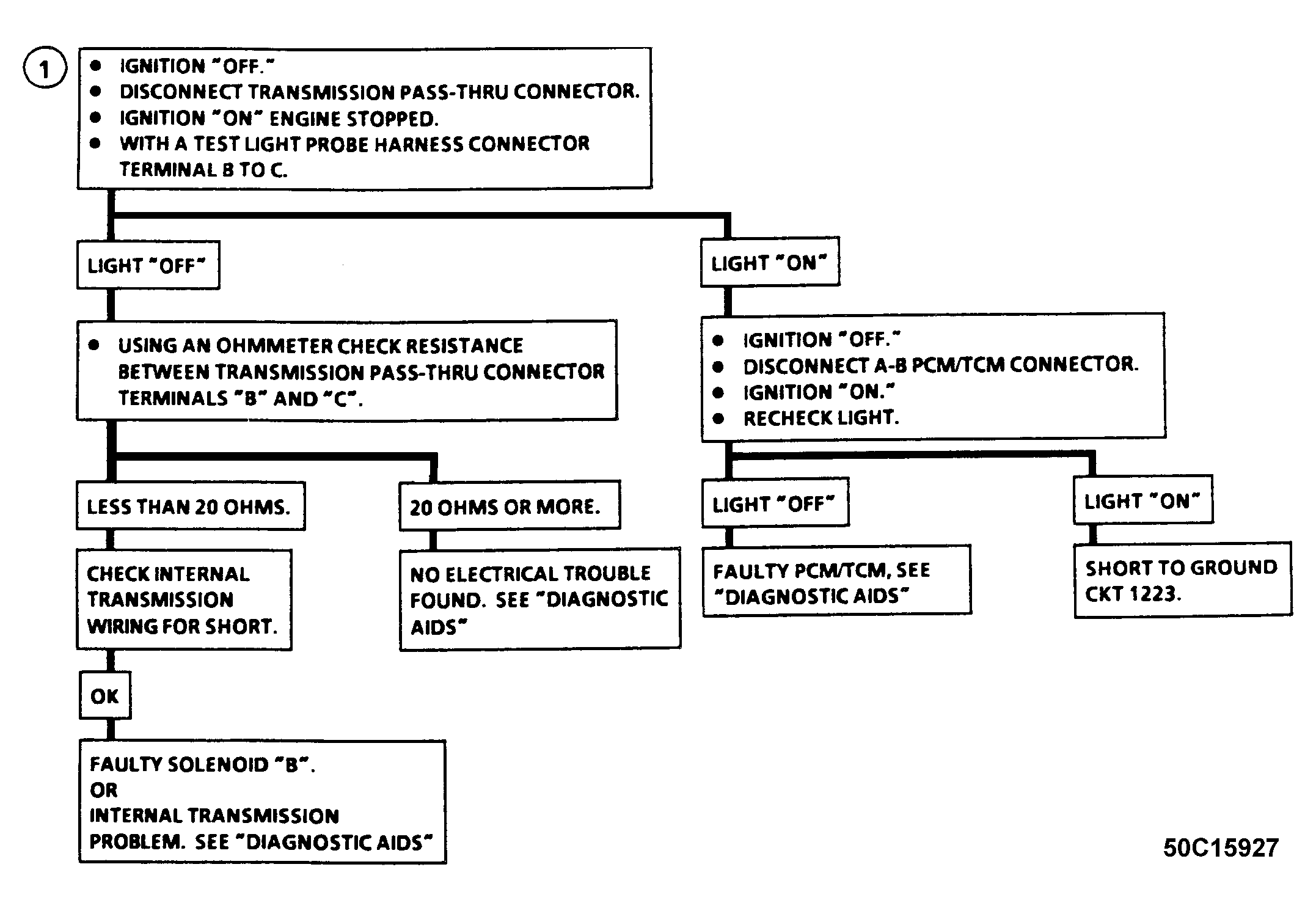

Fig 2: Code 86 Troubleshooting Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
