Diagnostic Aids

Check transmission pass-through connector and PCM/TCM for poor connections. Factory-installed PCM has an internal circuit breaker and should not need to be replaced.

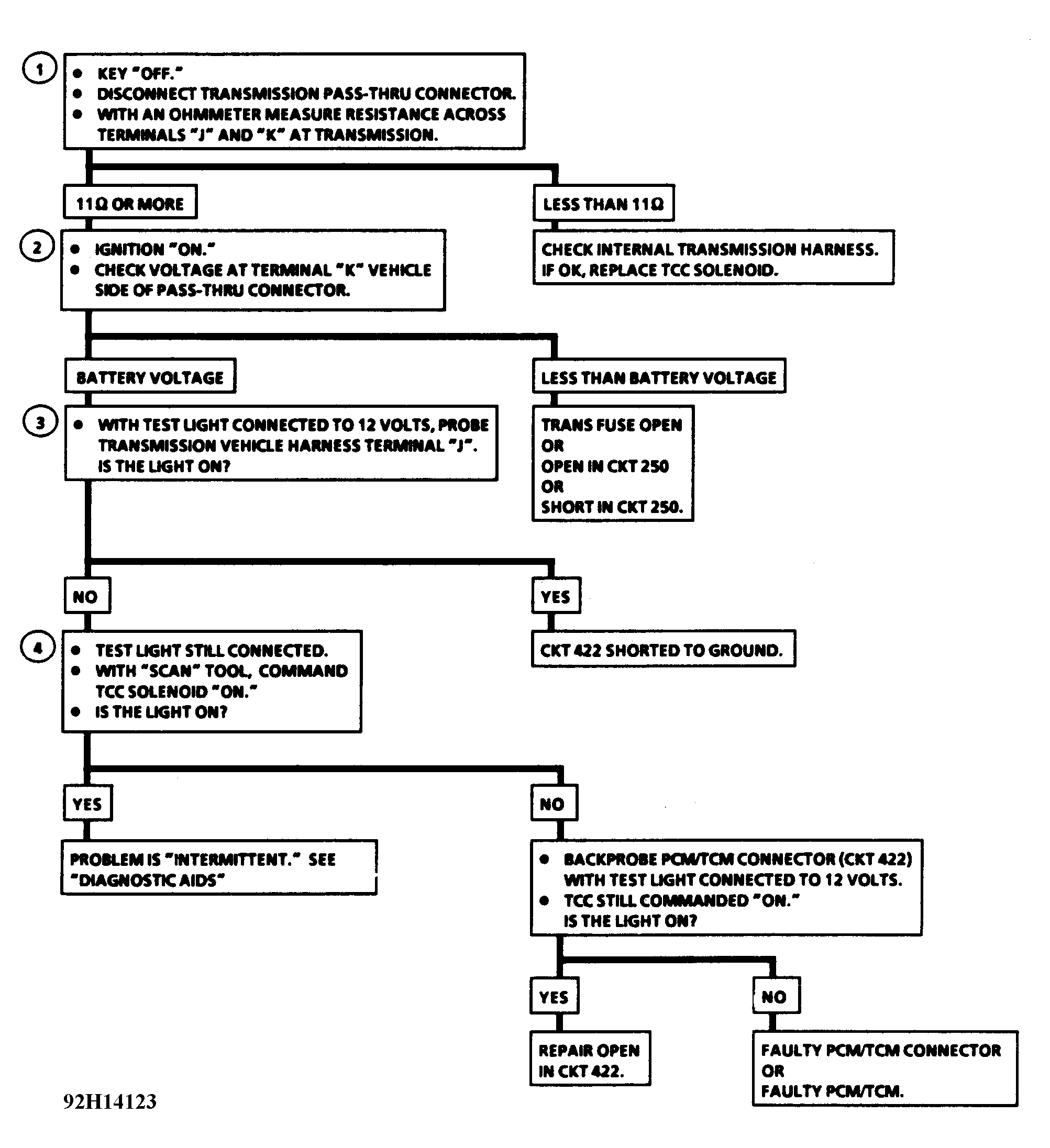

Fig 1: Code 83 Troubleshooting Diagnostic Flow Chart
G92H14123Courtesy of GENERAL MOTORS CORP.
