Diagnostic Aids

Check transmission pass-through connector and PCM/TCM for poor connections. Factory-installed PCM has an internal circuit breaker and should not need to be replaced.

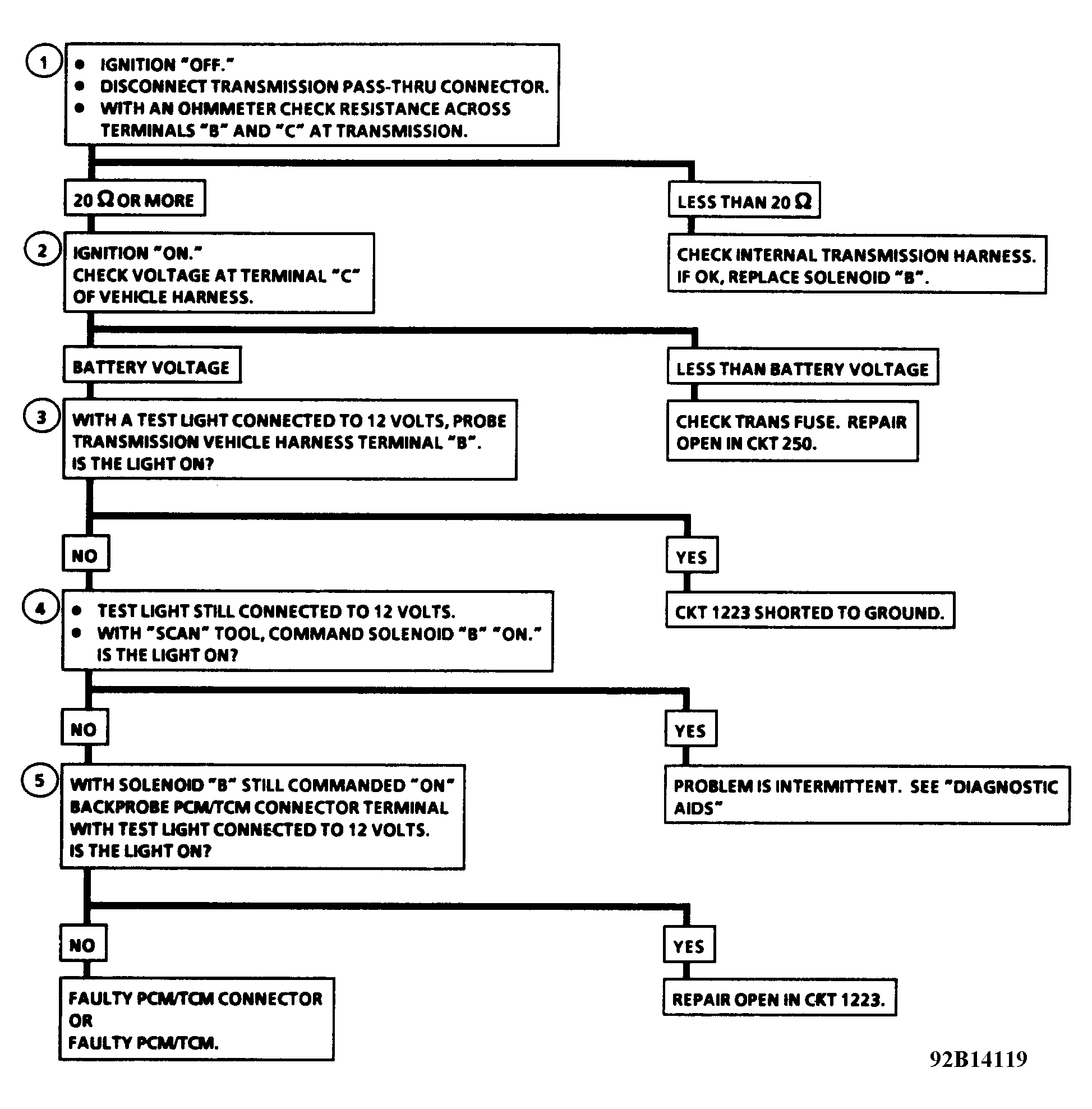

Fig 1: Code 81 Troubleshooting Diagnostic Flow Chart
G92B14119Courtesy of GENERAL MOTORS CORP.
