Diagnostic Aids

Very carefully check the pass-through connector at transmission. If input sensor is not working at start-up, output sensor will read zero.

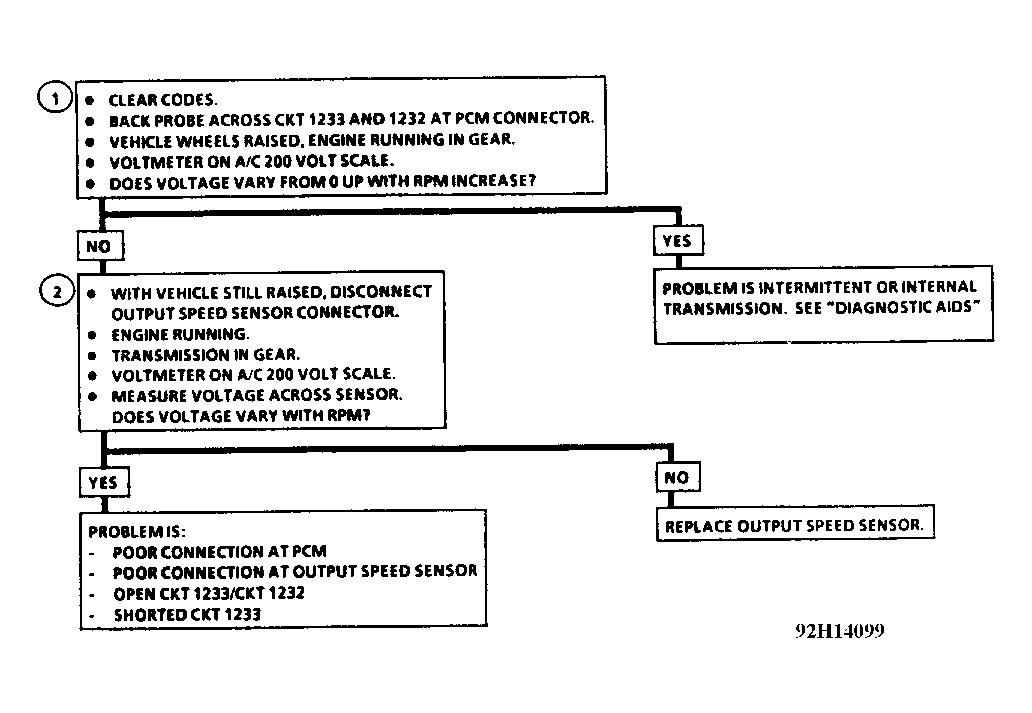

Fig 1: Code 24 Troubleshooting Flow Chart (1992 4WD)
G92H14099Courtesy of GENERAL MOTORS CORP.
