Diagnostic Aids

Very carefully check the pass-through connector at transmission.

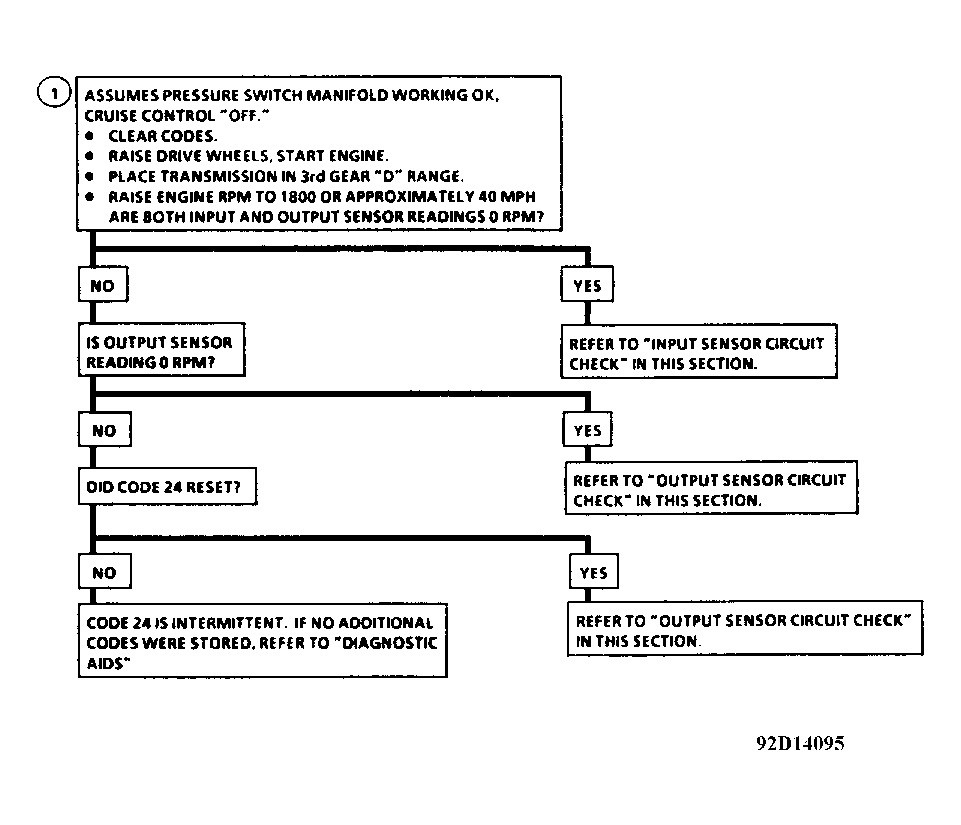

Fig 1: Code 24 Troubleshooting Flow Chart (1991 2WD - Except "C" & "K" Series)

G92D14095

Courtesy of GENERAL MOTORS CORP.
