Diagnostic Aids

Very carefully check the pass-through connector at transmission. If input sensor is not working at start-up, output sensor will read zero. If Code 24 is set in computer memory, "Scan" tool will read engine RPM (input sensor signal).

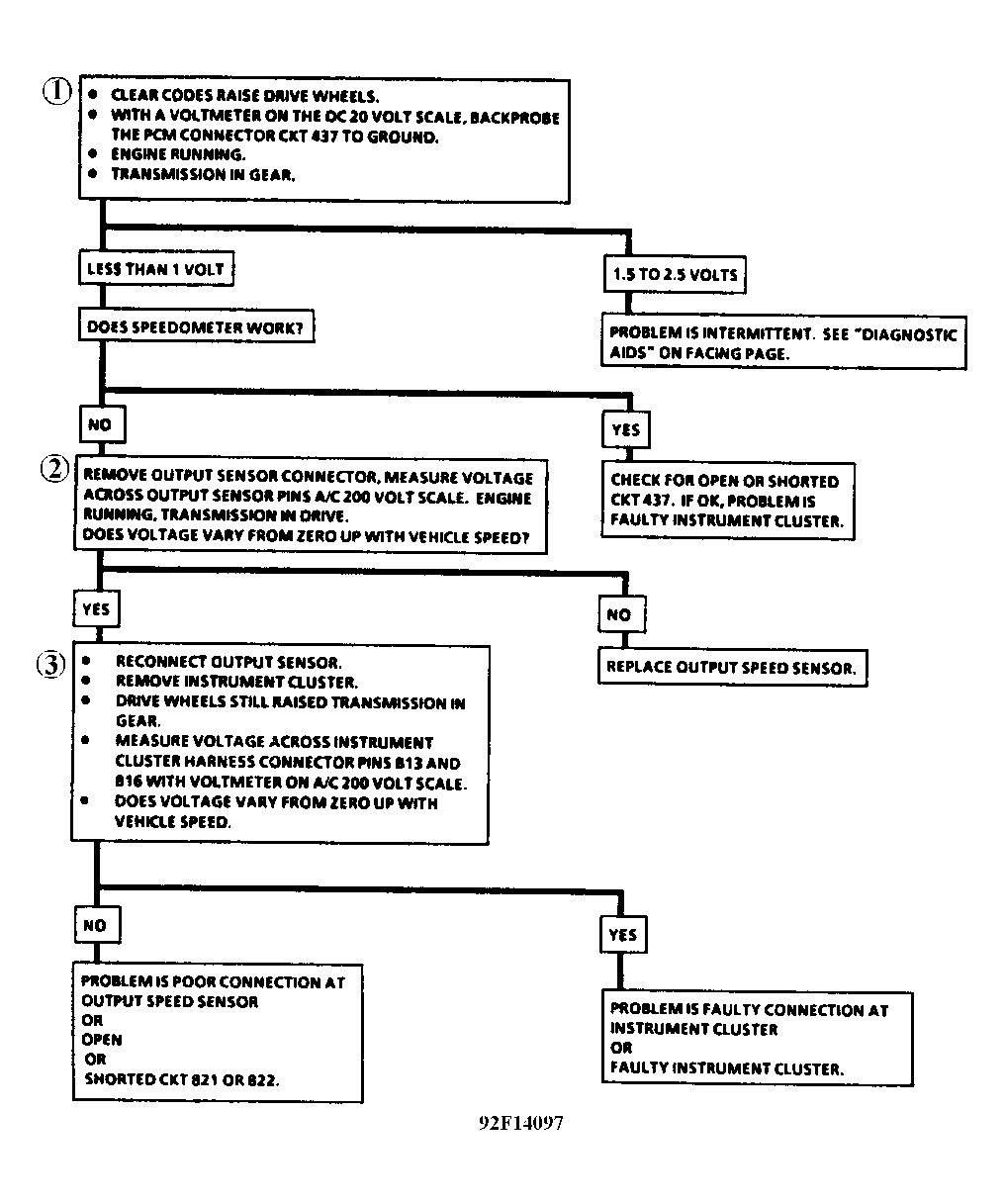

Fig 1: Code 24 Troubleshooting Flow Chart (1991 2WD - "C" & "K" Series)
G92F14097Courtesy of GENERAL MOTORS CORP.
