Diagnostic Aids

If engine runs okay, check for faulty light bulb. Check for open circuit 419 or blown ALT fuse. A blown ALT fuse will also cause instrument panel-mounted warning lights not to work.

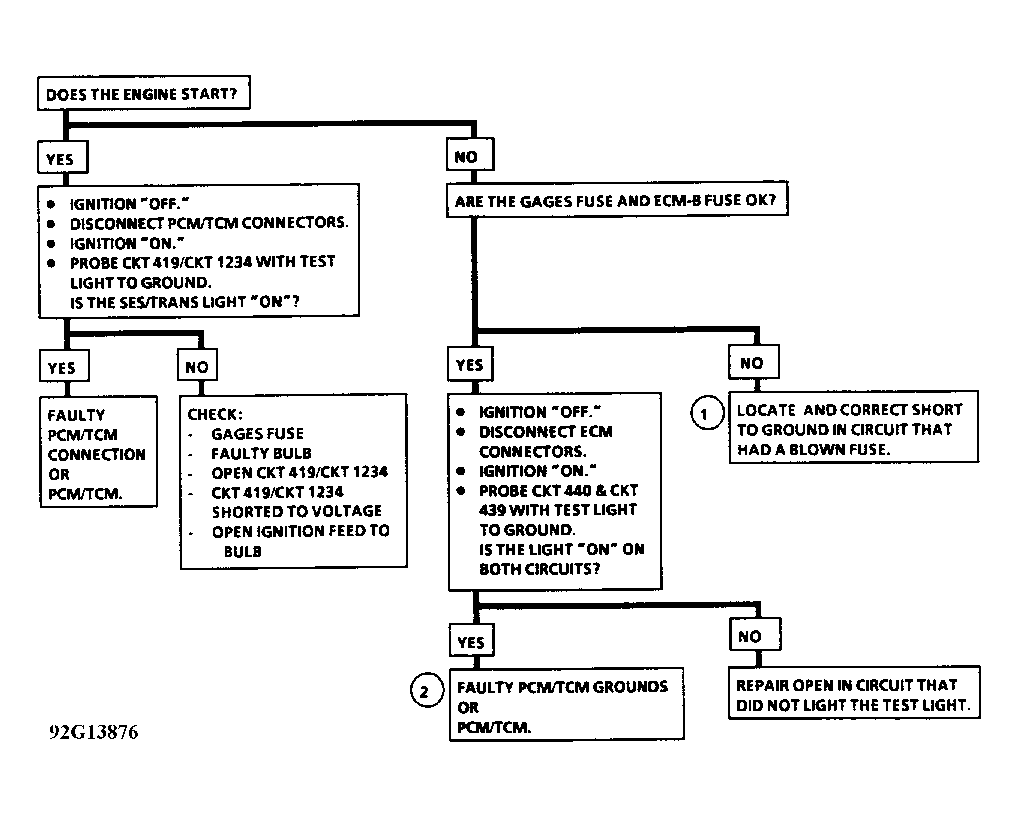

Fig 1: Chart A-1 Troubleshooting Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
