Automatic Transmission - Diagnosis - 4L80-E
>>
Component Test Charts (No Codes)
>>
Force Motor Circuit
>>
Diagnostic Aids
Diagnostic Aids
Check transmission pass-through connector and PCM/TCM for poor connections.

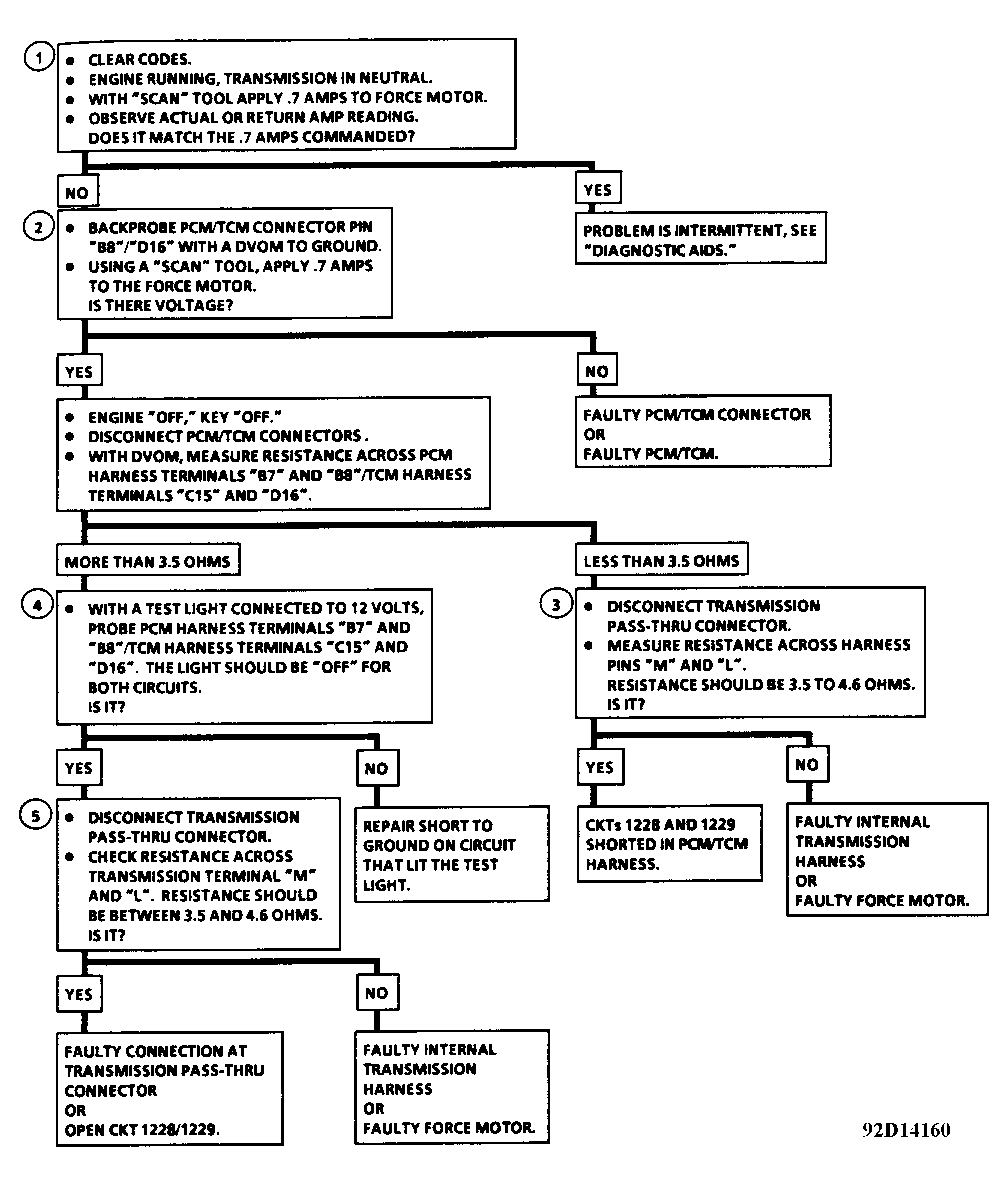

Fig 1: Force Motor Circuit Diagnostic Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
