Diagnostic Aids

Check for problem with one or more of following components:

• Fuse, power supply circuit, brake switch or wire before splice
• Wire or circuit problem between splice and PCM/TCM, poor connection to PCM/TCM or faulty PCM/TCM

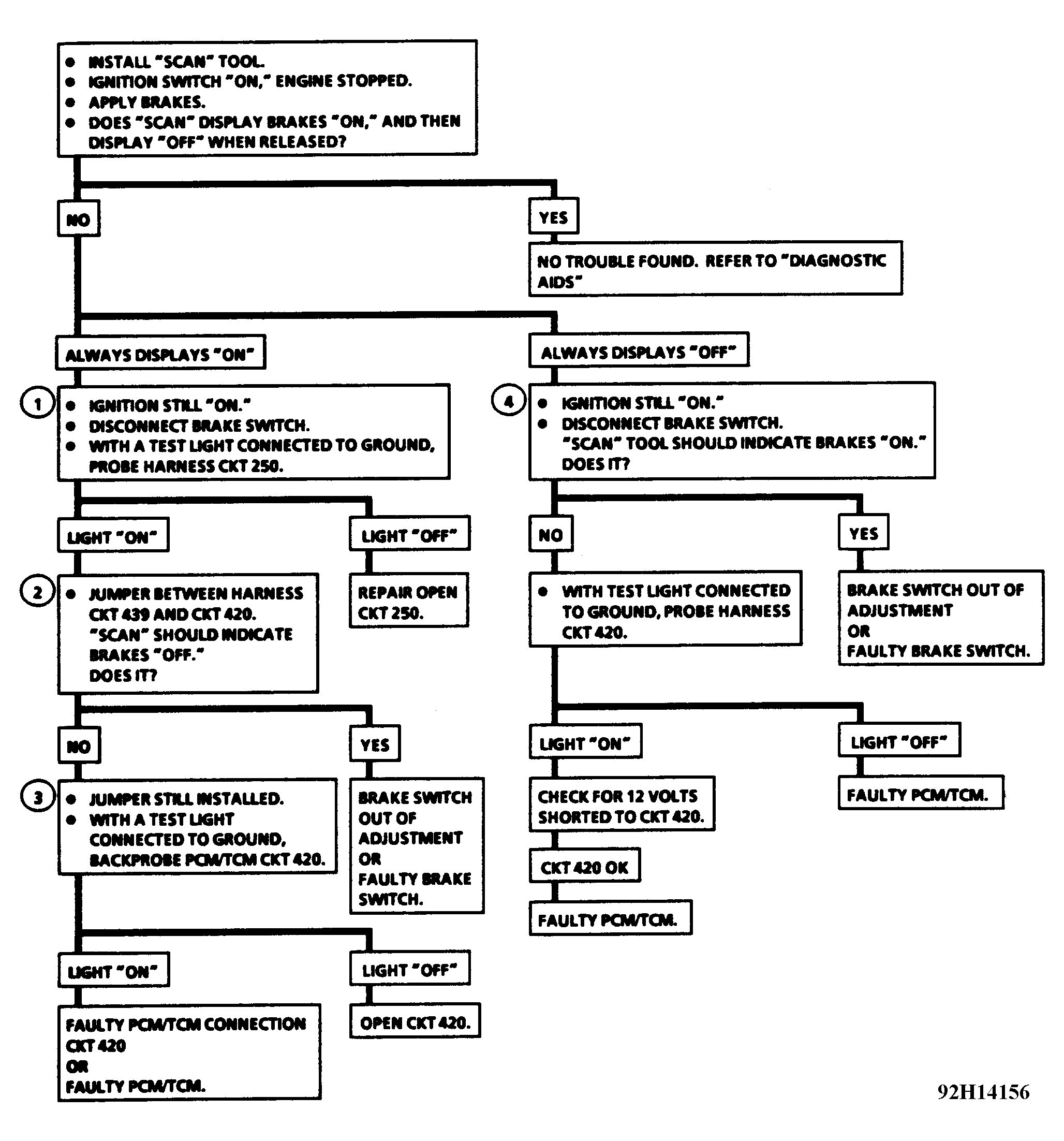

Fig 1: Brake Signal Circuit Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
