Stabilizer Shaft: Installation

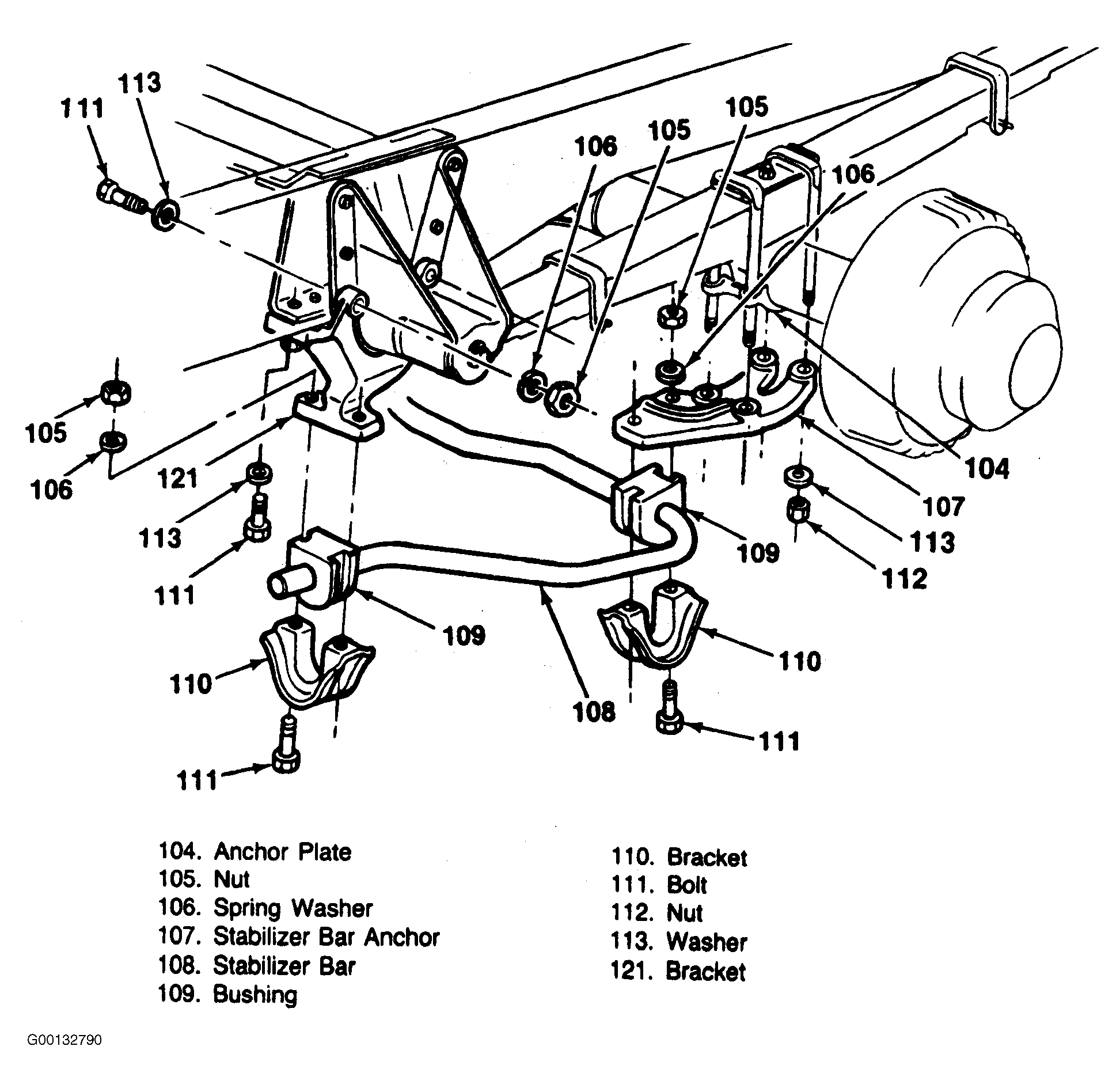

  1. Install insulators (109) to the stabilizer shaft (108). See Figure .
  2. Install stabilizer shaft (108) to the anchor plates (107).
  3. Install clamps (110), bolts (111), washers (106), and nuts (105). Tighten the nuts (105) to 30 ft lbs. (41 N.m).
  4. Install the stabilizer shaft (108) to the frame. Route the parking brake cable over the stabilizer shaft.
  5. Install the clamp (110), bolts (111), washers (106), and nuts (105). Tighten the nuts (105) to 30 ft lbs. (41 N.m).
  6. Lower vehicle.
